Bobcat CT2025 MST vs Bobcat CT1025 | Side-by-side comparison | ITC Resource Center
Compare Tractors

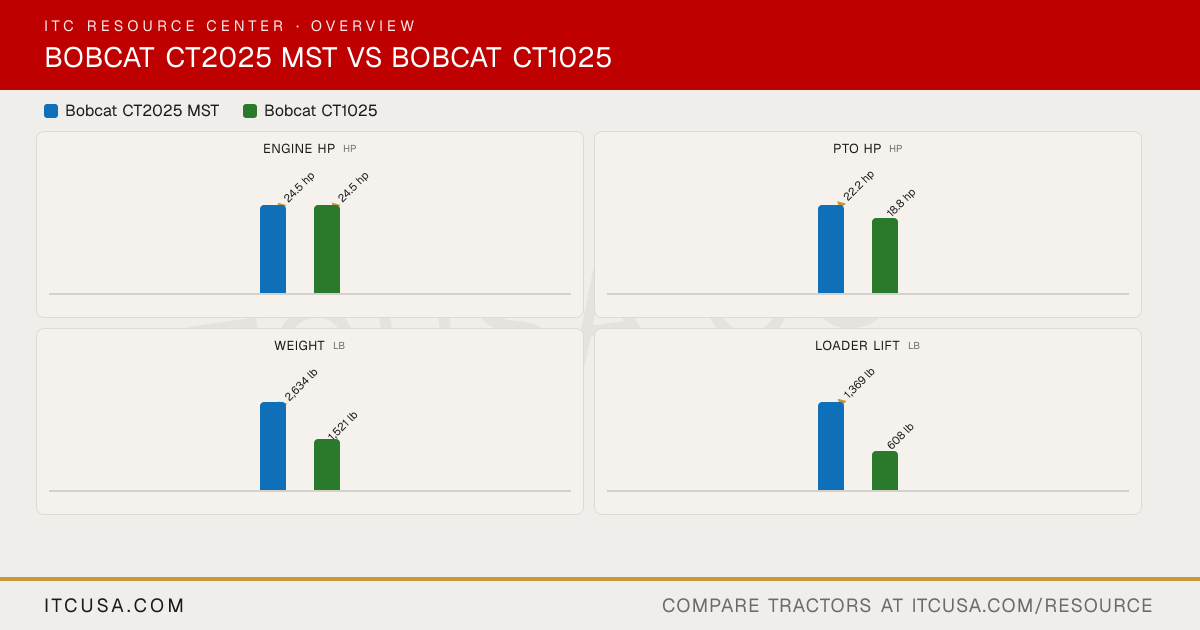

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2025 MST
BobcatCT1025
Engine Manufacturer
Daedong
Daedong
Engine Model
3A165LWM
3C100LFH-U1
Engine Type
Diesel
Diesel
No. of Cylinders
3
3
Displacement
100 in³
61.5 in³
Rated Engine Speed
2400 rpm
3200 rpm
Engine Power (Gross)
24.5 hp
24.5 hp
PTO Power
22.2 hp
18.8 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Dry type, replaceable
Dry type, replaceable
Fuel System
Indirect injection (IDI)
Indirect injection (IDI)
Alternator
75 A, 12 V
50 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
6.9 gpm
Not Published
Steering Flow
4.5 gpm
Not Published
Total Hydraulic Flow
11.4 gpm
7.2 gpm
Overall Hydraulic Pump Flow
11.4 gpm
7.2 gpm
Hydraulic System Type
Not Published
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None (rear hydraulics optional)
None (rear hydraulics optional)
No. of Optional Remote Valves
2 pairs
1 pair
Fuel Tank Capacity
9.0 gal
6.7 gal
Coolant Capacity
3.0 qt
Not Published
Crankcase Capacity
6.1 qt
4.0 qt
Transmission / Hydraulic System Capacity
5.8 gal
3.4 gal
Front Axle Fluid Capacity
6.3 qt
2.1 qt
PTO Type
Live
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional: 1976 rpm
Standard: 2200 rpm
Category, 3-Point Hitch
Category 1
Category 1 Limited
Hitch Lift Capacity
2271 lb
1576 lb
Hitch Lift Capacity (at 24”)
1631 lb
700 lb
Lift Control Type
Hydraulic Position Control System
Hydraulic Position Control System
Transmission Type
9F x 3R Manual
2-Range HST
No. of Speeds
9 forward, 3 reverse
Infinite forward and reverse (2-range)
Max Travel Speed (Forward)
9.2 mph
11.1 mph
Max Travel Speed (Reverse)
6 mph
7.6 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet multi-disc
Wet multi-disc
Seat Suspension & Adjustability
Adjustable seat (standard)
Adjustable seat (standard)
Front Axle Type
Four-wheel drive (standard)
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1433 lb
Not Published
Overall Length with 3-Point Hitch
120.9 in
99.3 in
Overall Width
62.4 in
45.7 in
Wheelbase
65.7 in
55.1 in
Ground Clearance
11.7 in
6.3 in
Min. Turn Radius without Brakes
96.5 in (with brake applied)
100.0 in (with brake applied)
Height to Top of ROPS
92.2 in
87.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
2634 lb
1521 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
7-16
18x8.5-10
R1 Agricultural - Rear
11.4-24
26x12.00-12
R3 Turf - Front
27x8.5-15
18x8.5-10
R3 Turf - Rear
41x14-20
26x12.00-12
R4 Industrial - Front
25x8.5-14
18x8.5-10
R4 Industrial - Rear
15-19.5
26x12.00-12
Quick Attach Loader System
Standard quick attach mounting system
Standard quick attach mounting system
Loader Model
FL7
FL6
Loader Lift Height
95.1 in
71.9 in
Loader Lift Capacity (Full Height)
1369 lb
608 lb
Loader Breakout Force
2575 lb
1554 lb
Warranty Length & Coverage
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
