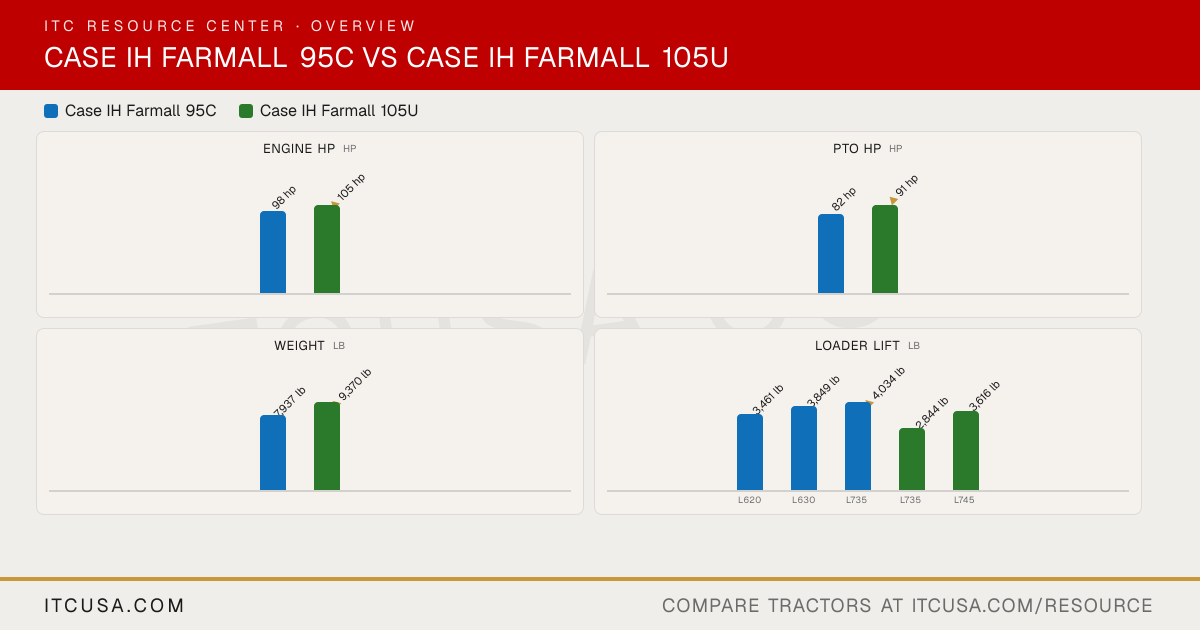

▶ EngineEngine Manufacturer FPT FPT Engine Model F5D Not Published Engine Type Turbocharged and intercooled 4-cylinder diesel 4-cylinder diesel, electronic high-pressure common rail No. of Cylinders 4 4 Displacement 207 in³ 207 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 98 hp 105 hp PTO Power 82 hp 91 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual dry element Not Published Fuel System Electronic high-pressure common rail direct injection Electronic high-pressure common rail Alternator 120 A 120 A ▶ HydraulicsPump Type Dual engine-driven pumps (open center) Not Published Implement Flow 12.5 gpm (16.9 gpm optional) 17.2 gpm (22.2 gpm optional) Steering Flow 7.3 gpm 10 gpm (11.4 gpm optional) Total Hydraulic Flow 19.8 gpm (12.5 + 7.3, computed) 27.2 gpm (17.2 + 10, computed) Overall Hydraulic Pump Flow 19.8 gpm (12.5 + 7.3, computed) 27.2 gpm (17.2 + 10, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 (3rd remote available through Parts Division) 3 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 37 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent, mechanical engagement Independent PTO Rear 540/1000 (base); 540 (optional) Not Published Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (ball ends convert to Category I) Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5,620 lb 6,393 lb Lift Control Type Single-lever position control with draft-sensing top link Electronic draft control (EDC) with rear fender switch ▶ Transmission & DrivetrainTransmission Type Not Published Not Published No. of Speeds 12F/12R (20F/12R or 20F/20R with creeper optional) 12F/12R (20F/20R or 24F/24R optional) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet disc, electro-hydraulic power shuttle Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet disc (mechanical on ROPS, hydraulic on cab) Hydraulic wet disc Seat Suspension & Adjustability Air suspension seat with 15-degree swivel (optional, cab) Heated air suspension seat with 15-degree swivel (optional) Front Axle Type 2WD or MFD (mechanical front drive) MFD (four-wheel drive) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 149 in (MFD cab, 16.9R-34 rear tires) 164 in (16.9R-34 rear tires) Overall Width 83 in 75 in (minimum) Wheelbase 89 in (MFD) 92.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 100 in 103 in (16.9R-34 rear tires) ▶ WeightTractor Weight (Base) 7,937 lb (MFD cab, 16.9R-34 rear tires) 9,370 lb (cab, MFD, 16.9R-34 rear tires) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published R1 agricultural; 16.9R-34 rear reference tire; 38 in rear tires available R1 Agricultural - Front Not Published 14.9R24 R1 Agricultural - Rear 16.9R-34 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer-style quick attach (hydraulic coupler) Quick-Latch loader mounting with Quick-Attach faceplate Loader Model L620; L630; L735 L735 (NSL or MSL); L745 (NSL or MSL) Loader Lift Height L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL); L735: 137 in L735: 135 in (11 ft 3 in); L745: 146.75 in (12 ft 2.75 in) Loader Lift Capacity (Full Height) L620: 3,461 lb (NSL) / 3,573 lb (MSL); L630: 3,849 lb (NSL) / 4,204 lb (MSL); L735: 4,034 lb (NSL) / 3,505 lb (MSL) L735: 2,844 lb (NSL) / 2,954 lb (MSL); L745: 3,616 lb (NSL) / 3,814 lb (MSL) (at 31.5 in forward of pivot pin, max height) Loader Breakout Force L620: 5,530 lb (NSL) / 5,483 lb (MSL); L630: 6,649 lb (NSL) / 6,767 lb (MSL); L735: 4,960 lb (NSL) / 4,122 lb (MSL) L735: 2,976 lb (NSL) / 3,285 lb (MSL); L745: 3,858 lb (NSL) / 4,254 lb (MSL) (boom breakout at 31.5 in) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
