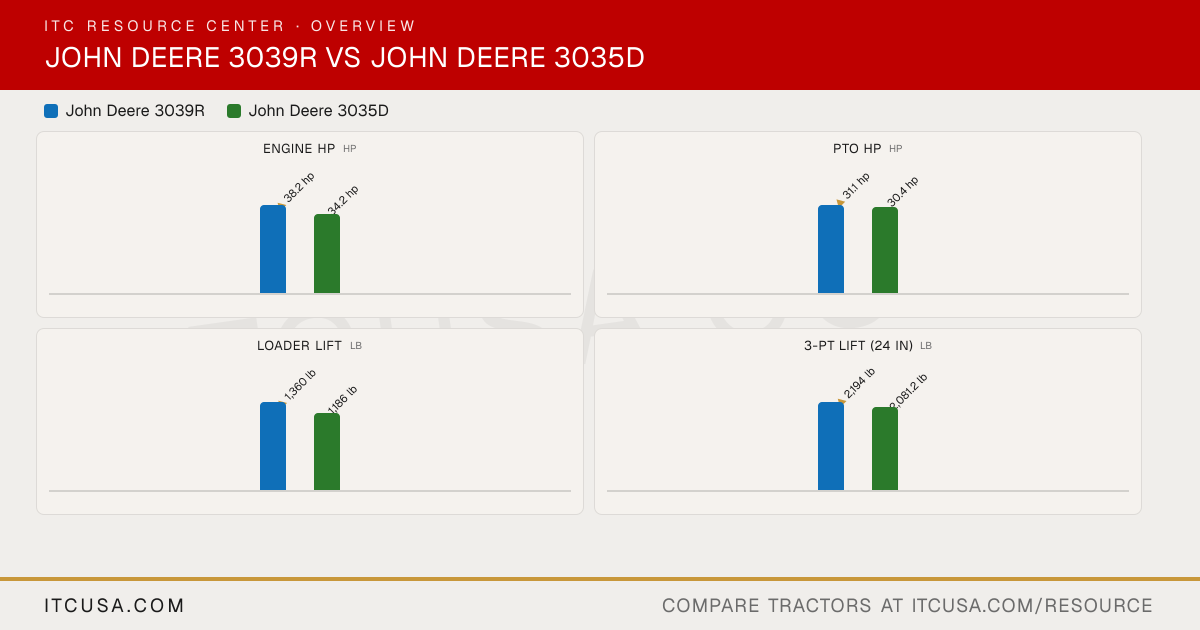

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV86CT-MJT 3TNV88C-KJPT Engine Type Diesel, turbocharged 4-cycle, inline, water-cooled diesel, naturally aspirated No. of Cylinders 3 3 Displacement 97.6 in³ 100.1 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 38.2 hp 34.2 hp PTO Power 31.1 hp 30.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water pump Liquid Air Cleaner Dry type with safety element Dual element Fuel System High pressure common rail direct injection (HPCR) Direct injection Alternator 75 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston Two single-section external gear pumps, one each side of engine timing-gear cover Implement Flow 8.6 gpm 4.8 gpm Steering Flow 5.9 gpm 3.6 gpm Total Hydraulic Flow 14.4 gpm Not Published Overall Hydraulic Pump Flow 14.4 gpm 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 6 rear remotes Up to two (optional) ▶ Fluid CapacityFuel Tank Capacity Open station (OOS): 13.5 gal; Cab: 11.8 gal 10.0 gal Coolant Capacity Open station (OOS): 1.4 gal; Cab: 1.9 gal 1.2 gal Crankcase Capacity 1.1 gal 1.1 gal Transmission / Hydraulic System Capacity 6.8 gal 9.2 gal Front Axle Fluid Capacity 1.3 gal 1.0 gal ▶ PTO & HitchPTO Type Independent Mechanical control; transmission clutch; wet disk brake (mid/rear PTO) PTO Rear 540 rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Optional (eHydro only): 2100 rpm Not Published Category, 3-Point Hitch Limited Category I Category I Hitch Lift Capacity 2530 lb at hitch ball Not Published Hitch Lift Capacity (at 24”) 2,194 lb at 24 in behind link arms 2081.2 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 3-range hydrostatic (eHydro) 8F/8R synchromesh shuttle shift gear transmission No. of Speeds Infinite / 3 range 8F/8R Max Travel Speed (Forward) 18.50 mph Not Published Max Travel Speed (Reverse) 18.50 mph Not Published Clutch Not Published Single dry traction clutch Differential Lock & Limited Slip Options Differential lock (traction assist); limited slip differential Differential lock: Yes; limited slip: Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disk Wet disk Seat Suspension & Adjustability Scissor-link suspension seat Not Published Front Axle Type Mechanical front wheel drive (MFWD) MFWD (4WD) Front Axle Rating 3196 lb 1940 lb Drawbar Capacity 899 lbf 1102 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.2 in 111.2 in Overall Width 69.1 in 57.3 in Wheelbase 68.0 in 62.6 in Ground Clearance 12.2 in 13.0 in Min. Turn Radius without Brakes 8.8 ft (2.68 m, MFWD off) 6.9 ft (with brakes) (with brake applied) Height to Top of ROPS 93.3 in Not Published Height to Top of ROPS (folded) 72.0 in Not Published Height to Top of Cab Model 85.0 in Not Published ▶ WeightTractor Weight (Base) 2900 lb 3166 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 27X8.50-15 or 25/10.5LLX15 27X8.5-15 R3 Turf - Rear 41X14-20 or 41X18LL-16.1 41X14-20 R4 Industrial - Front 25X8.5-14 or 27X8.5-15 25X8.5-14 R4 Industrial - Rear 15-19.5 or 43X16-20 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Quik-Park mounting system Quick-change attachment carrier Loader Model H160 D160 Loader Lift Height 90 in 84.0 in Loader Lift Capacity (Full Height) 1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot 1,186 lb Loader Breakout Force 2,855 lb at pivot; 2,032 lb @ 19.7 in 1,704 lb ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
