Which has more horsepower, the John Deere 3035D or the John Deere 3039R?

The John Deere 3039R leads on engine hp at 38.2 hp hp, compared to 34.2 hp hp for the John Deere 3035D.

Which has more PTO horsepower, the John Deere 3035D or the John Deere 3039R?

The John Deere 3039R leads on pto hp at 31.1 hp hp, compared to 30.4 hp hp for the John Deere 3035D.

Which has more loader lift capacity, the John Deere 3035D or the John Deere 3039R?

The John Deere 3039R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the John Deere 3035D or the John Deere 3039R?

The John Deere 3039R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.

John Deere 3035D vs John Deere 3039R

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 3039R leads 6 categories to 1. Machine pages: John Deere 3035D and John Deere 3039R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3035D	John Deere 3039R
Engine HP (hp)	34.2 hp	▲ 38.2 hp
PTO HP (hp)	30.4 hp	▲ 31.1 hp
Loader Lift (lb)	1,186 lb	▲ 1,360 lb
3-Pt Lift (24 in) (lb)	2,081.2 lb	▲ 2,194 lb
Lift Height (in)	84 in	▲ 90 in
Breakout Force (lbf)	1,704 lbf	▲ 2,855 lbf
Hydraulic Flow (gpm)	▲ 10.3 gpm	9 gpm
Travel Speed (mph)	—	18.5 mph

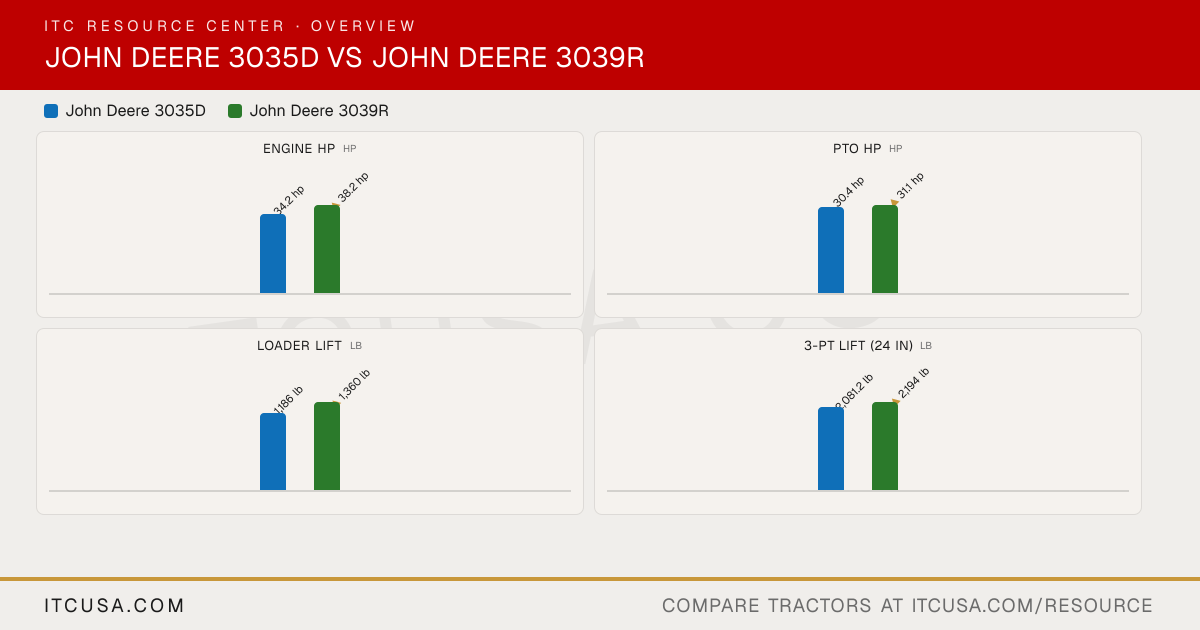

The headline numbers at a glance.

John Deere 3035DJohn Deere 3039R

Engine HPhp

34.2 hp

▲38.2 hp

PTO HPhp

30.4 hp

▲31.1 hp

Weightlb

—

Loader Liftlb

1,186 lb

▲1,360 lb

3-Pt Lift (24 in)lb

2,081.2 lb

▲2,194 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	John Deere3039R


PTO Power	30.4 hp	31.1 hp
Alternator	55 A, 12 V	75 A, 12 V
Air Cleaner	Dual element	Dry type with safety element (dual element)
Engine Type	Liquid-cooled diesel, naturally aspirated,	Diesel, turbocharged
Fuel System	High pressure common rail direct injection	High pressure common rail direct injection (HPCR)
Displacement	100.1 in³	97.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	2600 rpm
Cooling System Type	Liquid	Liquid-cooled
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	34.2 hp	38.2 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Single gear	Tandem gear
Steering Flow	4.4 gpm	4.4 gpm
Implement Flow	5.9 gpm	4.6 gpm
Total Hydraulic Flow	10.3 gpm	9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.3 gpm	9 gpm
No. of Optional Remote Valves	Up to two (optional)	Up to 6 rear remotes
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm at 2400 rpm engine	540 rpm
PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	2,530 lb at hitch ball
Mid-PTO Availability	Not Published	Optional (eHydro only): 2100 rpm
Category, 3-Point Hitch	Category 1	Limited Category 1
Hitch Lift Capacity (at 24”)	2081.2 lb	2,194 lb at 24 in behind link arms

R3 Turf - Rear	41X14-20	41X14-20 or 41X18LL-16.1
R3 Turf - Front	27X8.5-15	27X8.50-15 or 25/10.5LLX15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5	15-19.5 or 43X16-20
R4 Industrial - Front	25X8.5-14	25X8.5-14 or 27X8.5-15
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7-14

Coolant Capacity	1.2 gal	Open station (OOS): 1.4 gal; Cab: 1.9 gal
Crankcase Capacity	1.1 gal	1.1 gal (with filter)
Fuel Tank Capacity	10.0 gal	Open station (OOS): 13.5 gal; Cab: 11.8 gal
Front Axle Fluid Capacity	1.0 gal	1.3 gal
Transmission / Hydraulic System Capacity	9.2 gal	6.8 gal

Loader Lift Height	84.0 in	90 in
Loader Breakout Force	1,704 lb	2,855 lb at pivot; 2,032 lb @ 19.7 in
Quick Attach Loader System	Quick-change attachment carrier	Quik-Park mounting system
Loader Lift Capacity (Full Height)	1,186 lb	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot

Clutch	Single dry traction clutch	Not Published
No. of Speeds	8F/8R	Infinite / 3 range
Transmission Type	8F/8R synchromesh shuttle shift gear transmission	3-range hydrostatic (eHydro)
Max Travel Speed (Forward)	Not Published	18.50 mph
Max Travel Speed (Reverse)	Not Published	18.50 mph
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Differential lock (traction assist); limited slip differential

Brakes	Wet disk	Wet disk
Steering	Power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFWD (4WD)	Mechanical front wheel drive (MFWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	1940 lb	3,196 lb
Seat Suspension & Adjustability	Not Published	Scissor-link suspension seat

Wheelbase	62 in	68 in
Overall Width	57.3 in [at 44.5 in rear tread]	69.1 in
Ground Clearance	13.0 in minimum	12.2 in
Height to Top of ROPS	Not Published	93.3 in
Height to Top of Cab Model	Not Applicable	85 in
Height to Top of ROPS (folded)	Not Published	72 in
Min. Turn Radius without Brakes	Not Published	8.8 ft (2.68 m) (MFWD off)
Overall Length with 3-Point Hitch	Not Published	120.2 in

John Deere 3035D vs John Deere 3039R: Quick Answers

Which has more horsepower, the John Deere 3035D or the John Deere 3039R?: The John Deere 3039R leads on engine hp at 38.2 hp hp, compared to 34.2 hp hp for the John Deere 3035D.
Which has more PTO horsepower, the John Deere 3035D or the John Deere 3039R?: The John Deere 3039R leads on pto hp at 31.1 hp hp, compared to 30.4 hp hp for the John Deere 3035D.
Which has more loader lift capacity, the John Deere 3035D or the John Deere 3039R?: The John Deere 3039R leads on loader lift at 1,360 lb lb, compared to 1,186 lb lb for the John Deere 3035D.
Which has more three-point hitch lift capacity, the John Deere 3035D or the John Deere 3039R?: The John Deere 3039R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 2,081.2 lb lb for the John Deere 3035D.
