Bad Boy Tractors 4035 vs John Deere 3035D

Across 8 measurable specs, the Bad Boy Tractors 4035 leads 7 categories to 1. Machine pages: Bad Boy Tractors 4035 and John Deere 3035D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

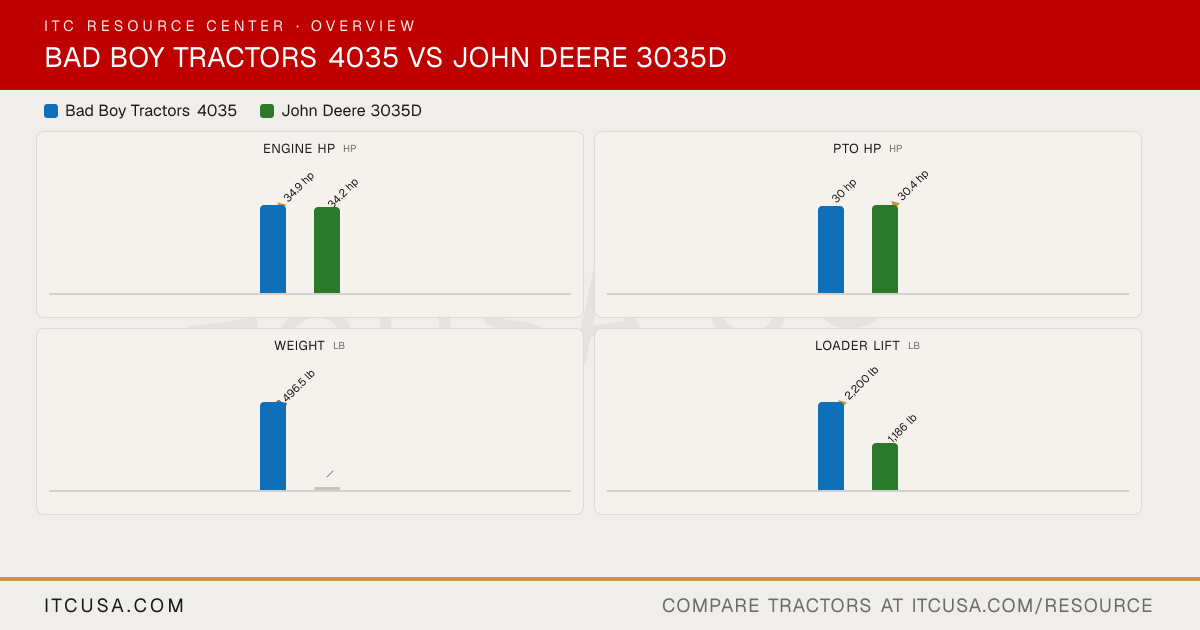

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	John Deere3035D

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTR_4	3TNV88C-KJPT
Engine Type	Vertical, 4-stroke, water-cooled diesel	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	104.5 in³	100.2 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	35 hp	34.2 hp
PTO Power	29.5 hp	30.4 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Direct injection
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Not Published	2 single-section external gear pumps, 1 on each side of the engine timing-gear cover
Implement Flow	8.2 gpm	5.9 gpm
Steering Flow	4.4 gpm	4.4 gpm
Total Hydraulic Flow	12.6 gpm	10.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	10.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	Up to 2	Up to two (optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	9.7 gal
Coolant Capacity	1.32 gal	1.2 gal
Crankcase Capacity	1.14 gal	1.1 gal
Transmission / Hydraulic System Capacity	9.77 gal	9.2 gal
Front Axle Fluid Capacity	1.69 gal	1.0 gal
▶PTO & Hitch
PTO Type	Independent	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)
PTO Rear	540 rpm	540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,670 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	3 range (HST)	8F/8R
Max Travel Speed (Forward)	19.08 mph	Not Published
Max Travel Speed (Reverse)	19.08 mph	Not Published
Clutch	None (HST)	Single dry traction clutch
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock: Yes
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	MFWD (4WD)
Front Axle Rating	Not Published	1,940 lb
Drawbar Capacity	Not Published	1,102 lb (static vertical load)
▶Dimensions & Maneuverability
Overall Width	56.7 in	57.3 in
Wheelbase	65.7 in	62 in
Ground Clearance	13.1 in	14 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	96.85 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	134.88 in	111.2 in
▶Weight
Tractor Weight (Base)	3,164 lb	2,800 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	27X8.5-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	28x8.50-15	25X8.5-14
R4 Industrial - Rear	43x16.00-20	15-19.5
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick-change attachment carrier
Loader Model	BBL400	300E
Loader Lift Height	104 in	84 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,186 lb (at pivot pin)
Loader Breakout Force	3,660 lb	1,704 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 vs John Deere 3035D: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the John Deere 3035D?

The Bad Boy Tractors 4035 leads on engine hp at 35 hp hp, compared to 34.2 hp hp for the John Deere 3035D.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the John Deere 3035D?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the John Deere 3035D?

The Bad Boy Tractors 4035 leads on weight at 3,164 lb lb, compared to 2,800 lb lb for the John Deere 3035D.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the John Deere 3035D?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the John Deere 3035D?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,670 lb lb for the John Deere 3035D.
