Bad Boy Tractors 3026 vs John Deere 3035D

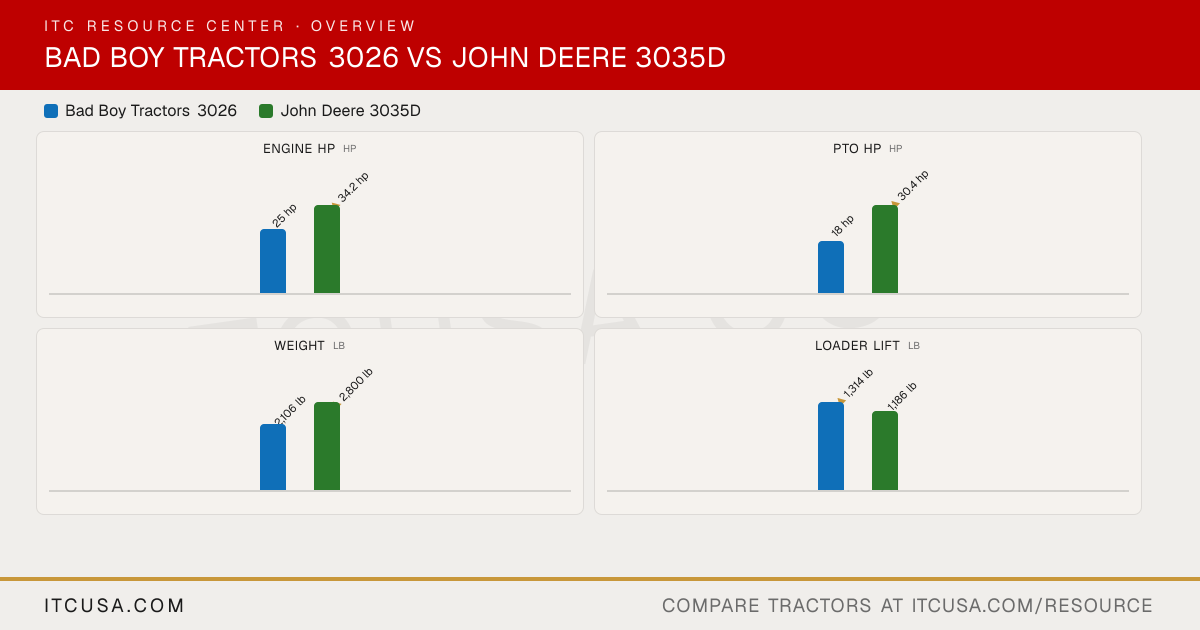

Across 8 measurable specs, the John Deere 3035D leads 5 categories to 3. Machine pages: Bad Boy Tractors 3026 and John Deere 3035D.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	John Deere3035D

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1100N2	3TNV88C-KJPT
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	4-cycle, inline, water-cooled diesel, naturally aspirated
No. of Cylinders	3	3
Displacement	71.7 in³	100.2 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	25 hp	34.2 hp
PTO Power	18 hp	30.4 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid
Air Cleaner	Dry element	Dry
Fuel System	Indirect injection (swirl chamber)	Direct injection
Alternator	50 A, 12 V	55 A, 12 V
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	2 single-section external gear pumps, 1 on each side of the engine timing-gear cover
Implement Flow	4.3 gpm	5.9 gpm
Steering Flow	3.1 gpm	4.4 gpm
Total Hydraulic Flow	7.4 gpm	10.3 gpm
Overall Hydraulic Pump Flow	7.7 gpm	10.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	None
No. of Optional Remote Valves	1	Up to two (optional)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	9.7 gal
Coolant Capacity	1.21 gal	1.2 gal
Crankcase Capacity	0.79 gal	1.1 gal
Transmission / Hydraulic System Capacity	2.90 gal	9.2 gal
Front Axle Fluid Capacity	0.79 gal	1.0 gal
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)
PTO Rear	540 / 960 rpm	540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability	Optional, 2,500 rpm	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	1,670 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	8F/8R synchromesh shuttle shift gear transmission
No. of Speeds	3 range (L/M/H)	8F/8R
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Single dry traction clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock: Yes
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disk
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	MFWD (4WD)
Front Axle Rating	Not Published	1,940 lb
Drawbar Capacity	Not Published	1,102 lb (static vertical load)
▶Dimensions & Maneuverability
Overall Width	53.8 in	57.3 in
Wheelbase	65.7 in	62 in
Ground Clearance	16.4 in	14 in
Min. Turn Radius without Brakes	Not Published	6.9 ft (with brake applied)
Height to Top of ROPS	91.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	110 in	111.2 in
▶Weight
Tractor Weight (Base)	2,106 lb	2,800 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	7-16 6PR	7-14
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	27X8.5-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	25x8.50-14	25X8.5-14
R4 Industrial - Rear	14x17.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick-change attachment carrier
Loader Model	BBL300	300E
Loader Lift Height	86 in	84 in
Loader Lift Capacity (Full Height)	1,314 lb	1,186 lb (at pivot pin)
Loader Breakout Force	1,960 lbf	1,704 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 3026 vs John Deere 3035D: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the John Deere 3035D?

The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the John Deere 3035D?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the John Deere 3035D?

The John Deere 3035D leads on weight at 2,800 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the John Deere 3035D?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,186 lb lb for the John Deere 3035D.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the John Deere 3035D?

The John Deere 3035D leads on 3-pt lift (24 in) at 1,670 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
