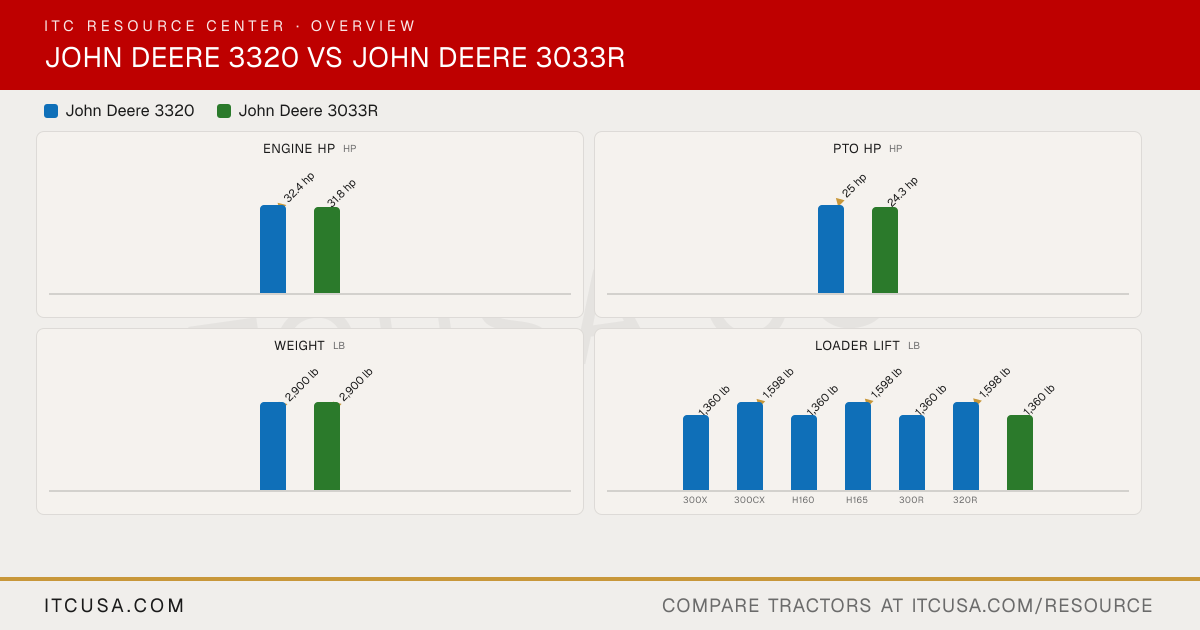

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV88-BMJT 3TNV88C-MJT Engine Type 3-cylinder liquid-cooled diesel, direct injection Diesel, turbocharged No. of Cylinders 3 3 Displacement 100.1 in³ 97.6 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 32.4 hp 31.8 hp PTO Power 25 hp 24.3 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water pump Air Cleaner Dry type with safety element Dry type with safety element Fuel System Direct injection, self bleeding, in-line fuel pump with electric shutoff High pressure common rail direct injection (HPCR) Alternator 40 A 75 A, 12 V ▶ HydraulicsPump Type Dual tandem gear pump Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston Implement Flow 8.6 gpm 8.6 gpm Steering Flow 5.3 gpm 5.9 gpm Total Hydraulic Flow 13.9 gpm 14.4 gpm Overall Hydraulic Pump Flow 13.9 gpm 14.4 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Up to 6 rear remotes ▶ Fluid CapacityFuel Tank Capacity 13.5 gal (open station); 11.8 gal (cab) Open station: 13.5 gal; Cab: 11.8 gal Coolant Capacity 5.6 qt (open station); 7.4 qt (cab) 1.4 gal Crankcase Capacity 5.1 qt 1.1 gal Transmission / Hydraulic System Capacity 6.8 gal (eHydro); 6.3 gal (PowrReverser) 6.8 gal Front Axle Fluid Capacity 1.2 gal 1.3 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2100 rpm Optional (2100 rpm) Category, 3-Point Hitch Category 1 Limited Category I Hitch Lift Capacity Not Published 2530 lb at hitch ball Hitch Lift Capacity (at 24”) 2200 lb 2,194 lb at 24 in behind link arms Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type eHydro 3-range hydrostatic (4WD); PowrReverser 12F/12R power shuttle (4WD) three-range, infinitely variable No. of Speeds Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser) infinite in 3 ranges Max Travel Speed (Forward) 19 mph (eHydro); 16.4 mph (PowrReverser) 18.50 mph Max Travel Speed (Reverse) 19 mph (eHydro); 16.4 mph (PowrReverser) 18.50 mph Clutch Multiple stage wet disc, 4.4 in (PowrReverser) Not Applicable Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS; cab optional; MFWD standard Foldable ROPS; cab or open station configurations available Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disk Multi-plate wet disk Seat Suspension & Adjustability Not Published Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments Front Axle Type Mechanical front wheel drive (MFWD), standard, all ranges Mechanical front wheel drive (MFWD) Front Axle Rating 1587 to 3197 lb 3196 lb Drawbar Capacity 562 lb 899 lbf ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.2 in 120.2 in Overall Width 52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires) 69.1 in Wheelbase 68 in 68.0 in Ground Clearance Not Published 12.2 in Min. Turn Radius without Brakes Not Published 8.8 ft (2.68 m, MFWD off) Height to Top of ROPS 93.3 in 93.3 in Height to Top of ROPS (folded) Not Published 72.0 in Height to Top of Cab Model 89.4 in 85.0 in ▶ WeightTractor Weight (Base) 2900 lb (open station); 3570 lb (cab) 2900 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 bar tread, R3 turf, R4 industrial and golf tires available on all models R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7.00-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 27x8.50-15 27X8.50-15 R3 Turf - Rear 41x14.00-20 41X14-20 R4 Industrial - Front 25x8.50-14 or 27x8.50-15 25X8.5-14 or 27X8.5-15 R4 Industrial - Rear 43x16.00-20 or 15.00-19.5 15-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System John Deere quick-attach (Quik-Park); skid-steer style carrier optional on 300CX Quik-Park mounting system Loader Model 300X; 300CX; H160; H165; 300R; 320R H160 Loader Lift Height 300X: 90 in; 300CX: 102 in; H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in 90 in Loader Lift Capacity (Full Height) 300X: 1360 lb; 300CX: 1598 lb; H160: 1360 lb; H165: 1598 lb; 300R: 1360 lb; 320R: 1598 lb (to maximum height at pivot pin) 1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot Loader Breakout Force 300X: 2855 lbf; 300CX: 3327 lbf; H160: 2855 lbf; H165: 3327 lbf; 300R: 2855 lbf; 320R: 3327 lbf (at pivot pin) 2,855 lb at pivot; 2,032 lb @ 19.7 in ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
