John Deere 3033R vs John Deere 3320
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the John Deere 3320 leads 7 categories to 1 (1 tied). Machine pages: John Deere 3033R and John Deere 3320.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

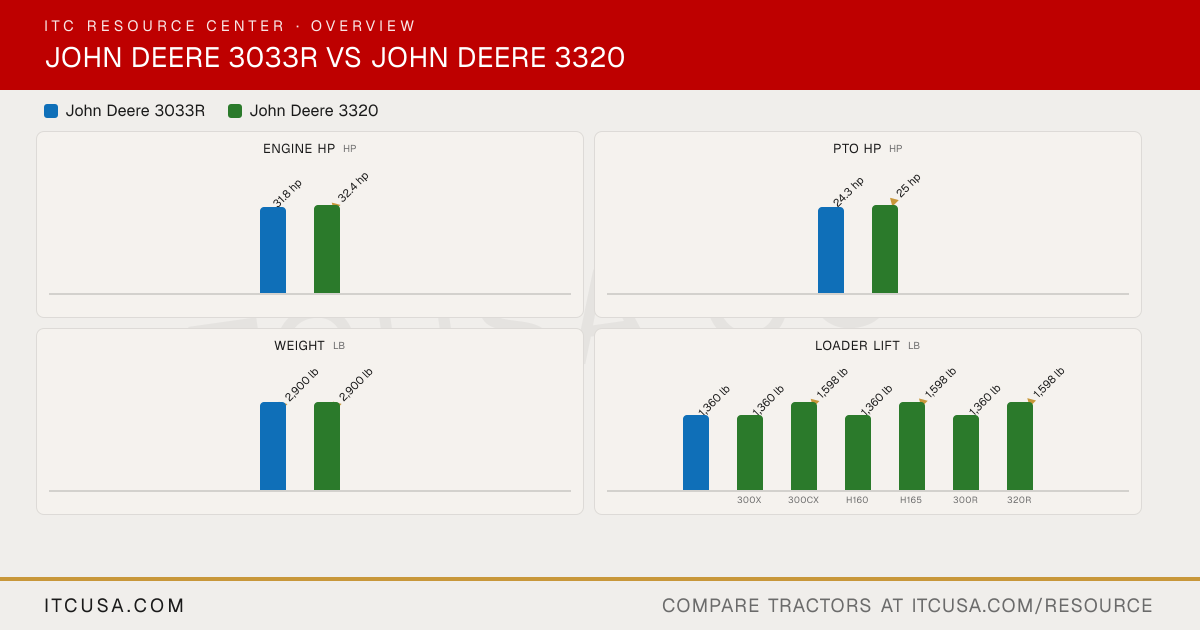

Category Verdict
| Spec | John Deere 3033R | John Deere 3320 |
|---|---|---|
| Engine HP (hp) | 31.8 hp | ▲ 32.4 hp |
| PTO HP (hp) | 24.3 hp | ▲ 25 hp |
| Weight (lb) | 2,900 lb | 2,900 lb |
| Loader Lift (lb) | 1,360 lb | ▲ 1,598 lb |
| 3-Pt Lift (24 in) (lb) | 2,194 lb | ▲ 2,200 lb |
| Lift Height (in) | 90 in | ▲ 102 in |
| Breakout Force (lbf) | 2,855 lbf | ▲ 3,327 lbf |
| Hydraulic Flow (gpm) | ▲ 14.4 gpm | 13.9 gpm |
| Travel Speed (mph) | 18.5 mph | ▲ 19 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3033R | John Deere3320 |
|---|
| Engine Manufacturer | Yanmar | Yanmar |
|---|---|---|
| Engine Model | 3TNV88C-MJT | 3TNV88-BMJT |
| Engine Type | Diesel, turbocharged | 3-cylinder liquid-cooled diesel, direct injection |
| No. of Cylinders | 3 | 3 |
| Displacement | 97.6 in³ | 100.1 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 31.8 hp | 32.4 hp |
| PTO Power | 24.3 hp | 25 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Water pump | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Dry type with safety element |
| Fuel System | High pressure common rail direct injection (HPCR) | Direct injection, self bleeding, in-line fuel pump with electric shutoff |
| Alternator | 75 A, 12 V | 40 A |
John Deere 3033R vs John Deere 3320: Quick Answers
- Which has more horsepower, the John Deere 3033R or the John Deere 3320?
- The John Deere 3320 leads on engine hp at 32.4 hp hp, compared to 31.8 hp hp for the John Deere 3033R.
- Which has more PTO horsepower, the John Deere 3033R or the John Deere 3320?
- The John Deere 3320 leads on pto hp at 25 hp hp, compared to 24.3 hp hp for the John Deere 3033R.
- Which is heavier, the John Deere 3033R or the John Deere 3320?
- They are effectively tied: both machines are rated at 2,900 lb lb for weight.
- Which has more loader lift capacity, the John Deere 3033R or the John Deere 3320?
- The John Deere 3320 leads on loader lift at 1,598 lb lb, compared to 1,360 lb lb for the John Deere 3033R.
- Which has more three-point hitch lift capacity, the John Deere 3033R or the John Deere 3320?
- The John Deere 3320 leads on 3-pt lift (24 in) at 2,200 lb lb, compared to 2,194 lb lb for the John Deere 3033R.
