Which has more horsepower, the Bad Boy Tractors 4035 or the John Deere 3033R?

The Bad Boy Tractors 4035 leads on engine hp at 34.9 hp hp, compared to 31.8 hp hp for the John Deere 3033R.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the John Deere 3033R?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 24.3 hp hp for the John Deere 3033R.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the John Deere 3033R?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,360 lb lb for the John Deere 3033R.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the John Deere 3033R?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,194 lb lb for the John Deere 3033R.

Bad Boy Tractors 4035 vs John Deere 3033R

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 4035 leads 7 categories to 1. Machine pages: Bad Boy Tractors 4035 and John Deere 3033R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	John Deere 3033R
Engine HP (hp)	▲ 34.9 hp	31.8 hp
PTO HP (hp)	▲ 30 hp	24.3 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,360 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	2,194 lb
Lift Height (in)	▲ 104 in	90 in
Breakout Force (lbf)	▲ 3,660 lbf	2,855 lbf
Hydraulic Flow (gpm)	12.6 gpm	▲ 14.4 gpm
Travel Speed (mph)	▲ 19.1 mph	18.5 mph

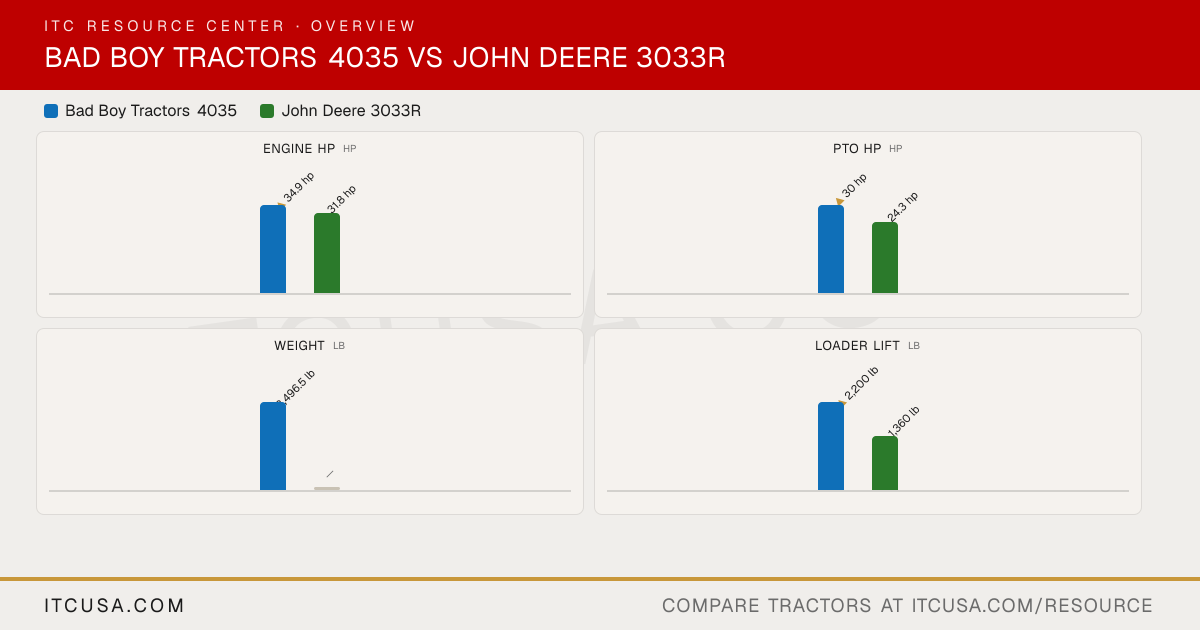

The headline numbers at a glance.

Bad Boy Tractors 4035John Deere 3033R

Engine HPhp

▲34.9 hp

31.8 hp

PTO HPhp

▲30 hp

24.3 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,360 lb

3-Pt Lift (24 in)lb

▲2,425 lb

2,194 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	John Deere3033R


PTO Power	30 hp	24.3 hp
Alternator	50 A, 12 V	75 A, 12 V
Air Cleaner	Not Published	Dry type with safety element (dual element)
Engine Type	3 Cylinder, Water-Cooled, Diesel	Diesel, turbocharged
Fuel System	Diesel fuel	High pressure common rail direct injection (HPCR)
Displacement	104.7 in³	97.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Liquid (water pump)
Engine Manufacturer	A1700N4-BUTC_4	Yanmar
Engine Power (Gross)	34.9 hp	31.8 hp @ 600 rpm
Engine Emissions Constraints	EPA Final Tier4	Tier 4

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Published

Warranty Length & Coverage	6-year powertrain warranty	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Not Published	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston
Steering Flow	4.4 gpm	5.9 gpm
Implement Flow	8.2 gpm	8.6 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	14.4 gpm
Hydraulic System Type	Open Center	Open center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	14.4 gpm
No. of Optional Remote Valves	Optional (up to 2)	Up to 6 rear remotes
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	2,530 lb at hitch ball
Mid-PTO Availability	Not Published	eHydro: Optional (2100 rpm); PowrReverser: Not applicable
Category, 3-Point Hitch	Cat 1	Category 1 (limited Category 1 in Operator Manual)
Hitch Lift Capacity (at 24”)	2,425 lb	2,194 lb at 24 in behind link arms

R3 Turf - Rear	Not Published	41X14-20
R3 Turf - Front	Not Published	27X8.50-15
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	15-19.5 or 43X16-20
R4 Industrial - Front	28X8.50-15	25X8.5-14 or 27X8.5-15
R1 Agricultural - Rear	12.4-24 6PR	11.2-24
R1 Agricultural - Front	8.0-16 4PR	7-14

Coolant Capacity	1.32 gal	Open station (OOS): 1.4 gal; Cab: 1.9 gal
Crankcase Capacity	1.14 gal	1.1 gal (with filter)
Fuel Tank Capacity	7.13 gal	Open station (OOS): 13.5 gal; Cab: 11.8 gal
Front Axle Fluid Capacity	Not Published	1.3 gal
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	6.8 gal

Loader Lift Height	104 in	90 in
Loader Breakout Force	3,660 lb	2,855 lb at pivot; 2,032 lb @ 19.7 in
Quick Attach Loader System	SSQA	Quik-Park mounting system
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot

Clutch	None (HST)	PowrReverser: Wet disk; eHydro: Not Applicable
No. of Speeds	3 Range	PowrReverser: 12F/12R; eHydro: infinite in 3 ranges
Transmission Type	HST (3-range)	PowrReverser: 12F/12R; eHydro: three-range, infinitely variable
Max Travel Speed (Forward)	19.08 mph (range C)	18.50 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	18.50 mph
Differential Lock & Limited Slip Options	Differential lock	Differential lock: Yes

Brakes	Wet multi-disc	Multi-plate wet disk
Steering	Fully hydraulic power steering	Hydrostatic power steering
Frame Type	Not Published	Foldable ROPS; cab or open station configurations available
Front Axle Type	Cast Iron	Mechanical front wheel drive (MFWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	3,196 lb (continuous)
Seat Suspension & Adjustability	Not Published	Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments

Wheelbase	65.7 in	68.0 in
Overall Width	56.7 in	69.1 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	12.2 in
Height to Top of ROPS	96.85 in	93.3 in
Height to Top of Cab Model	Not Applicable	85.0 in
Height to Top of ROPS (folded)	Not Published	72.0 in
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	134.88 in	120.2 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
