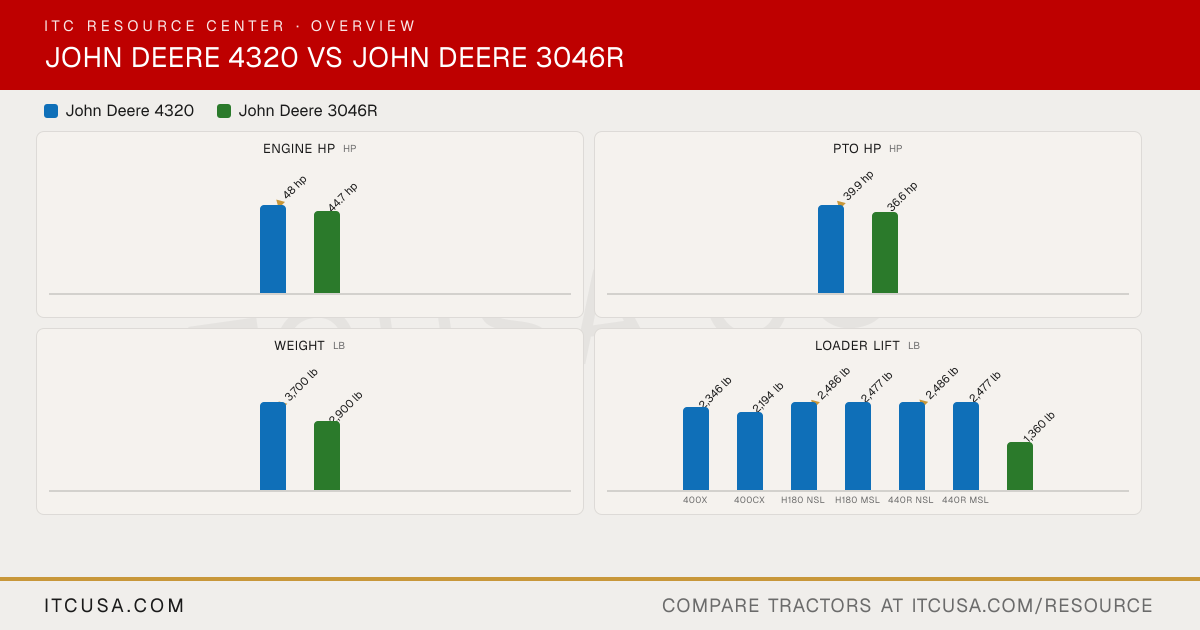

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Not Published
Steering
Power steering
Hydrostatic power steering
Brakes
Wet disk
Wet disk
Seat Suspension & Adjustability
Air ride seat optional
Not Published
Front Axle Type
Mechanical front wheel drive (MFWD), standard, all ranges
Mechanical front wheel drive (MFWD)
Front Axle Rating
3,528 lb
3,196 lb
Drawbar Capacity
1,103 lb
Not Published
Overall Width
65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
69.1 in
Wheelbase
71.5 in
68.0 in
Ground Clearance
Not Published
12.2 in
Min. Turn Radius without Brakes
Not Published
8.8 ft (2.68 m, MFWD off)
Height to Top of ROPS
97.2 in
93.3 in
Height to Top of ROPS (folded)
Not Published
72.0 in
Height to Top of Cab Model
92.4 in
85.0 in
Overall Length
128.2 in (with 3-point hitch)
120.2 in (with 3-point hitch)
Tractor Weight (Base)
3,700 lb (open station); 4,345 lb (cab)
2,900 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
8.00-16
7-14
R1 Agricultural - Rear
13.6-28
11.2-24
R3 Turf - Front
27x10.5-15
27X8.50-15
R3 Turf - Rear
44x18.00-20
41X14-20
R4 Industrial - Front
10.00-16.5
25X8.5-14 or 27X8.5-15
R4 Industrial - Rear
17.5L-24
15-19.5 or 43X16-20
Quick Attach Loader System
Not Published
Tool-free attach-and-park mounting
Loader Model
440R (NSL and MSL)
300R; 320R
Loader Lift Height
440R NSL: 109 in; 440R MSL: 109 in
300R: 90 in; 320R: 102 in
Loader Lift Capacity (Full Height)
440R NSL: 2,486 lb; 440R MSL: 2,477 lb (to maximum height at pivot pin)
