John Deere 3046R vs John Deere 4320
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

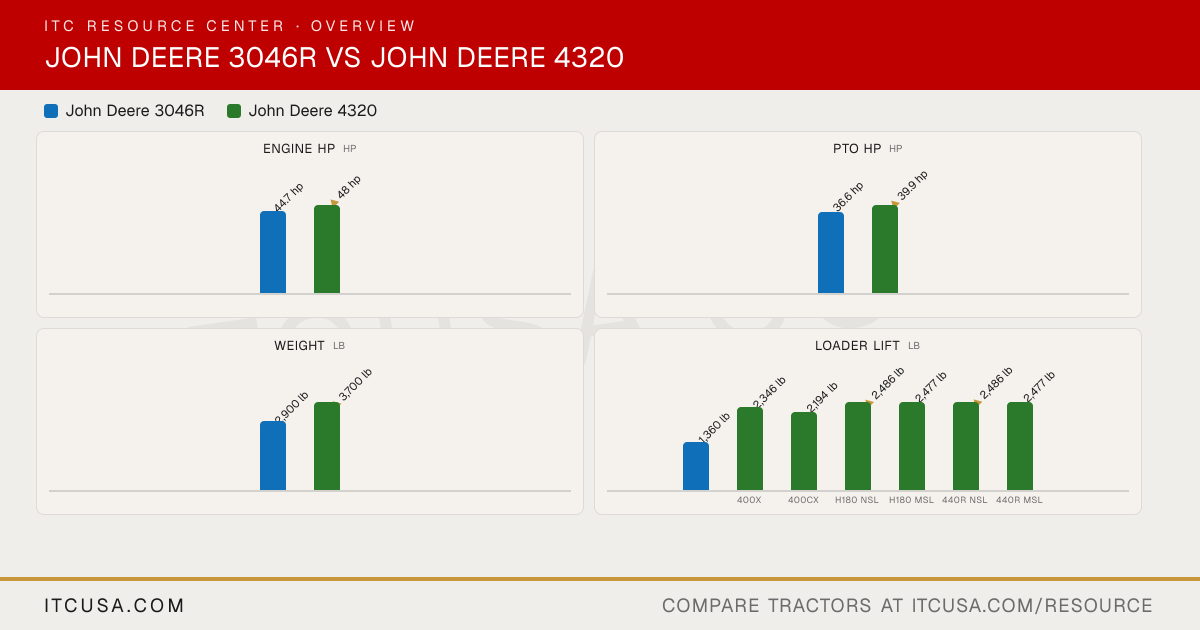

Across 9 measurable specs, the John Deere 4320 leads 8 categories to 1. Machine pages: John Deere 3046R and John Deere 4320.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 3046R | John Deere 4320 |
|---|---|---|
| Engine HP (hp) | 44.7 hp | ▲ 48 hp |
| PTO HP (hp) | 36.6 hp | ▲ 39.9 hp |
| Weight (lb) | 2,900 lb | ▲ 3,700 lb |
| Loader Lift (lb) | 1,360 lb | ▲ 2,486 lb |
| 3-Pt Lift (24 in) (lb) | 2,194 lb | ▲ 2,500 lb |
| Lift Height (in) | 90 in | ▲ 112.8 in |
| Breakout Force (lbf) | 2,855 lbf | ▲ 3,934 lbf |
| Hydraulic Flow (gpm) | 14.4 gpm | ▲ 17.1 gpm |
| Travel Speed (mph) | ▲ 18.5 mph | 17.3 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere3046R | John Deere4320 |
|---|
| Engine Manufacturer | Yanmar | John Deere |
|---|---|---|
| Engine Model | 3TNV86CHT-MJT | PowerTech 4024T |
| Engine Type | Diesel | 4-cylinder turbocharged liquid-cooled diesel, direct injection |
| No. of Cylinders | 3 | 4 |
| Displacement | 97.6 in³ | 149 in³ |
| Rated Engine Speed | 2600 rpm | 2400 rpm |
| Engine Power (Gross) | 44.7 hp | 48 hp |
| PTO Power | 36.6 hp | 39.9 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Water pump | Liquid-cooled |
| Air Cleaner | Dry type with safety element | Dry type with safety element |
| Fuel System | High pressure common rail direct injection (HPCR) | Direct injection, mechanical fuel pump |
| Alternator | 75 A, 12 V | 70 A |
John Deere 3046R vs John Deere 4320: Quick Answers
- Which has more horsepower, the John Deere 3046R or the John Deere 4320?
- The John Deere 4320 leads on engine hp at 48 hp hp, compared to 44.7 hp hp for the John Deere 3046R.
- Which has more PTO horsepower, the John Deere 3046R or the John Deere 4320?
- The John Deere 4320 leads on pto hp at 39.9 hp hp, compared to 36.6 hp hp for the John Deere 3046R.
- Which is heavier, the John Deere 3046R or the John Deere 4320?
- The John Deere 4320 leads on weight at 3,700 lb lb, compared to 2,900 lb lb for the John Deere 3046R.
- Which has more loader lift capacity, the John Deere 3046R or the John Deere 4320?
- The John Deere 4320 leads on loader lift at 2,486 lb lb, compared to 1,360 lb lb for the John Deere 3046R.
- Which has more three-point hitch lift capacity, the John Deere 3046R or the John Deere 4320?
- The John Deere 4320 leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,194 lb lb for the John Deere 3046R.
