Bad Boy Tractors 4035 vs John Deere 3046R

Across 9 measurable specs, the Bad Boy Tractors 4035 leads 6 categories to 3. Machine pages: Bad Boy Tractors 4035 and John Deere 3046R.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	John Deere3046R

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N4-BUTR_4	3TNV86CHT-MJTV
Engine Type	Vertical, 4-stroke, water-cooled diesel	Diesel
No. of Cylinders	3	3
Displacement	104.5 in³	95.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	44.7 hp
PTO Power	29.5 hp	36.6 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Liquid
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	75 A, 12 V
▶Hydraulics
Pump Type	Not Published	Implement/steering pump: dual gear pump; hydrostatic pump: PV axial-piston pump
Implement Flow	8.2 gpm	9.1 gpm
Steering Flow	4.4 gpm	6.2 gpm
Total Hydraulic Flow	12.6 gpm	15.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	15.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	Open station (OOS): 13.5 gal; Cab: 11.8 gal
Coolant Capacity	1.32 gal	Open station (OOS): 1.4 gal; Cab: 1.9 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	9.77 gal	6.8 gal
Front Axle Fluid Capacity	1.69 gal	1.3 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2100 rpm)
Category, 3-Point Hitch	Category I	Limited Category I
Hitch Lift Capacity	3,307 lb	2,530 lb at hitch ball
Hitch Lift Capacity (at 24”)	2,425 lb	2,200 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	3-range hydrostatic (eHydro)
No. of Speeds	3 range (HST)	Infinite / 3 range
Max Travel Speed (Forward)	19.08 mph	18.50 mph
Max Travel Speed (Reverse)	19.08 mph	18.50 mph
Clutch	None (HST)	Not Published
Differential Lock & Limited Slip Options	Rear differential lock	Differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Mechanical front wheel drive (MFWD)
Front Axle Rating	Not Published	3,196 lb
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	56.7 in	69.1 in
Wheelbase	65.7 in	68.0 in
Ground Clearance	13.1 in	12.2 in
Min. Turn Radius without Brakes	Not Published	8.8 ft (2.68 m, MFWD off)
Height to Top of ROPS	96.85 in	93.3 in
Height to Top of ROPS (folded)	Not Published	72.0 in
Height to Top of Cab Model	Not Published	85.0 in
Overall Length	134.88 in	120.2 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	3,164 lb	2,900 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front	8.0-16	7-14
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	27X8.50-15
R3 Turf - Rear	Not Published	41X14-20
R4 Industrial - Front	28x8.50-15	25X8.5-14 or 27X8.5-15
R4 Industrial - Rear	43x16.00-20	15-19.5 or 43X16-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Tool-free attach-and-park mounting
Loader Model	BBL400	300R; 320R
Loader Lift Height	104 in	300R: 90 in; 320R: 102 in
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	300R: 1,360 lb; 320R: 1,598 lb (at pivot pin)
Loader Breakout Force	3,660 lb	300R: 2,855 lbf; 320R: 3,327 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 4035 vs John Deere 3046R: Quick Answers

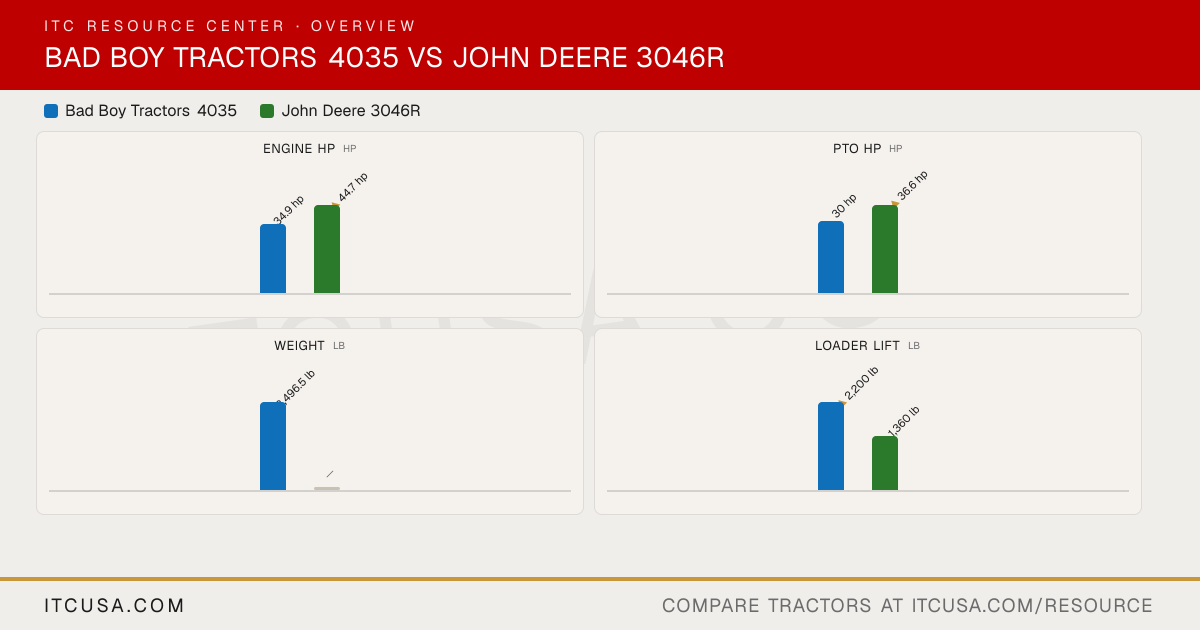

Which has more horsepower, the Bad Boy Tractors 4035 or the John Deere 3046R?

The John Deere 3046R leads on engine hp at 44.7 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the John Deere 3046R?

The John Deere 3046R leads on pto hp at 36.6 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the John Deere 3046R?

The Bad Boy Tractors 4035 leads on weight at 3,164 lb lb, compared to 2,900 lb lb for the John Deere 3046R.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the John Deere 3046R?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,598 lb lb for the John Deere 3046R.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the John Deere 3046R?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 2,200 lb lb for the John Deere 3046R.
