Bad Boy Tractors 5045 Cab vs John Deere 4320

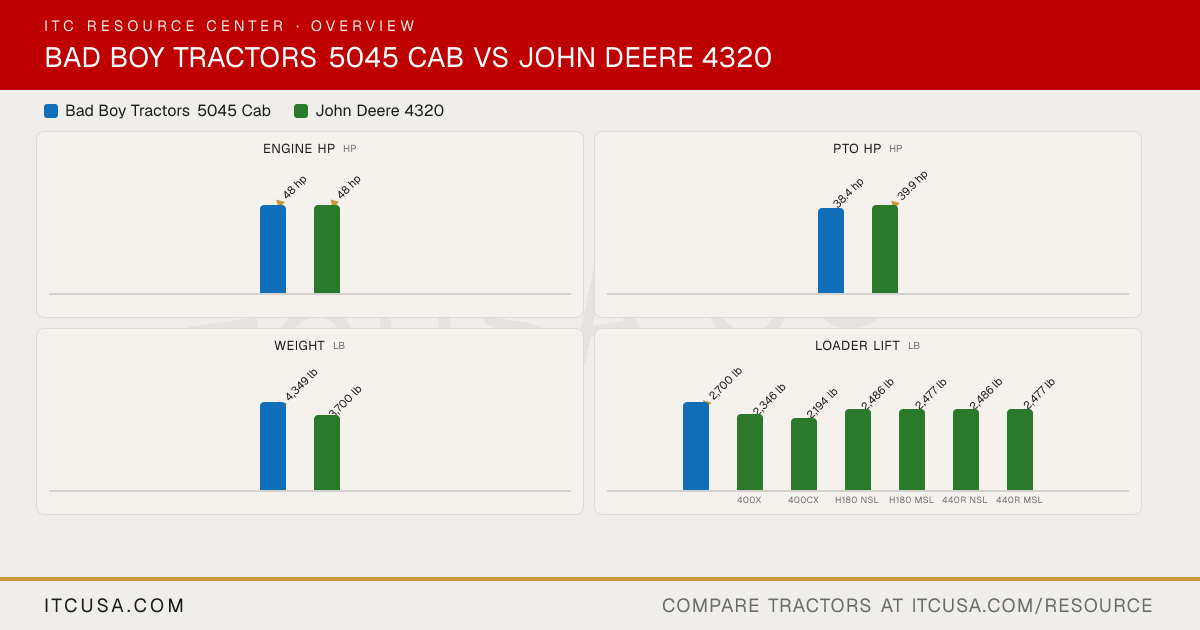

Across 9 measurable specs, the John Deere 4320 leads 5 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 5045 Cab and John Deere 4320.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	John Deere4320

▶Engine
Engine Manufacturer	TYM	John Deere
Engine Model	A2300N3	PowerTech 4024T
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	4-cylinder turbocharged liquid-cooled diesel, direct injection
No. of Cylinders	4	4
Displacement	139.5 in³	149 in³
Rated Engine Speed	2600 rpm	2400 rpm
Engine Power (Gross)	48 hp	48 hp
PTO Power	38.4 hp	39.9 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Dry type with safety element
Fuel System	Not Published	Direct injection, mechanical fuel pump
Alternator	70 A, 12 V	70 A
▶Hydraulics
Pump Type	Not Published	Dual tandem gear pump
Implement Flow	10.7 gpm	12 gpm
Steering Flow	5 gpm	5.1 gpm
Total Hydraulic Flow	15.7 gpm	17.1 gpm
Overall Hydraulic Pump Flow	15.7 gpm	17.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	Not Published
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	14.5 gal (open station); 13.8 gal (cab)
Coolant Capacity	1.56 gal	1.6 gal (open station); 2.2 gal (cab)
Crankcase Capacity	1.20 gal	7.9 qt
Transmission / Hydraulic System Capacity	10.04 gal	10.3 gal (PowrReverser); 9.6 gal (eHydro)
Front Axle Fluid Capacity	1.90 gal	1.3 gal
▶PTO & Hitch
PTO Type	Independent	Independent, wet disk clutch and brake
PTO Rear	540 / 540E rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2100 rpm
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	2500 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	PowrReverser 12F/12R standard; eHydro hydrostatic optional (4WD)
No. of Speeds	4 range (HST)	12 forward, 12 reverse (PowrReverser); infinite forward and reverse, 3 ranges (eHydro)
Max Travel Speed (Forward)	19.5 mph	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Max Travel Speed (Reverse)	19.5 mph	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Clutch	None (HST)	Multiple stage wet disk, 5.1 in (PowrReverser)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Mechanical rear differential lock
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering	Hydrostatic power steering	Power steering
Brakes	Wet, multi-disc	Wet disk
Seat Suspension & Adjustability	Heated leather seat (cab)	Air ride seat optional
Front Axle Type	Selectable 4WD	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	Not Published	3528 lb
Drawbar Capacity	Not Published	1103 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	127.4 in	128.2 in
Overall Width	64.9 in	65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase	71.1 in	71.5 in
Ground Clearance	15.5 in	Not Published
Min. Turn Radius without Brakes	110.2 in (with brake applied)	Not Published
Height to Top of ROPS	Not Published	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	92.4 in
▶Weight
Tractor Weight (Base)	4,349 lb	3700 lb (open station); 4345 lb (cab)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front	9.5-16	8.00-16
R1 Agricultural - Rear	13.6-26	13.6-28
R3 Turf - Front	Not Published	27x10.5-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	Not Published	10.00-16.5
R4 Industrial - Rear	Not Published	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL500	400X; 400CX
Loader Lift Height	106.6 in	400X: 112.8 in; 400CX: 112.8 in; H180 NSL: 109 in; H180 MSL: 109 in; 440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)	2,700 lb	400X: 2346 lb; 400CX: 2194 lb; H180 NSL: 2486 lb; H180 MSL: 2477 lb; 440R NSL: 2486 lb; 440R MSL: 2477 lb (to maximum height at pivot pin)
Loader Breakout Force	3,660 lb	400X: 3453 lbf; 400CX: 3435 lbf; H180 NSL: 3934 lbf; H180 MSL: 3917 lbf; 440R NSL: 3934 lbf; 440R MSL: 3917 lbf (at pivot point)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	3-year / 2,000-hour limited warranty (as sold new)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 5045 Cab vs John Deere 4320: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the John Deere 4320?

They are effectively tied: both machines are rated at 48 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the John Deere 4320?

The John Deere 4320 leads on pto hp at 39.9 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the John Deere 4320?

The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,700 lb lb for the John Deere 4320.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the John Deere 4320?

The Bad Boy Tractors 5045 Cab leads on loader lift at 2,700 lb lb, compared to 2,486 lb lb for the John Deere 4320.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the John Deere 4320?

The John Deere 4320 leads on 3-pt lift (24 in) at 2,500 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
