Bad Boy Tractors 5045 Cab vs Bad Boy Tractors 5055 Cab

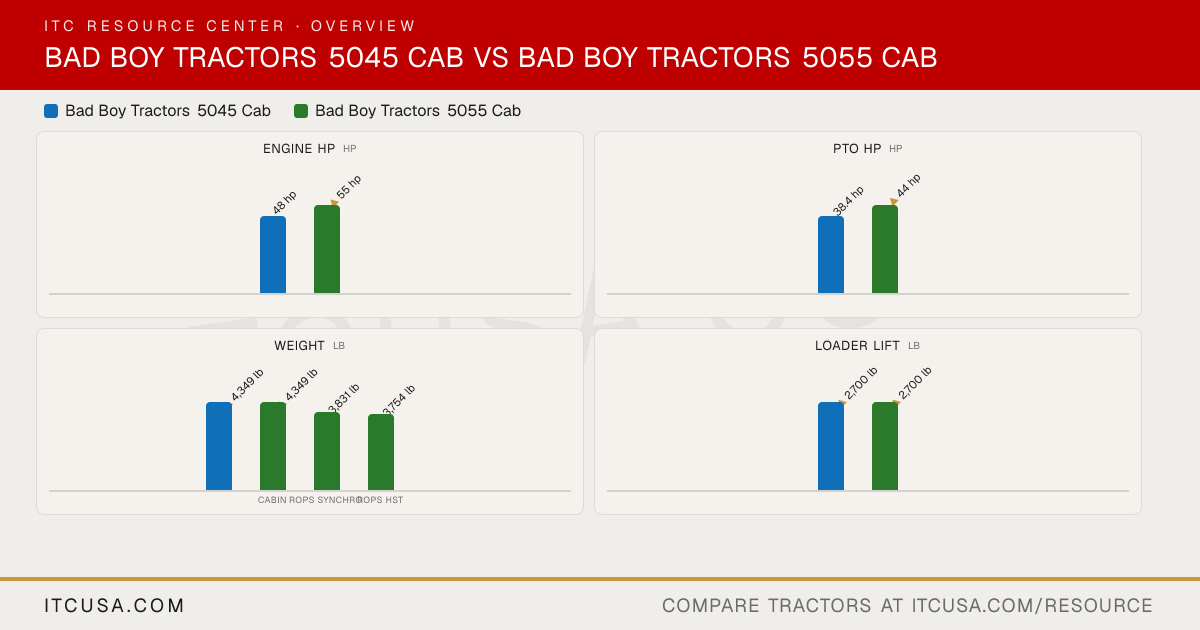

Across 9 measurable specs, the Bad Boy Tractors 5055 Cab leads 2 categories to 0 (7 tied). Machine pages: Bad Boy Tractors 5045 Cab and Bad Boy Tractors 5055 Cab.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	Bad Boy Tractors5055 Cab

▶Engine
Engine Manufacturer	TYM	TYM
Engine Model	A2300N3	A2300T11
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	4 cylinder water-cooled diesel, turbocharged
No. of Cylinders	4	4
Displacement	139.5 in³	139.5 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	48 hp	55 hp
PTO Power	38.4 hp	44 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Dry element
Fuel System	Not Published	Not Published
Alternator	70 A, 12 V	70 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	10.7 gpm
Steering Flow	5 gpm	5 gpm
Total Hydraulic Flow	15.7 gpm	15.7 gpm
Overall Hydraulic Pump Flow	15.7 gpm	15.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	4 ports
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	11.8 gal
Coolant Capacity	1.56 gal	1.56 gal
Crankcase Capacity	1.20 gal	1.20 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.04 gal
Front Axle Fluid Capacity	1.90 gal	1.90 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 / 540E rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306 lb	3,306 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Hydrostatic (HST), 4-range
No. of Speeds	4 range (HST)	4 range (HST)
Max Travel Speed (Forward)	19.5 mph	19.5 mph
Max Travel Speed (Reverse)	19.5 mph	19.5 mph
Clutch	None (HST)	None (HST)
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Compact utility tractor, 4WD
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Heated leather seat (cab)
Front Axle Type	Selectable 4WD	Selectable 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	64.9 in
Wheelbase	71.1 in	71.1 in
Ground Clearance	15.5 in	15.5 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	9.18 ft (with brake applied)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	97.0 in
Overall Length	127.4 in (with 3-point hitch)	127.4 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	4,349 lb	4,349 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	9.5-16 front / 13.6-26 rear (ag)
R1 Agricultural - Front	9.5-16	9.5-16
R1 Agricultural - Rear	13.6-26	13.6-26
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
▶Loader & Attachments
Quick Attach Loader System	SSQA	SSQA
Loader Model	BBL500	BBL500
Loader Lift Height	106.6 in	106.6 in
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	2,700 lb (at pivot pin)
Loader Breakout Force	3,660 lb	3,660 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Find a Bad Boy dealer near you→

Bad Boy Tractors 5045 Cab vs Bad Boy Tractors 5055 Cab: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055 Cab?

The Bad Boy Tractors 5055 Cab leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055 Cab?

The Bad Boy Tractors 5055 Cab leads on pto hp at 44 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055 Cab?

They are effectively tied: both machines are rated at 4,349 lb lb for weight.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055 Cab?

They are effectively tied: both machines are rated at 2,700 lb lb for loader lift.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055 Cab?

They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
