Across 9 measurable specs, the Bad Boy Tractors 5055 leads 2 categories to 1 (6 tied). Machine pages: Bad Boy Tractors 5045 Cab and Bad Boy Tractors 5055.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 5045 Cab | Bad Boy Tractors 5055 |
|---|
| Engine HP (hp) | 48 hp | ▲ 55 hp |
| PTO HP (hp) | 38.4 hp | ▲ 44 hp |
| Weight (lb) | ▲ 4,349 lb | 3,836 lb |
| Loader Lift (lb) | 2,700 lb | 2,700 lb |
| 3-Pt Lift (24 in) (lb) | 2,425 lb | 2,425 lb |
| Lift Height (in) | 106.6 in | 106.6 in |
| Breakout Force (lbf) | 3,660 lbf | 3,660 lbf |
| Hydraulic Flow (gpm) | 15.7 gpm | 15.7 gpm |
| Travel Speed (mph) | 19.5 mph | 19.5 mph |

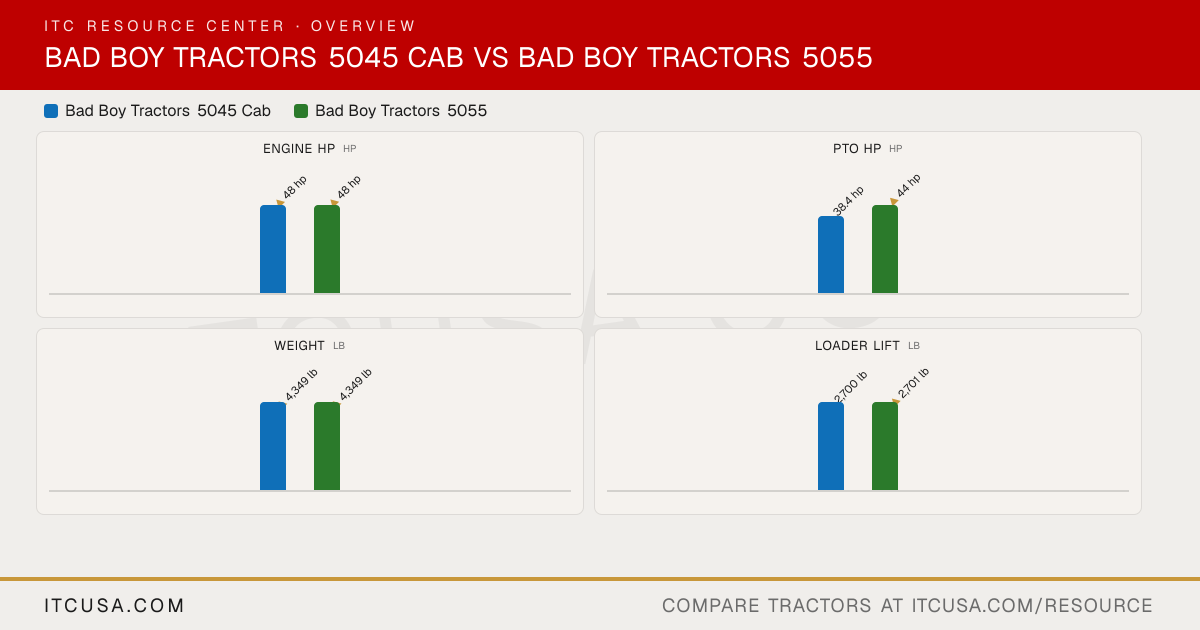

The headline numbers at a glance.
Bad Boy Tractors 5045 CabBad Boy Tractors 5055
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors5045 Cab | Bad Boy Tractors5055 |
|---|
|
|---|
| Engine Manufacturer | TYM | TYM |
|---|
| Engine Model | A2300N3 | A2300T3 |
|---|
| Engine Type | 4 cylinder water-cooled diesel, naturally aspirated | 4 cylinder water-cooled diesel, turbocharged |
|---|
| No. of Cylinders | 4 | 4 |
|---|
| Displacement | 139.5 in³ | 139.5 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 48 hp | 55 hp |
|---|
| PTO Power | 38.4 hp | 44 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Water-cooled | Water-cooled |
|---|
| Air Cleaner | Dry element | Dry element |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | 70 A, 12 V | 50 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 10.7 gpm | 10.7 gpm |
|---|
| Steering Flow | 5 gpm | 5 gpm |
|---|
| Total Hydraulic Flow | 15.7 gpm | 15.7 gpm |
|---|
| Overall Hydraulic Pump Flow | 15.7 gpm | 15.7 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 4 ports | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Up to 4 ports |
|---|
|
|---|
| Fuel Tank Capacity | 11.8 gal | 11.8 gal |
|---|
| Coolant Capacity | 1.56 gal | 2.08 gal |
|---|
| Crankcase Capacity | 1.20 gal | 1.20 gal |
|---|
| Transmission / Hydraulic System Capacity | 10.04 gal | 10.04 gal |
|---|
| Front Axle Fluid Capacity | 1.90 gal | 1.90 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 / 540E rpm | 540 / 540E rpm |
|---|
| Mid-PTO Availability | Not Published | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 3,306 lb | 3,306 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2,425 lb | 2,425 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic (HST), 4-range | Hydrostatic (HST), 4-range |
|---|
| No. of Speeds | 4 range (HST) | 4 range (HST) |
|---|
| Max Travel Speed (Forward) | 19.5 mph | 19.5 mph |
|---|
| Max Travel Speed (Reverse) | 19.5 mph | 19.5 mph |
|---|
| Clutch | None (HST) | None (HST) |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (standard) | Rear differential lock (standard) |
|---|
|
|---|
| Frame Type | Compact utility tractor, 4WD | Compact utility tractor |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet, multi-disc | Wet, multi-disc |
|---|
| Seat Suspension & Adjustability | Heated leather seat (cab) | Heated leather seat |
|---|
| Front Axle Type | Selectable 4WD | Selectable 4WD |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Width | 64.9 in | 64.9 in |
|---|
| Wheelbase | 71.1 in | 71.1 in |
|---|
| Ground Clearance | 15.5 in | 15.5 in |
|---|
| Min. Turn Radius without Brakes | 9.18 ft (with brake applied) | 9.18 ft (with brake applied) |
|---|
| Height to Top of ROPS | Not Published | 98.4 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 97.0 in | Not Applicable |
|---|
| Overall Length | 127.4 in (with 3-point hitch) | 127.4 in (with 3-point hitch) |
|---|
|
|---|
| Tractor Weight (Base) | 4,349 lb | 3,836 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | 9.5-16 front / 13.6-26 rear (ag) | 9.5-16 front / 13.6-26 rear (ag) |
|---|
| R1 Agricultural - Front | 9.5-16 | 9.5-16 |
|---|
| R1 Agricultural - Rear | 13.6-26 | 13.6-26 |
|---|
| R3 Turf - Front | Not Published | Not Published |
|---|
| R3 Turf - Rear | Not Published | Not Published |
|---|
| R4 Industrial - Front | Not Published | Not Published |
|---|
| R4 Industrial - Rear | Not Published | Not Published |
|---|
|
|---|
| Quick Attach Loader System | SSQA | SSQA |
|---|
| Loader Model | BBL500 | BBL500 |
|---|
| Loader Lift Height | 106.6 in | 106.6 in |
|---|
| Loader Lift Capacity (Full Height) | 2,700 lb (at pivot pin) | 2,700 lb (at pivot pin) |
|---|
| Loader Breakout Force | 3,660 lb | 3,660 lb |
|---|
|
|---|
| Warranty Length & Coverage | Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours | Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours |
|---|
|
|---|
| Accessories that fit | | |
|---|
Bad Boy Tractors 5045 Cab vs Bad Boy Tractors 5055: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055?
- The Bad Boy Tractors 5055 leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.
- Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055?
- The Bad Boy Tractors 5055 leads on pto hp at 44 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.
- Which is heavier, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055?
- The Bad Boy Tractors 5045 Cab leads on weight at 4,349 lb lb, compared to 3,836 lb lb for the Bad Boy Tractors 5055.
- Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055?
- They are effectively tied: both machines are rated at 2,700 lb lb for loader lift.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Bad Boy Tractors 5055?
- They are effectively tied: both machines are rated at 2,425 lb lb for 3-pt lift (24 in).
