Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

JohnDeere4320

n/a

JohnDeere4052MHeavyDuty

Comparison loaded for 2 tractors.

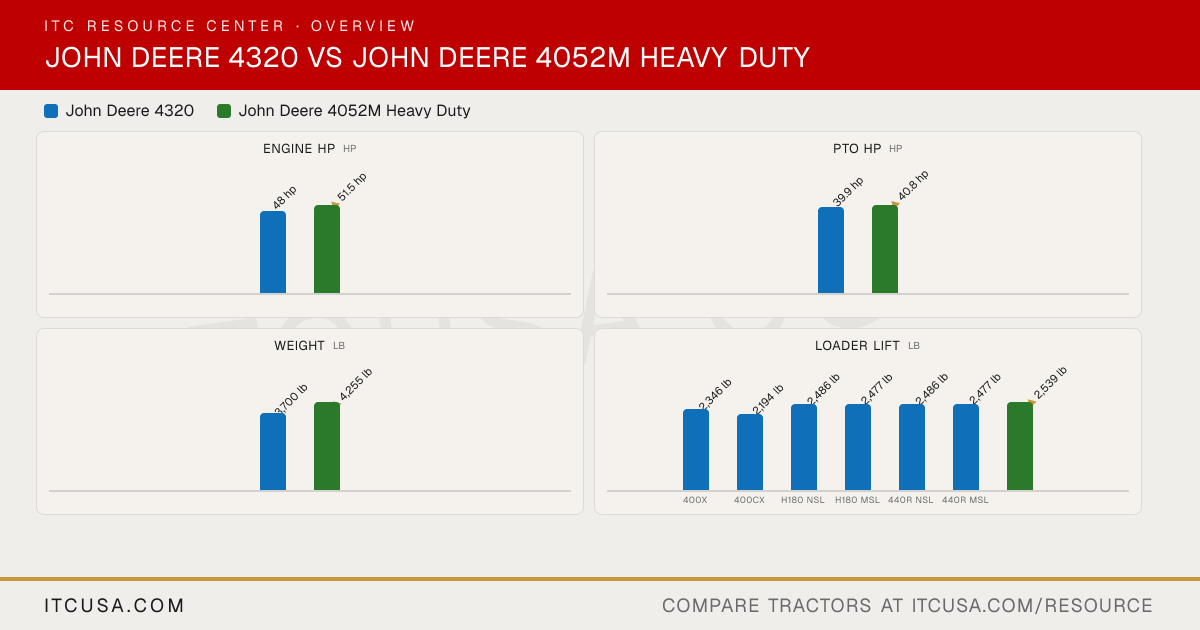

The headline numbers at a glance.

John Deere 4320John Deere 4052M Heavy Duty

Engine HPhp

48 hp

▲51.5 hp

PTO HPhp

39.9 hp

▲40.8 hp

Weightlb

3,700 lb

▲4,255 lb

Loader Liftlb

2,346 lb

2,194 lb

2,486 lb

2,477 lb

2,486 lb

2,477 lb

▲2,539 lb

400X400CXH180 NSLH180 MSL440R NSL440R MSL

3-Pt Lift (24 in)lb

▲2,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere4320	John Deere4052M Heavy Duty


Engine Manufacturer	John Deere	Yanmar
Engine Model	PowerTech 4024T	4TNV86CT-MJT
Engine Type	4-cylinder turbocharged liquid-cooled diesel, direct injection	Turbocharged 4-cylinder Diesel
No. of Cylinders	4	4
Displacement	149 in³	127.6 in³
Rated Engine Speed	2400 rpm	2600 rpm
Engine Power (Gross)	48 hp	51.5 hp
PTO Power	39.9 hp	40.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Dry type with safety element	Dual element
Fuel System	Direct injection, mechanical fuel pump	High-pressure common rail direct injection
Alternator	70 A	75 A, 12 V

Pump Type	Dual tandem gear pump	Dual Independent
Implement Flow	12 gpm	10.2 gpm
Steering Flow	5.1 gpm	5.7 gpm
Total Hydraulic Flow	17.1 gpm	15.9 gpm
Overall Hydraulic Pump Flow	17.1 gpm	15.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	14.5 gal (open station); 13.8 gal (cab)	Open station: 15.0 gal; Cab: 14.7 gal (if equipped)
Coolant Capacity	1.6 gal (open station); 2.2 gal (cab)	Open station: 6.8 qt; Cab: 8.0 qt (if equipped)
Crankcase Capacity	7.9 qt	5.6 qt (with filter)
Transmission / Hydraulic System Capacity	10.3 gal (PowrReverser); 9.6 gal (eHydro)	12.5 gal
Front Axle Fluid Capacity	1.3 gal	5.3 qt

PTO Type	Independent, wet disk clutch and brake	Independent (electrohydraulic)
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2100 rpm	No mid-PTO offered
Category, 3-Point Hitch	Category 1	Category I/II
Hitch Lift Capacity	Not Published	3,130 lb
Hitch Lift Capacity (at 24”)	2500 lb	2,500 lb
Lift Control Type	Position control	Position control

Transmission Type	PowrReverser 12F/12R standard; eHydro hydrostatic optional (4WD)	eHydro (3-range hydrostatic); no PowrReverser gear option offered
No. of Speeds	12 forward, 12 reverse (PowrReverser); infinite forward and reverse, 3 ranges (eHydro)	eHydro: Infinitely-variable, 3 range
Max Travel Speed (Forward)	17.3 mph (PowrReverser); 16.9 mph (eHydro)	18.6 mph
Max Travel Speed (Reverse)	17.3 mph (PowrReverser); 16.9 mph (eHydro)	18.6 mph
Clutch	Multiple stage wet disk, 5.1 in (PowrReverser)	Wet; wet clutch disk diameter 5.08 in
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock: Yes

Frame Type	Folding ROPS; ComfortGard cab optional; four-wheel drive standard	ROPS - Foldable
Steering	Power steering	Power steering (hydrostatic)
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Air ride seat optional	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD), standard, all ranges	Mechanical front wheel drive (MFWD) - Standard
Front Axle Rating	3528 lb	(Continuous) 3307 lb
Drawbar Capacity	1103 lb	Max vertical load 1103 lb

Overall Length with 3-Point Hitch	128.2 in	134.7 in
Overall Width	65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)	71.3 in
Wheelbase	71.5 in	73.0 in
Ground Clearance	Not Published	Front axle: 15.2 in; Drawbar support: 14.5 in
Min. Turn Radius without Brakes	Not Published	17.1 ft (5.2 m)
Height to Top of ROPS	97.2 in	91.1 in
Height to Top of ROPS (folded)	Not Published	65.9 in
Height to Top of Cab Model	92.4 in	Not Published

Tractor Weight (Base)	3700 lb (open station); 4345 lb (cab)	4,255 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear	R4 Industrial
R1 Agricultural - Front	8.00-16	Not Published
R1 Agricultural - Rear	13.6-28	Not Published
R3 Turf - Front	27x10.5-15	Not Published
R3 Turf - Rear	44x18.00-20	Not Published
R4 Industrial - Front	10.00-16.5	31.5x13-16.5 (10PR)
R4 Industrial - Rear	17.5L-24	16.9-24

Quick Attach Loader System	Not Published	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)
Loader Model	400X; 400CX	440R (Quik-Park)
Loader Lift Height	400X: 112.8 in; 400CX: 112.8 in; H180 NSL: 109 in; H180 MSL: 109 in; 440R NSL: 109 in; 440R MSL: 109 in	110 in
Loader Lift Capacity (Full Height)	400X: 2346 lb; 400CX: 2194 lb; H180 NSL: 2486 lb; H180 MSL: 2477 lb; 440R NSL: 2486 lb; 440R MSL: 2477 lb (to maximum height at pivot pin)	2,539 lb (at pivot, NSL)
Loader Breakout Force	400X: 3453 lbf; 400CX: 3435 lbf; H180 NSL: 3934 lbf; H180 MSL: 3917 lbf; 440R NSL: 3934 lbf; 440R MSL: 3917 lbf (at pivot point)	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf

Warranty Length & Coverage	3-year / 2,000-hour limited warranty (as sold new)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
