John Deere 4052M Heavy Duty vs John Deere 4320
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the John Deere 4052M Heavy Duty leads 5 categories to 3 (1 tied). Machine pages: John Deere 4052M Heavy Duty and John Deere 4320.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

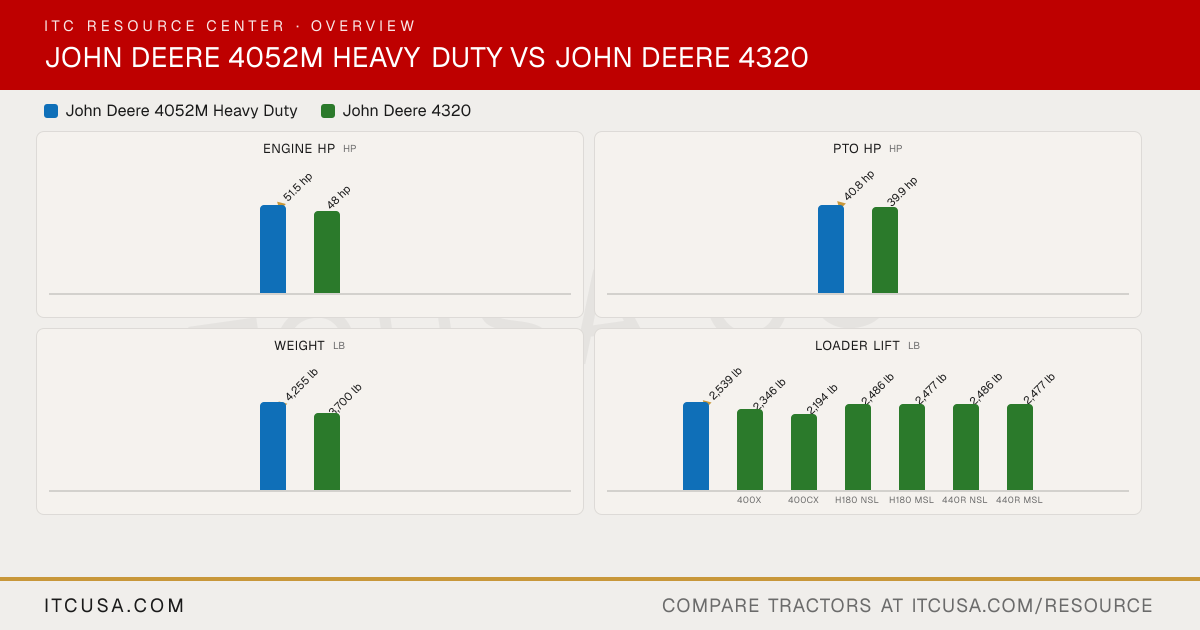

Category Verdict
| Spec | John Deere 4052M Heavy Duty | John Deere 4320 |
|---|---|---|
| Engine HP (hp) | ▲ 51.5 hp | 48 hp |
| PTO HP (hp) | ▲ 40.8 hp | 39.9 hp |
| Weight (lb) | ▲ 4,255 lb | 3,700 lb |
| Loader Lift (lb) | ▲ 2,539 lb | 2,486 lb |
| 3-Pt Lift (24 in) (lb) | 2,500 lb | 2,500 lb |
| Lift Height (in) | 110 in | ▲ 112.8 in |
| Breakout Force (lbf) | 3,853 lbf | ▲ 3,934 lbf |
| Hydraulic Flow (gpm) | 15.9 gpm | ▲ 17.1 gpm |
| Travel Speed (mph) | ▲ 18.6 mph | 17.3 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere4052M Heavy Duty | John Deere4320 |
|---|
| Engine Manufacturer | Yanmar | John Deere |
|---|---|---|
| Engine Model | 4TNV86CT-MJT | PowerTech 4024T |
| Engine Type | Turbocharged 4-cylinder Diesel | 4-cylinder turbocharged liquid-cooled diesel, direct injection |
| No. of Cylinders | 4 | 4 |
| Displacement | 127.6 in³ | 149 in³ |
| Rated Engine Speed | 2600 rpm | 2400 rpm |
| Engine Power (Gross) | 51.5 hp | 48 hp |
| PTO Power | 40.8 hp | 39.9 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Liquid | Liquid-cooled |
| Air Cleaner | Dual element | Dry type with safety element |
| Fuel System | High-pressure common rail direct injection | Direct injection, mechanical fuel pump |
| Alternator | 75 A, 12 V | 70 A |
John Deere 4052M Heavy Duty vs John Deere 4320: Quick Answers
- Which has more horsepower, the John Deere 4052M Heavy Duty or the John Deere 4320?
- The John Deere 4052M Heavy Duty leads on engine hp at 51.5 hp hp, compared to 48 hp hp for the John Deere 4320.
- Which has more PTO horsepower, the John Deere 4052M Heavy Duty or the John Deere 4320?
- The John Deere 4052M Heavy Duty leads on pto hp at 40.8 hp hp, compared to 39.9 hp hp for the John Deere 4320.
- Which is heavier, the John Deere 4052M Heavy Duty or the John Deere 4320?
- The John Deere 4052M Heavy Duty leads on weight at 4,255 lb lb, compared to 3,700 lb lb for the John Deere 4320.
- Which has more loader lift capacity, the John Deere 4052M Heavy Duty or the John Deere 4320?
- The John Deere 4052M Heavy Duty leads on loader lift at 2,539 lb lb, compared to 2,486 lb lb for the John Deere 4320.
- Which has more three-point hitch lift capacity, the John Deere 4052M Heavy Duty or the John Deere 4320?
- They are effectively tied: both machines are rated at 2,500 lb lb for 3-pt lift (24 in).
