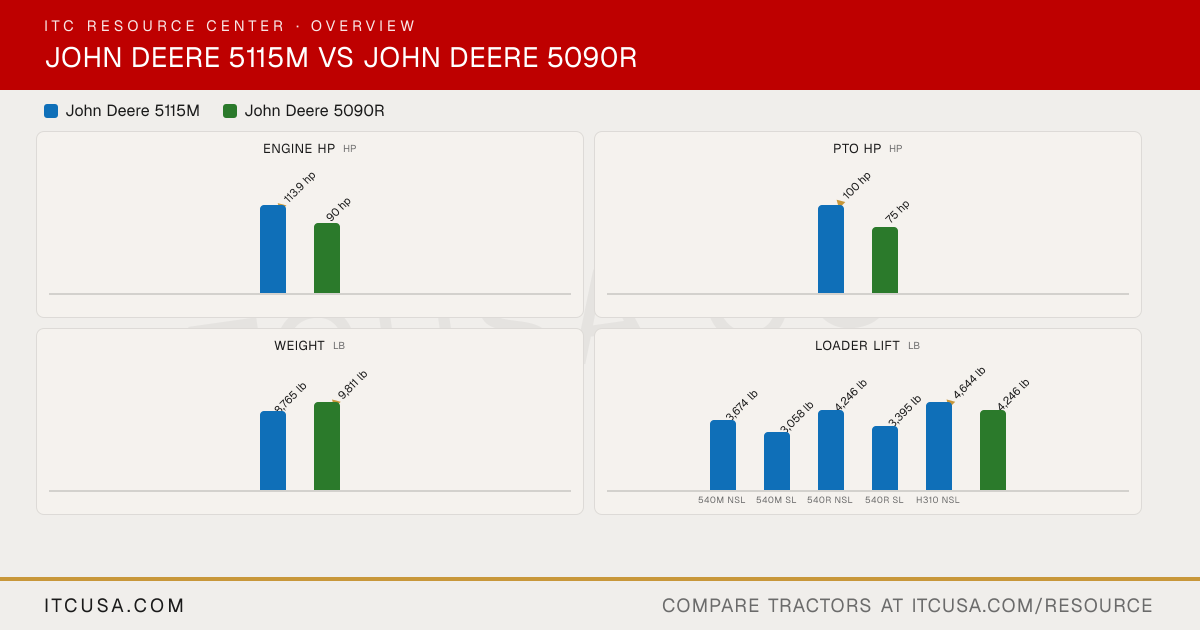

▶ EngineEngine Manufacturer John Deere John Deere Engine Model PowerTech 4045 PWL John Deere PowerTech 4.5L diesel Engine Type Diesel, turbocharged, air-to-air aftercooled 4-cylinder, turbocharged and intercooled diesel, 4-valve high pressure common rail No. of Cylinders 4 4 Displacement 276 in³ 276 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 113.9 hp 90 hp PTO Power 100 hp @ 100 rpm 75 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled (Cool-Gard II coolant) Liquid-cooled Air Cleaner Dry air cleaner, primary and secondary elements Dry type with safety element Fuel System High pressure common rail (HPCR); electronic fuel control High pressure common rail, 4 valve, electronic fuel control Alternator OOS: 90 A; Cab: 120 A; Field-installed option: 200 A, 12 V 200 A ▶ HydraulicsPump Type Tandem gear pump Tandem gear pump (open center); variable axial-piston implement pump (PFC, optional) Implement Flow 18.4 gpm 19.3 gpm (open center); 30.9 gpm (PFC) Steering Flow 6.3 gpm 6.3 gpm (open center) Total Hydraulic Flow 24.7 gpm 25.6 gpm (open center) Overall Hydraulic Pump Flow 24.7 gpm 25.6 gpm (open center); 30.9 gpm (PFC) Hydraulic System Type Open center Open center (standard); closed center PFC (optional) Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (rear, Dual SCV) 2 rear and 2 mid (stackable) No. of Optional Remote Valves 3 rear valves total (3rd rear SCV optional); up to 3 mid SCVs (XI, XII, XIII) for loader functions Rear: 3 (mechanical or proportional EH, optional; 4th rear by conversion kit); Mid: 3 Deluxe (mechanical or EH, optional) ▶ Fluid CapacityFuel Tank Capacity OOS: 37.2 gal; Cab: 44.9 gal 38 gal Coolant Capacity OOS: 5.2 gal; Cab: 5.8 gal 4.25 gal Crankcase Capacity 3.4 gal 3.1 gal Transmission / Hydraulic System Capacity 10.4 gal 11.75 gal (open center); 12.5 gal (closed center PFC) Front Axle Fluid Capacity Differential housing (MFWD): 1.3 gal; Wheel hub (each): 0.2 gal 1.3 gal (MFWD differential housing); 0.2 gal (each wheel hub) ▶ PTO & HitchPTO Type Independent rear PTO, electro-hydraulic wet disc clutch: 540/540E standard, 540/540E/1000 optional Independent, electro-hydraulic engagement, wet PTO clutch, reversible 540/1000 shaft PTO Rear 540/540E rpm standard; 1000 rpm optional 540/540E/1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (convertible to I) Category II (telescoping draft links with Category II balls) Hitch Lift Capacity 5,305 lb standard; 6,114 lb optional 7,158 lb; 8,157 lb throughout lift range at hitch ball; 11,122 lb / 12,515 lb maximum Hitch Lift Capacity (at 24”) 5,159 lb standard; 5,954 lb optional 6,975 lb; 7,868 lb throughout lift range Lift Control Type Mechanical or electrohydraulic; lower-link draft sensing Electro-hydraulic hitch with fender controls, lower-link draft sensing ▶ Transmission & DrivetrainTransmission Type PowrReverser 16F/16R (base); optional 32F/16R PowrReverser Hi-Lo; PowrQuad PLUS 16F/16R and Powr8 32F/16R also offered CommandQuad 16F/16R manual with electronic range and gear shifting, AutoClutch and wet traction clutch (standard); CommandQuad 16F/16R Auto, CommandQuad 16F/16R manual with creeper, or Command8 32F/16R (optional) No. of Speeds 16F/16R standard (PowrReverser); 32F/16R optional (PowrReverser Hi-Lo); 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) 16F/16R (CommandQuad, standard); 32F/16R (Command8, optional) Max Travel Speed (Forward) 16F/16R PowrReverser, top gear (D-4), 40K config: 21.72 mph (480/70R28 Mitas rear tires, 2200 rpm) 22.0 mph (D4, 16/16 transmission, 480/70R28 rear tires) Max Travel Speed (Reverse) 16F/16R PowrReverser, top gear (D-4), 40K config: 23.94 mph (480/70R28 Mitas rear tires, 2200 rpm) 18.6 mph Clutch Wet Wet traction clutch with AutoClutch Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock, engage on the go Electro-hydraulic differential lock ▶ Chassis, Steering & ControlsFrame Type Cast iron mid-frame Cab standard with air conditioning; mechanical front-wheel drive (MFWD) Steering Not Published Hydrostatic power steering Brakes Not Published Hydraulic wet disc, self-equalizing and self-adjusting, lockable turning brakes; electronic park brake Seat Suspension & Adjustability OOS: isolated mechanical seat (fore/aft, weight, and lumbar adjustment); Cab: mechanical suspension seat standard, air suspension seat optional; adjustable weight range 88-330 lb Not Published Front Axle Type MFWD MFWD, electro-hydraulic engagement, planetary final drives Front Axle Rating 6,613 lb (MFWD, max permissible front axle load) 7,937 lb (MFWD closed center); 7,055 lb (MFWD open center) Drawbar Capacity Standard drawbar: 2,756 lb; 2,425 lb; 2,205 lb. Heavy-duty drawbar: 3,197 lb; 2,646 lb 2,756 lb (standard drawbar, 9.8 in extended); 2,205 lb (standard, 13.8 in extended); 3,197 lb (heavy duty, 9.8 in extended); 2,646 lb (heavy duty, 13.8 in extended) ▶ Dimensions & ManeuverabilityOverall Width Cab, with fender extension: 85.6 in; Cab, without fender extension: 74 in; OOS, with fender extension: 69.1 in; OOS, without fender extension: 51.7 in 87 in (with fender extension); 74 in (without fender extension); 66.9 in (narrow cab, without fender extension) Wheelbase 92.5 in 88.6 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 102.1 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 102.9 in 106.1 in Overall Length 149.5 in 147.8 in ▶ WeightTractor Weight (Base) MFWD, OOS: 8,765 lb; MFWD, Cab: 9,185 lb (shipping weight, less weights; 2WD not offered) 9,811 lb (base machine weight, with all fluids) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 320/85R24 (12.4R24) R1-W radial front and 460/85R30 (18.4R30) R1-W radial rear standard; optional 11.2R28/13.6R38, 380/70R20/480/70R28, 13.6R24/16.9R34, 380/70R24/480/70R34 R1; R3 44x18-20/23.1-26; R4 12.5/80-18/19.5L-24 R1 Agricultural - Front 12.4R24 (320/85R24) R1W Radial 320/85R24 (12.4R24) R1-W radial R1 Agricultural - Rear 18.4R30 (460/85R30) R1W Radial 460/85R30 (18.4R30) R1-W radial R3 Turf - Front Not Published 44x18-20 R3 Turf - Rear Not Published 23.1-26 R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Global carrier in base; John Deere 500-style carrier optional (540R) Loader Model 540M NSL; 540M SL; 540R NSL; 540R SL; H310 NSL (MFWD required for H310) 540R (non self-leveling and mechanical self-leveling) Loader Lift Height 540M NSL: 138 in; 540M SL: 138 in; 540R NSL: 141 in; 540R SL: 141 in; H310 NSL: 149 in 540R: 141.5 in Loader Lift Capacity (Full Height) 540M NSL: 3,674 lb; 540M SL: 3,058 lb; 540R NSL: 4,246 lb; 540R SL: 3,395 lb; H310 NSL: 4,644 lb (measured at pivot) 540R NSL: 4,246 lb (measured at pivot) Loader Breakout Force 540M NSL: 6,686 lbf; 540M SL: 5,513 lbf; 540R NSL: 4,945 lbf; 540R SL: 5,291 lbf; H310 NSL: 6,767 lbf (measured at pivot) 540R NSL: 4,945 lbf (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
