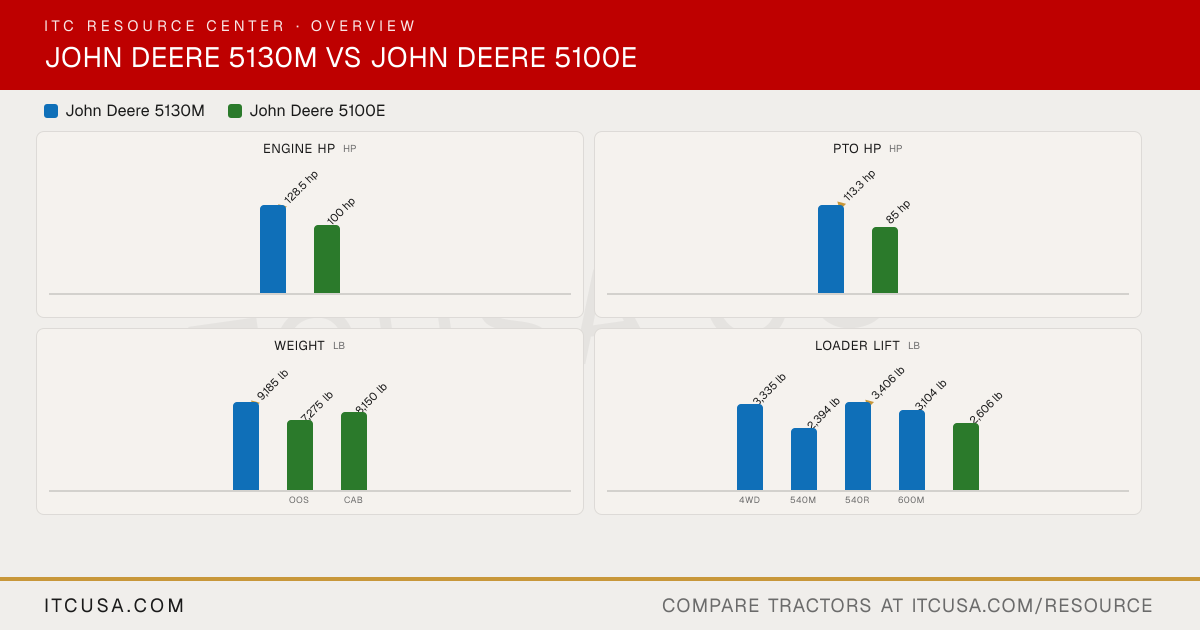

▶ EngineEngine Manufacturer John Deere John Deere Engine Model PowerTech 4045 EWL PowerTech PWL 4045 Engine Type Diesel, turbocharged with intercooler, 4-valve HPCR Diesel, turbocharged, aftercooled No. of Cylinders 4 4 Displacement 276 in³ 276 in³ Rated Engine Speed 2200 rpm 2400 rpm Engine Power (Gross) 128.5 hp 100 hp PTO Power 113.3 hp 85 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Dry type air cleaner with safety element Dry type with safety element Fuel System High-pressure common rail (HPCR), 4-valve High Pressure Common Rail Alternator 120 A, 12 V OOS: 90 A; Cab: 120 A ▶ HydraulicsPump Type Tandem gear pump Tandem gear pump (implement + steering) Implement Flow 18.4 gpm 15.9 gpm Steering Flow 6.3 gpm 6.6 gpm Total Hydraulic Flow 25.6 gpm 22.5 gpm Overall Hydraulic Pump Flow 25.6 gpm 22.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 (rear); 2 (mid) 2 No. of Optional Remote Valves Up to 3 total (rear); up to 3 total (mid) 3 ▶ Fluid CapacityFuel Tank Capacity 43.7 gal (Standard Cab) OOS: 25 gal; Cab: 30 gal Coolant Capacity Not Published Cab: 3 gal; OOS: 2.5 gal Crankcase Capacity Not Published 3.2 gal (with filter) Transmission / Hydraulic System Capacity Not Published 11.5 gal Front Axle Fluid Capacity Not Published MFWD differential housing: 1.3 gal; MFWD wheel hub (each): 0.74 qt ▶ PTO & HitchPTO Type Independent rear PTO, electro-hydraulic clutch Independent, electrohydraulic engagement PTO Rear 540/540E standard; 540/540E/1000 optional 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (convertible to I) Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 6,975 lb standard; 7,868 lb optional 4,630 lb Lift Control Type Electrohydraulic Top link draft sensing; mechanical hitch controls ▶ Transmission & DrivetrainTransmission Type PowrQuad PLUS 16F/16R or Powr8 32F/16R (cab only) PowrReverser No. of Speeds 16F/16R (PowrQuad PLUS); 32F/16R (Powr8) 12F/12R (standard); 24F/12R (optional) Max Travel Speed (Forward) 24 mph 12F/12R: 21.7 mph; 24F/12R: 24.9 mph (electronically limited) Max Travel Speed (Reverse) Not Published Not Published Clutch Wet Wet traction clutch Differential Lock & Limited Slip Options Electro-hydraulic rear differential lock Pedal-operated differential lock ▶ Chassis, Steering & ControlsFrame Type Cast iron mid-frame design Not Published Steering Power steering Hydrostatic power steering Brakes Hydraulic wet disc brakes, self-equalizing and self-adjusting Hydraulic wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Mechanical-suspension seat, standard; air-suspension seat, optional; heated low-frequency air-suspension seat, optional Not Published Front Axle Type MFWD Mechanical front wheel drive (MFWD) Front Axle Rating Not Published 6,615 lb Drawbar Capacity 3,197 lb Standard: 2,755 lb; 2,425 lb (350 and 15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350 and 15.7 in extended) ▶ Dimensions & ManeuverabilityOverall Width Not Published Not Published Wheelbase 92.5 in 92.5 in Ground Clearance Not Published ROPS: 17 in; Cab: 15.2 in Min. Turn Radius without Brakes 13.1 ft Not Published Height to Top of ROPS Not Applicable 100.8 in Height to Top of ROPS (folded) Not Applicable 78.6 in Height to Top of Cab Model Not Published 101.2 in Overall Length Not Published 159.13 in ▶ WeightTractor Weight (Base) 9,185 lb OOS: 7,275 lb (shipping weight); Cab: 8,150 lb (shipping weight) Weight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural Not Published R1 Agricultural - Front 12.4R24 12.4-24 R1 Agricultural - Rear 18.4R30 18.4-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 12.5/80-18 in, 12PR R4 Bias 12.5/80-18 R4 Industrial - Rear 19.5L-24 in, 10PR R4 Bias 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 520M; 540M Loader Model 520M (4WD only); 540M (NSL and MSL); 540R (NSL and MSL); 600M (NSL only) 520M and 540M (previously H240 and H260) Loader Lift Height 520M: NSL/MSL 130-132 in; 540M: NSL 137-141 in, MSL 138-141 in; 540R: 141.85 in; 600M: NSL 148.8-152.8 in 520M MSL: 132.0 in Loader Lift Capacity (Full Height) 520M (4WD): NSL 3,335-3,612 lb, MSL 2,460-2,661 lb; 540M: NSL 2,394-2,666 lb, MSL 3,117-3,309 lb; 540R: 3,406 lb; 600M: NSL 3,104-3,236 lb 520M MSL: 2,606 lb (to maximum height, measured at pivot) Loader Breakout Force Not Published 520M MSL: 4,793 lb (measured at pivot) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours, whole-machine standard agricultural equipment term Not Published
