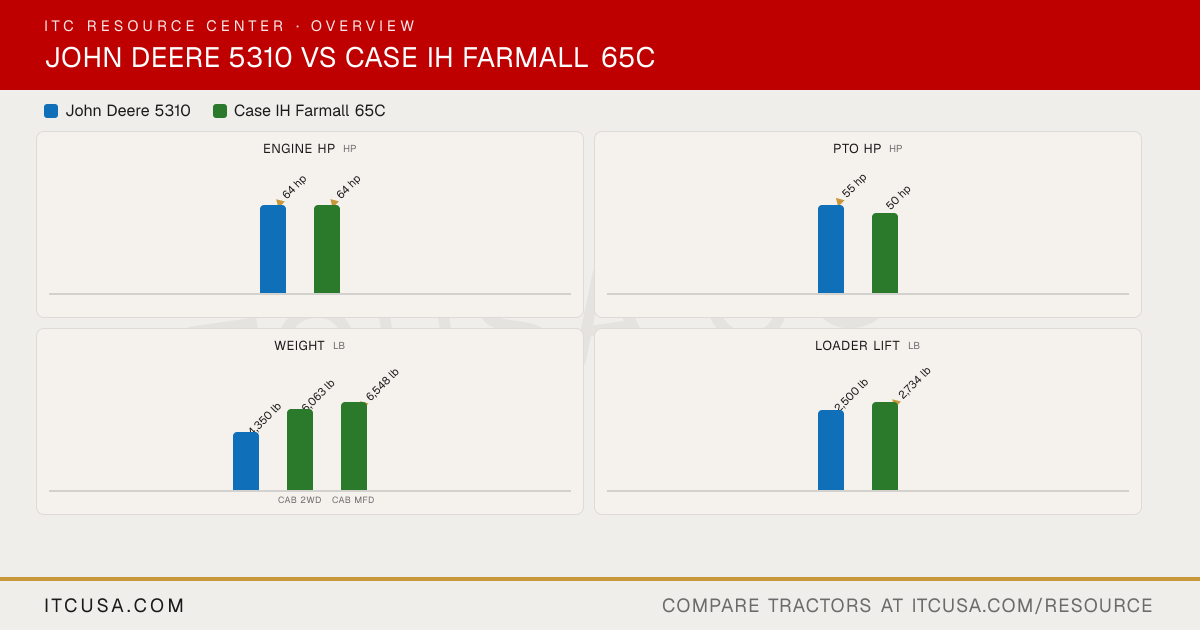

▶ EngineEngine Manufacturer John Deere FPT Engine Model 3029T F5DFL463B*G001 Engine Type 3-cylinder liquid-cooled diesel, turbocharged, direct injection Turbocharged diesel No. of Cylinders 3 4 Displacement 179 in³ 207 in³ Rated Engine Speed 2400 rpm 2300 rpm Engine Power (Gross) 64 hp 64 hp PTO Power 55 hp 50 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Dry type with safety element Not Published Fuel System Direct injection, rotary injection pump with electric shutoff Common rail Alternator 40 A Not Published ▶ HydraulicsPump Type Tandem gear pump Dual gear pumps Implement Flow 11.4 gpm 12.9 gpm Steering Flow 6.8 gpm 7.3 gpm Total Hydraulic Flow 18.2 gpm Not Published Overall Hydraulic Pump Flow 18.2 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 11.4 gpm Not Published No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Not Published 3 ▶ Fluid CapacityFuel Tank Capacity 18 gal (open station); 23 gal (cab) 23.8 gal Coolant Capacity 10 qt Not Published Crankcase Capacity 9 qt Not Published Transmission / Hydraulic System Capacity 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) Not Published Front Axle Fluid Capacity 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) Not Published ▶ PTO & HitchPTO Type Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch Independent PTO Rear 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I and II Category I/II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3374 lb 3,956 lb Lift Control Type Position and depth control, top link draft sensing Mechanical draft control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type CollarShift standard; SyncShuttle optional; PowrReverser optional Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) No. of Speeds 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse Max Travel Speed (Forward) 15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4) Not Published Max Travel Speed (Reverse) 13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse) Not Published Clutch Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) Wet clutch Differential Lock & Limited Slip Options Not Published Mechanical rear differential lock; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS; cab optional; two-wheel drive or MFWD Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disk, self-equalizing, self-adjusting Hydraulic wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Two-wheel drive or mechanical front wheel drive (MFWD) 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement Front Axle Rating 2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader) Not Published Drawbar Capacity 1675 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch) 145.8 in Overall Width 66.7 in 76 in Wheelbase 80.7 in 2WD: 85.8 in; MFD: 84 in Ground Clearance 18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar) Not Published Min. Turn Radius without Brakes 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) Not Published Height to Top of ROPS 88.7 in Not Published Height to Top of ROPS (folded) 75.5 in Not Published Height to Top of Cab Model 97.9 in 98 in ▶ WeightTractor Weight (Base) 4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab Cab 2WD: 6,063 lb; Cab MFD: 6,548 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 18.4R34 rear R1 Agricultural - Front 7.50-16 (2WD); 9.5-24 (MFWD) Not Published R1 Agricultural - Rear 14.9-28 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Compatible with L565 loader Loader Model 521; 541; 541 self-leveling L565 Loader Lift Height 521: 122 in; 541: 126 in; 541 self-leveling: 130 in 105 in Loader Lift Capacity (Full Height) 521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin) 2,734 lb Loader Breakout Force 521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin) 3,527 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
