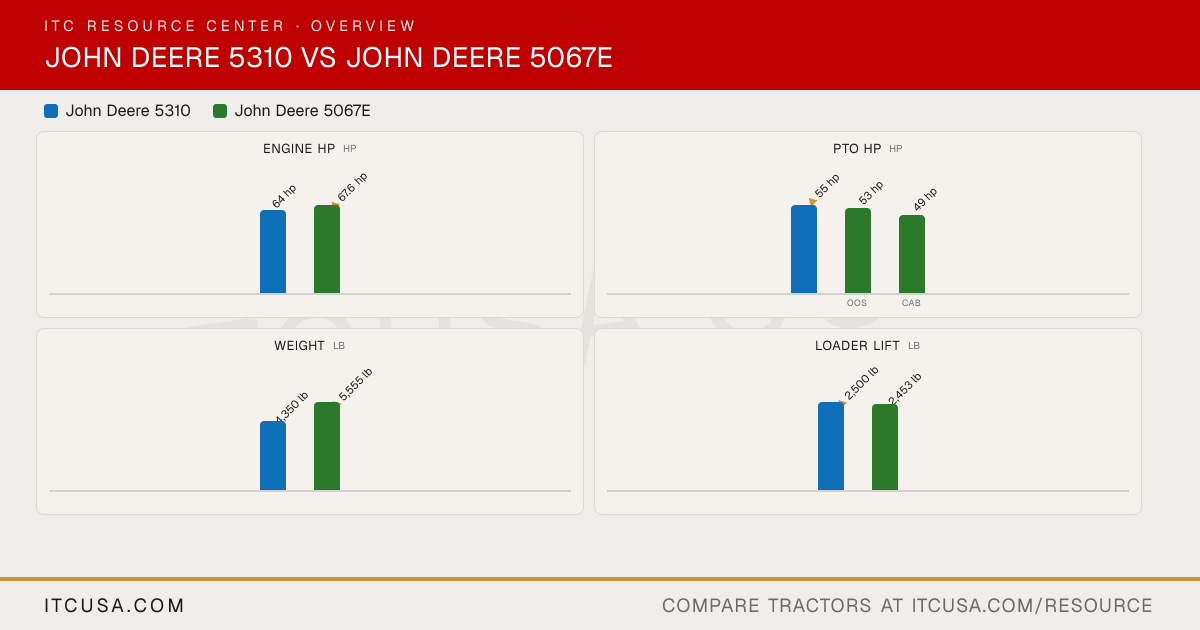

▶ EngineEngine Manufacturer John Deere John Deere Engine Model 3029T 3029H Engine Type 3-cylinder liquid-cooled diesel, turbocharged, direct injection Diesel, turbocharged No. of Cylinders 3 3 Displacement 179 in³ 179 in³ Rated Engine Speed 2400 rpm 2100 rpm Engine Power (Gross) 64 hp 67.6 hp PTO Power 55 hp OOS: 53 hp; Cab: 49 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid cooled with overflow reservoir Air Cleaner Dry type with safety element Dry type with safety element Fuel System Direct injection, rotary injection pump with electric shutoff Electronically controlled, high-pressure common rail Alternator 40 A OOS: 70 A; Cab: 110 A ▶ HydraulicsPump Type Tandem gear pump Tandem gear pump (implement + steering) Implement Flow 11.4 gpm 11.4 gpm Steering Flow 6.8 gpm 6.8 gpm Total Hydraulic Flow 18.2 gpm 18.2 gpm Overall Hydraulic Pump Flow 18.2 gpm 18.2 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow 11.4 gpm 11.4 gpm at a single rear SCV No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity 18 gal (open station); 23 gal (cab) OOS: 19.6 gal; Cab: 21.6 gal Coolant Capacity 10 qt Open operator station: 2.85 gal; Cab: 3.08 gal Crankcase Capacity 9 qt 9.0 qt (with filter) Transmission / Hydraulic System Capacity 10 gal (CollarShift and SyncShuttle, dry clutch); 11.5 gal (PowrReverser, wet clutch) 8.36 gal (9x3); 9.46 gal (12x12) Front Axle Fluid Capacity 5.2 qt (MFWD axle housing); 0.6 qt (each wheel hub); 5.7 qt (MFWD assembly) DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side ▶ PTO & HitchPTO Type Fully independent 540 rpm PTO; shiftable 540/540E with SyncShuttle transmission; lever operated clutch Independent PTO Rear 540 rpm (at 2400 engine rpm); 540E (at 1700 engine rpm, SyncShuttle) 540 rpm (SyncShuttle); 540/540E rpm (PowrReverser) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I and II Category II, convertible to I Hitch Lift Capacity Not Published 3,968 lb Hitch Lift Capacity (at 24”) 3374 lb 3,192 lb Lift Control Type Position and depth control, top link draft sensing Position control, draft control, adjustable rate of drop ▶ Transmission & DrivetrainTransmission Type CollarShift standard; SyncShuttle optional; PowrReverser optional SyncShuttle (standard); PowrReverser (optional) No. of Speeds 9 forward, 3 reverse (CollarShift and SyncShuttle); 12 forward, 12 reverse (PowrReverser) 9F/3R (SyncShuttle); 12F/12R (PowrReverser) Max Travel Speed (Forward) 15.62 mph (CollarShift and SyncShuttle, gear C-3); 15.52 mph (PowrReverser, gear C-4) 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) Max Travel Speed (Reverse) 13.33 mph (CollarShift and SyncShuttle, gear C-R); 17.95 mph (PowrReverser, gear C-4 reverse) 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) Clutch Dual dry clutch (CollarShift and SyncShuttle); multi-disk wet clutch (PowrReverser) Dual clutch, 11 in (PowrReverser) Differential Lock & Limited Slip Options Not Published Mechanical, rear ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS; cab optional; two-wheel drive or MFWD Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disk, self-equalizing, self-adjusting Hydraulically actuated wet disk brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Not Published Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment Front Axle Type Two-wheel drive or mechanical front wheel drive (MFWD) 2WD or MFWD Front Axle Rating 2720 to 4700 lb (2WD, by front tire, no loader); 2760 to 4620 lb (MFWD, by front tire, without loader) Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) Drawbar Capacity 1675 lb Adjustable drawbar with interchangeable hitch balls ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 123.6 in (2WD); 128.1 in (MFWD) (w/o 3P, less hitch, drawbar and front weights) (without 3-point hitch) 143.3 in Overall Width 66.7 in Not Published Wheelbase 80.7 in 80.7 in Ground Clearance 18.1 in (2WD front axle); 14.8 in (MFWD front axle); 15.8 in (2WD drawbar); 16.3 in (MFWD drawbar) Not Published Min. Turn Radius without Brakes 11.3 ft (2WD); 12.5 ft (MFWD engaged); 11.3 ft (MFWD disengaged) 137.8 in (2WD); 183.1 in (4WD) Height to Top of ROPS 88.7 in Not Published Height to Top of ROPS (folded) 75.5 in Not Published Height to Top of Cab Model 97.9 in Not Published ▶ WeightTractor Weight (Base) 4350 lb (2WD); 4750 lb (MFWD); add approximately 1000 lb with cab 5,555 to 6,812 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 6.50-16, 7.50-16, 9.5L-15, 27/9.5L-15, 11L-15 (2WD); 9.5L-16, 8.3-24, 9.5-24, 10.5/80-18, 11.2-24 (MFWD). Rear: 13.6-28, 14.9-24, 14.9-28, 16.9-24, 16.9-28, 16.9-30, 18.4-16.1 R1 Ag / R3 Turf / R4 Industrial / Snow R1 Agricultural - Front 7.50-16 (2WD); 9.5-24 (MFWD) 11L-15 R1 Agricultural - Rear 14.9-28 16.9-28 R3 Turf - Front Not Published 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) R3 Turf - Rear Not Published 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R4 Industrial - Front Not Published 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R4 Industrial - Rear Not Published 17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 512 or 520M Loader Model 521; 541; 541 self-leveling 512 or 520M Loader Lift Height 521: 122 in; 541: 126 in; 541 self-leveling: 130 in 512: 113 in; 520M: 132 in Loader Lift Capacity (Full Height) 521: 2500 lb; 541: 2500 lb; 541 self-leveling: 2800 lb (full at pin) 512: 2,453 lb; 520M: 3,523 lb Loader Breakout Force 521: 3485 lbf; 541: 3484 lbf; 541 self-leveling: 4125 lbf (at pin) 512: 4,781 lb; 520M: 4,641 lb ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
