John Deere 6120M vs Case IH Farmall 120C | Side-by-side comparison | ITC Resource Center
Compare Tractors

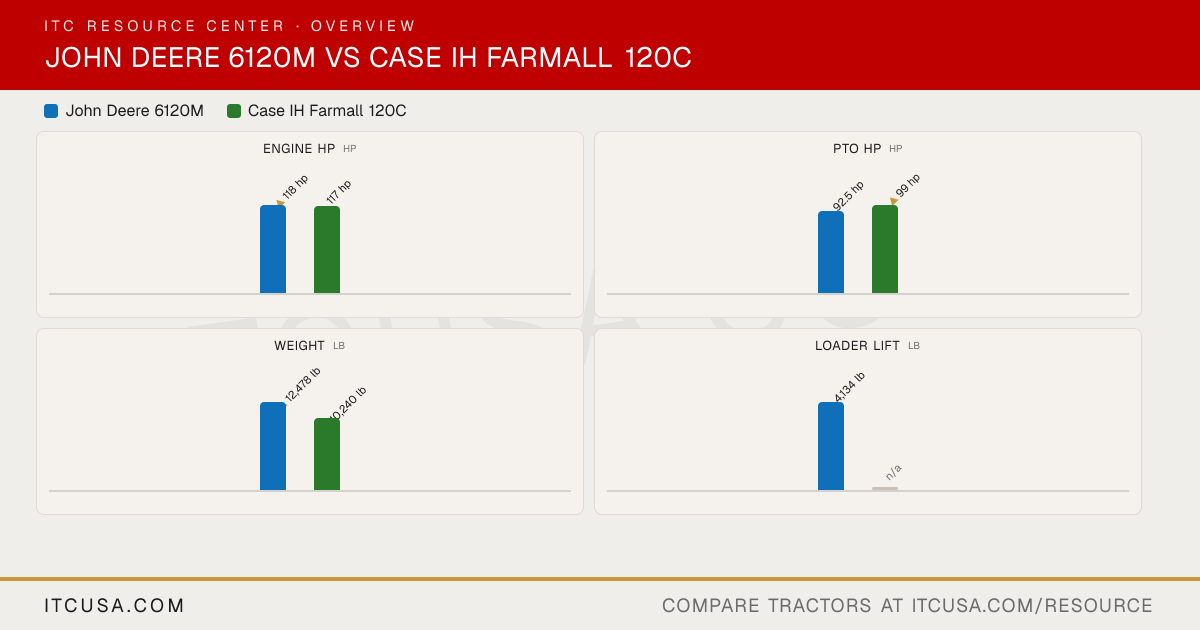

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere6120M
Case IHFarmall 120C
Engine Manufacturer
John Deere
FPT
Engine Model
PowerTech EWL
Not Published
Engine Type
Two-stage turbocharged with air-to-air charge air cooling and cooled exhaust gas recirculation
4-cylinder, turbocharged and aftercooled
No. of Cylinders
4
4
Displacement
275 in³
219.7 in³
Rated Engine Speed
2100 rpm
2300 rpm
Engine Power (Gross)
118 hp @ 2,100 rpm
117 hp
PTO Power
92.5 hp
99 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Cool-Gard II coolant, 5.8 gal system capacity
Not Published
Air Cleaner
Primary and secondary air filter elements
Not Published
Fuel System
Not Published
Not Published
Alternator
125 A, 14 V
Not Published
Pump Type
Not Published
Not Published
Implement Flow
Not Published
21.7 gpm
Steering Flow
Not Published
Not Published
Total Hydraulic Flow
21.1 gpm standard; 30.1 gpm optional
Not Published
Overall Hydraulic Pump Flow
21.1 gpm standard; 30.1 gpm optional
Not Published
Hydraulic System Type
Load-sensing open system with fixed displacement 2.1 in³ gear pump (standard); closed-center PFC load-sensing system with 2.7 in³ axial piston pump (optional)
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2 (mechanical, 200 Series; rear)
2
No. of Optional Remote Valves
Up to 4 total (rear, 450 Series electronic)
3 (or 3 with diverter)
Fuel Tank Capacity
51.5 gal
34.3 gal
Coolant Capacity
5.8 gal
Not Published
Crankcase Capacity
4.2 gal
Not Published
Transmission / Hydraulic System Capacity
13.7 gal (PowrQuad Plus/AutoQuad Plus)
Not Published
Front Axle Fluid Capacity
Two-piece front axle: axle housing 1.69 gal (suspended), 1.43 gal (without suspension); final drives per side 0.21 gal (no brake), 0.37 gal (with brake). Three-piece front axle: axle housing 1.9 gal; final drives per side 0.19 to 0.21 gal (no brake), 0.32 to 0.37 gal (with brake)
Not Published
PTO Type
Electro-hydraulically operated, oil-cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
12x12 electronic power shuttle (standard); 20x20 electronic power shuttle with creeper (optional)
No. of Speeds
24F/24R (standard PowrQuad Plus)
12F/12R (20F/20R with creeper optional)
Max Travel Speed (Forward)
25 mph
Not Published
Max Travel Speed (Reverse)
25 mph; standard 24F/24R PowrQuad PLUS
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Not Published
Electro-hydraulic differential lock; Class 1.0 MFD front axle with limited slip
Frame Type
Full frame design
Not Published
Steering
Hydrostatic steering
Not Published
Brakes
Hydraulically boosted service brakes
Not Published
Seat Suspension & Adjustability
Economy: seat with mechanical suspension, standard; standard: seat with air-suspension, optional
Not Published
Front Axle Type
MFWD standard, 2WD optional; suspended MFWD (TLS) optional, also available with front brakes
Class 1.0 MFD with limited slip
Front Axle Rating
9,655 lb (MFWD)
Not Published
Drawbar Capacity
Standard duty, field use: 4,960 lb, 3,085 lb, 2,645 lb; heavy-duty, field operation: 6,610 lb, 3,960 lb, 3,520 lb (maximum permissible static vertical load, drawbar extended 9.8 in, 13.8 in, 15.7 in, CAT 2)
Not Published
Overall Width
100.4 in (maximum width for road travel)
Not Published
Wheelbase
94.5 in
92.5 in (MFD)
Ground Clearance
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Not Published
Min. Turn Radius without Brakes
14 ft (4.36 m) (6110M & 6120M)
Not Published
Height to Top of ROPS
108.1 to 115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station, front-wheel drive axle)
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
106.2 in
Overall Length
172.3 in
158.2 in (MFD cab)
Tractor Weight (Base)
12,478 lb (total weight, without fuel in tank)
10,240 lb (MFD, cab, without ballast)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R1 Agricultural - Front
Not Published
Not Published
R1 Agricultural - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
R3 Turf - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
Quick Attach Loader System
Automatic mast latch
Not Published
Loader Model
600R; 620R (up to MY19); 640R (up to MY19)
L635
Loader Lift Height
600R: 154 in
L635: up to 149 in
Loader Lift Capacity (Full Height)
600R: 4,134 lb (at pivot, full height)
Not Published
Loader Breakout Force
600R: 5,875 lb (boom breakout at pivot)
Not Published
Warranty Length & Coverage
Basic 24 months or 2,000 hours total, factory limited warranty
