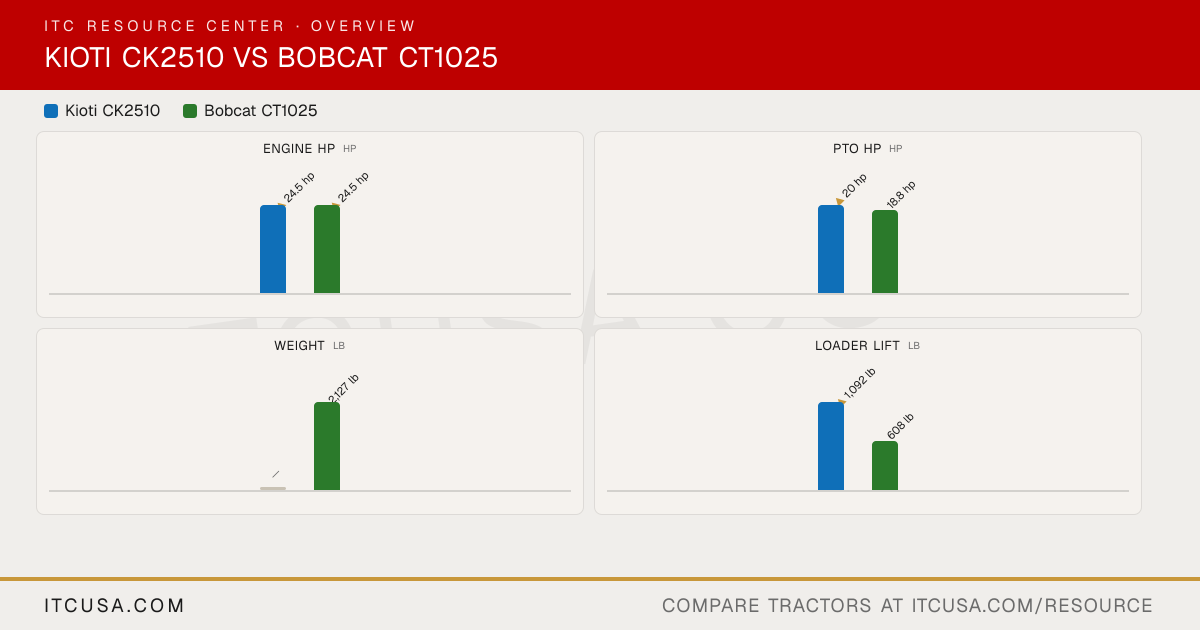

▶ EnginePTO Power 20 hp 18.8 hp Alternator Not Published alternator Air Cleaner Not Published Dry type, replaceable Engine Type Liquid-cooled, inline, diesel Diesel Fuel System Indirect injection Diesel, Common Rail Direct Injection (CRDI) Displacement 85 in³ 69.01 in³ No. of Cylinders 3 3 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Liquid-cooled water cooled Engine Manufacturer KIOTI (Daedong) Shibaura Engine Power (Gross) 24.5 hp 24.5 hp Engine Emissions Constraints Tier 4 Tier 4 Engine Model — Shibaura 0.3 gal 3-cyl diesel ▶ WeightWeight with ROPS and Loader Not Published 2,127 LB Approximate Operating Weight Weight with Cab and Loader Not Published 1652.00 KG ▶ WarrantyWarranty Length & Coverage Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor 24 months or 1,500 hours (whichever occurs first) ▶ HydraulicsPump Type Gear pump Gear Steering Flow Not Published 16.90 Implement Flow Not Published 26.00 Total Hydraulic Flow 11.3 gpm 6.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published NOT FOUND Overall Hydraulic Pump Flow 11.3 gpm 7.2 gpm No. of Optional Remote Valves 1 1 Pair No. of Standard Remote Valves 0 Std. (4 port) ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Transmission Independent Lift Control Type Position control Hydraulic Position Control System Hitch Lift Capacity 1,203.0 lb (at 24 in) 700 lb. Mid-PTO Availability Optional Standard: 2200 rpm Category, 3-Point Hitch Category 1 Category 1 Limited Hitch Lift Capacity (at 24”) 1,203.0 lb 700 lb ▶ Tire OptionsR3 Turf - Rear 33X12.50-16.5 41x14.0-20 R3 R3 Turf - Front 23X8.50-12 27x8.5-15 R3 Tire Size & Options R1 Agricultural, R3 Turf, R4 Industrial Agricultural, Turf, Industrial R4 Industrial - Rear 12-16.5 15-19.5 R4 R4 Industrial - Front 23X8.50-12 25x8.5-14 R4 R1 Agricultural - Rear 11.2-16 26x12.00-12 R1 Agricultural - Front 7.0-12 18x8.5-10 ▶ Fluid CapacityCoolant Capacity Not Published 0.9 gal Crankcase Capacity Not Published 2 gal Fuel Tank Capacity 6.6 gal 7.1 gal. Front Axle Fluid Capacity Not Published 1.6 gal Transmission / Hydraulic System Capacity Not Published 5.8 gal ▶ Loader & AttachmentsLoader Lift Height 87.8 in 71.9 in. Loader Breakout Force 1,843 lb 1554 lb. Quick Attach Loader System Not Published Standard Quick Attach Mounting System Loader Lift Capacity (Full Height) 1,092 lb 608 lb. Loader Model — FL6 ▶ Transmission & DrivetrainClutch Dry disc Clutch-free (hydrostatic) No. of Speeds 6F/2R 2-Range Transmission Type Gear Hydrostatic Max Travel Speed (Forward) 10.8 mph 11.1 mph (17.8 km/hr.) Max Travel Speed (Reverse) Not Published 7.6 mph (12.2 km/hr.) Differential Lock & Limited Slip Options Rear differential lock (standard) Std ▶ Chassis, Steering & ControlsBrakes Wet disc Wet Multi-disc Steering Hydrostatic power Hydrostatic Power Steering Frame Type Not Published 4x4 MFWD 4WD Front Axle Type Not Published MFWD Drawbar Capacity Not Published 650.00 KG Front Axle Rating Not Published Manual(MEC) Seat Suspension & Adjustability Not Published Std ▶ Dimensions & ManeuverabilityWheelbase 59.8 in 55.1 in. Overall Width 49.2 in 46.0 in. Ground Clearance 13.4 in 6.3 in. Height to Top of ROPS 82.8 in 87.56 in Height to Top of Cab Model Not Published Not Published Height to Top of ROPS (folded) Not Published 2520.00 MM Min. Turn Radius without Brakes Not Published 8.3 ft. (2.54 m) Overall Length with 3-Point Hitch 109.1 in 99.3 in. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
