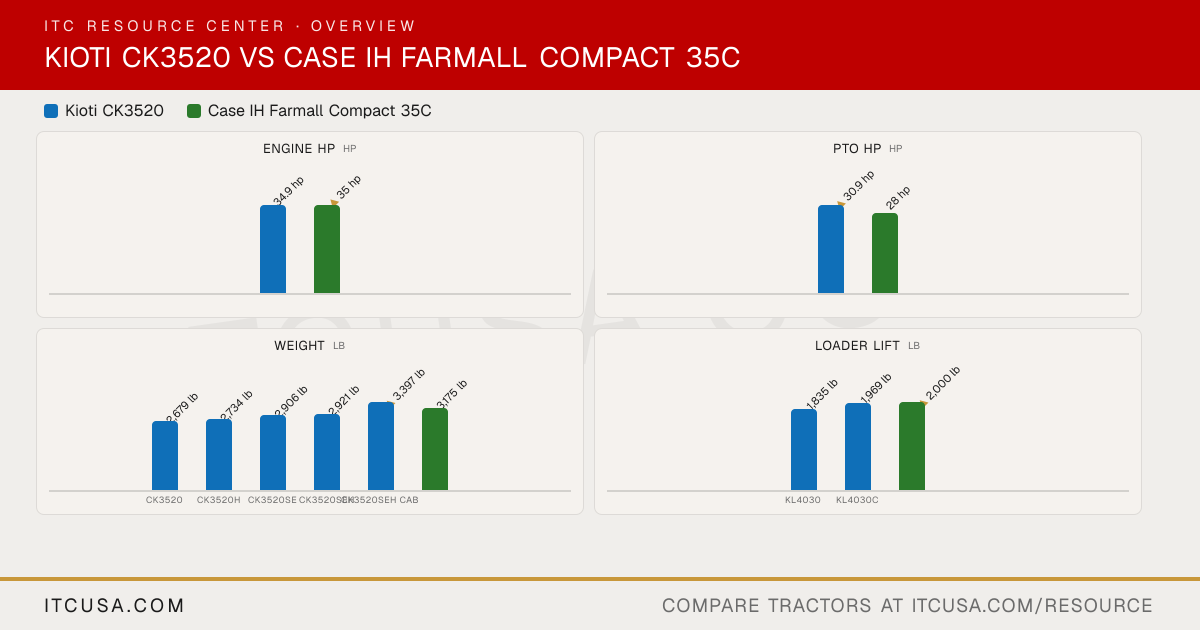

▶ EngineEngine Manufacturer KIOTI Not Published Engine Model CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 Not Published Engine Type 3-cylinder, in-line, liquid-cooled diesel Diesel, 3-cylinder, turbocharged No. of Cylinders 3 3 Displacement 111.4 in³ 116 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 34.9 hp 35 hp PTO Power CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp 28 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Dry element Replaceable dry element Fuel System Not Published Common rail direct injection Alternator Not Published 70 A ▶ HydraulicsPump Type Gear Not Published Implement Flow CK3520, CK3520H: 7.14 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 6.86 gpm 8.2 gpm Steering Flow CK3520, CK3520H: 4.59 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 4.46 gpm 5.3 gpm Total Hydraulic Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm Not Published Overall Hydraulic Pump Flow CK3520, CK3520H: 11.73 gpm; CK3520SE, CK3520SEH, CK3520SEH CAB: 11.33 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves CK3520, CK3520H: 0; CK3520SE, CK3520SEH, CK3520SEH CAB: 2 1 No. of Optional Remote Valves CK3520, CK3520H: 2 2 ▶ Fluid CapacityFuel Tank Capacity 9.0 gal 10.5 gal Coolant Capacity 0.89 gal Not Published Crankcase Capacity 1.6 gal Not Published Transmission / Hydraulic System Capacity 5.8 gal Not Published Front Axle Fluid Capacity 1.6 gal Not Published ▶ PTO & HitchPTO Type CK3520, CK3520H: Live; CK3520SE, CK3520SEH, CK3520SEH CAB: Independent Independent rear PTO, electro-hydraulic engagement PTO Rear 540 rpm (1-3/8 in, 6 splines) 540 rpm Mid-PTO Availability Optional, 2,000 rpm Optional, 2000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,270 lb 1,808 lb Hitch Lift Capacity (at 24”) 1,631 lb 1,433 lb Lift Control Type Position control Mechanical draft control (MDC) ▶ Transmission & DrivetrainTransmission Type CK3520: Manual; CK3520H, CK3520SEH, CK3520SEH CAB: Hydrostatic; CK3520SE: Synchro shuttle 3-range hydrostatic (HST) No. of Speeds CK3520: 9F/3R; CK3520H, CK3520SEH, CK3520SEH CAB: Infinite, 3 range; CK3520SE: 12F/12R infinitely variable, 3 ranges Max Travel Speed (Forward) CK3520: 14.64 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 14.88 mph; CK3520SE: 15.53 mph 14.8 mph Max Travel Speed (Reverse) CK3520: 9.56 mph; CK3520H, CK3520SEH, CK3520SEH CAB: 10.41 mph; CK3520SE: 15.14 mph Not Published Clutch CK3520: Dry dual stage; CK3520H, CK3520SE: Dry single stage; CK3520SEH, CK3520SEH CAB: None (hydrostatic) Not Applicable Differential Lock & Limited Slip Options Rear differential lock (standard) Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Not Published Adjustable suspension seat Front Axle Type 4WD, manual engagement Mechanical Front Drive (MFD) Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.9 in 122.5 in Overall Width 54.5 in 66.4 in Wheelbase 65.7 in 66 in Ground Clearance 13.4 in Not Published Min. Turn Radius without Brakes 107.5 in Not Published Height to Top of ROPS 92.9 in 93.5 in Height to Top of ROPS (folded) Not Published 74.1 in Height to Top of Cab Model 92.5 in Not Published ▶ WeightTractor Weight (Base) CK3520: 2,679 lb; CK3520H: 2,734 lb; CK3520SE: 2,906 lb; CK3520SEH: 2,921 lb; CK3520SEH CAB: 3,397 lb 3,175 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front 7-16 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 28x8.5-15/6 25x8.50-14 R3 Turf - Rear 41x14-20/4 41x14.00-20 R4 Industrial - Front 27x8.5-15 25x8.50-14 R4 Industrial - Rear 15-19.5 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick-Attach faceplate; quick-connect loader mounting (L350A) Loader Model KL4030; KL4030C L350A Loader Lift Height 98.4 in (KL4030 and KL4030C loaders) 105 in Loader Lift Capacity (Full Height) KL4030: 1,835 lb; KL4030C: 1,969 lb 2,000 lb Loader Breakout Force KL4030: 3,464 lb; KL4030C: 2,989 lb 2,640 lbf ▶ WarrantyWarranty Length & Coverage 24 months unlimited hours, parts and labor (non-commercial); powertrain 72 months unlimited hours, parts and labor 6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain ▶ ITC Company AccessoriesAccessories that fit None tagged yet
