Case IH Farmall Compact 35C vs Kioti CK3520
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 9 measurable specs, the Kioti CK3520 leads 5 categories to 4. Machine pages: Case IH Farmall Compact 35C and Kioti CK3520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

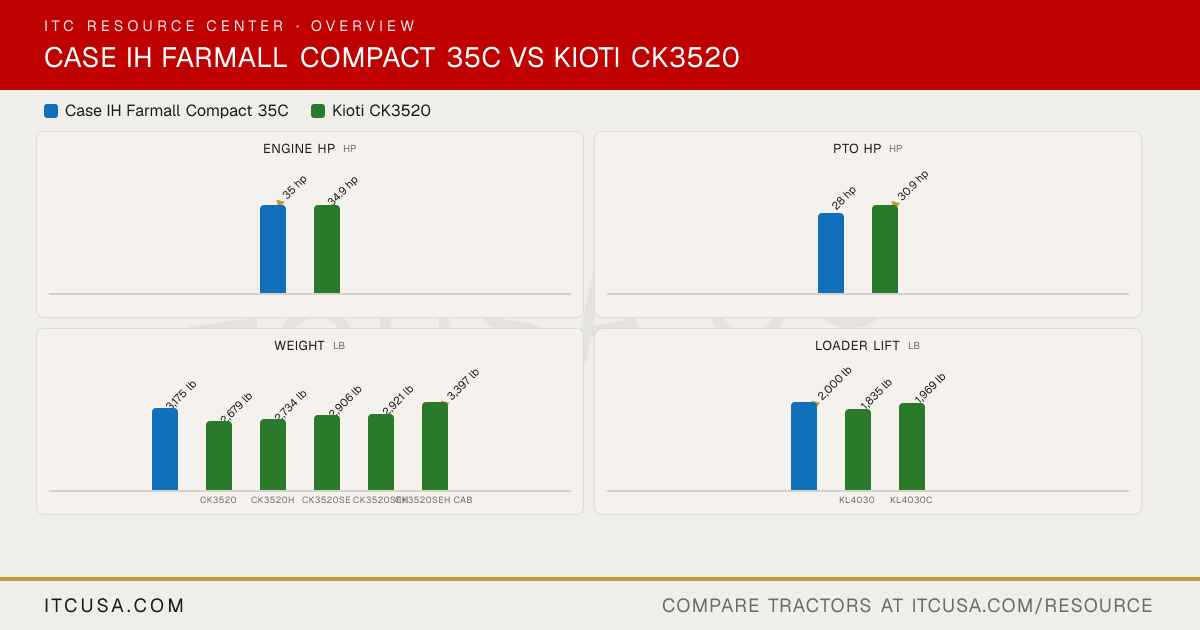

Category Verdict
| Spec | Case IH Farmall Compact 35C | Kioti CK3520 |
|---|---|---|
| Engine HP (hp) | ▲ 35 hp | 34.9 hp |
| PTO HP (hp) | 28 hp | ▲ 30.9 hp |
| Weight (lb) | 3,175 lb | ▲ 3,397 lb |
| Loader Lift (lb) | ▲ 2,000 lb | 1,969 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | ▲ 1,631 lb |
| Lift Height (in) | ▲ 105 in | 98.4 in |
| Breakout Force (lbf) | 2,640 lbf | ▲ 3,464 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | ▲ 11.7 gpm |
| Travel Speed (mph) | ▲ 14.8 mph | 14.6 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall Compact 35C | KiotiCK3520 |
|---|
| Engine Manufacturer | Not Published | KIOTI |
|---|---|---|
| Engine Model | Not Published | CK3520: 3H-TM4-U; CK3520H: 3H-TH4-U; CK3520SE, CK3520SEH, CK3520SEH CAB: 3H-TM4-U2 / 3H-TH4-U2 |
| Engine Type | Diesel, 3-cylinder, turbocharged | 3-cylinder, in-line, liquid-cooled diesel |
| No. of Cylinders | 3 | 3 |
| Displacement | 116 in³ | 111.4 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 35 hp | 34.9 hp |
| PTO Power | 28 hp | CK3520, CK3520SE: 30.9 hp; CK3520H, CK3520SEH, CK3520SEH CAB: 28.9 hp |
| Engine Emissions Constraints | Tier 4 | Not Published |
| Cooling System Type | Not Published | Liquid-cooled |
| Air Cleaner | Replaceable dry element | Dry element |
| Fuel System | Common rail direct injection | Not Published |
| Alternator | 70 A | Not Published |
Case IH Farmall Compact 35C vs Kioti CK3520: Quick Answers
- Which has more horsepower, the Case IH Farmall Compact 35C or the Kioti CK3520?
- The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 34.9 hp hp for the Kioti CK3520.
- Which has more PTO horsepower, the Case IH Farmall Compact 35C or the Kioti CK3520?
- The Kioti CK3520 leads on pto hp at 30.9 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
- Which is heavier, the Case IH Farmall Compact 35C or the Kioti CK3520?
- The Kioti CK3520 leads on weight at 3,397 lb lb, compared to 3,175 lb lb for the Case IH Farmall Compact 35C.
- Which has more loader lift capacity, the Case IH Farmall Compact 35C or the Kioti CK3520?
- The Case IH Farmall Compact 35C leads on loader lift at 2,000 lb lb, compared to 1,969 lb lb for the Kioti CK3520.
- Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the Kioti CK3520?
- The Kioti CK3520 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 35C.
