Which has more horsepower, the Bad Boy Tractors 4035 or the Case IH Farmall Compact 35C?

The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 34.9 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Case IH Farmall Compact 35C?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Case IH Farmall Compact 35C?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,540 lb lb for the Case IH Farmall Compact 35C.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Case IH Farmall Compact 35C?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall Compact 35C.

Bad Boy Tractors 4035 vs Case IH Farmall Compact 35C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Bad Boy Tractors 4035 leads 5 categories to 2. Machine pages: Bad Boy Tractors 4035 and Case IH Farmall Compact 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Case IH Farmall Compact 35C
Engine HP (hp)	34.9 hp	▲ 35 hp
PTO HP (hp)	▲ 30 hp	28 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,540 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,808 lb
Lift Height (in)	104 in	▲ 105 in
Breakout Force (lbf)	▲ 3,660 lbf	2,640 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	8.2 gpm
Travel Speed (mph)	19.1 mph	—

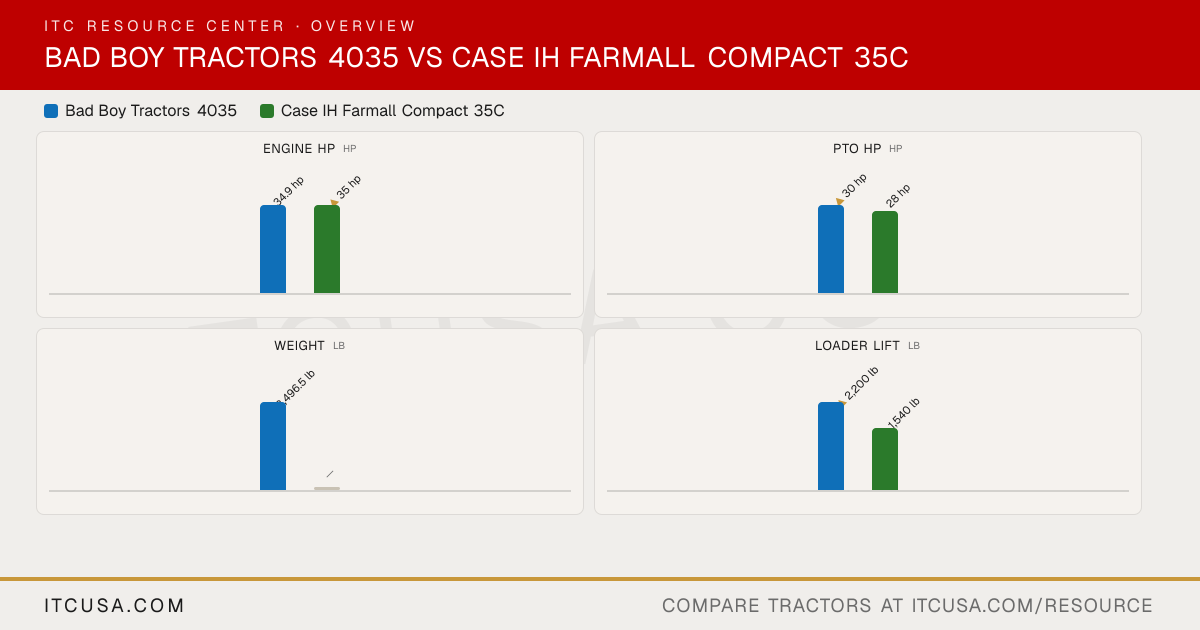

The headline numbers at a glance.

Bad Boy Tractors 4035Case IH Farmall Compact 35C

Engine HPhp

34.9 hp

▲35 hp

PTO HPhp

▲30 hp

28 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,540 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,808 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	Case IHFarmall Compact 35C


PTO Power	30 hp	28 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Diesel, naturally aspirated
Fuel System	Diesel fuel	Common Rail Direct Injection
Displacement	104.7 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	Not Published
Cooling System Type	Water cooled	Not Published
Engine Manufacturer	A1700N4-BUTC_4	Not Published
Engine Power (Gross)	34.9 hp	35 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	Not Published

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	8.2 gpm
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
No. of Optional Remote Valves	Optional (up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Independent rear PTO (electro-hydraulic engagement)
Lift Control Type	Position Control	Not Published
Hitch Lift Capacity	3,306.9 lb	Not Published
Mid-PTO Availability	Not Published	Available, 2,000 rpm
Category, 3-Point Hitch	Cat 1	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,808 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	Not Published
R4 Industrial - Rear	43X16.00-20	Not Published
R4 Industrial - Front	28X8.50-15	Not Published
R1 Agricultural - Rear	12.4-24 6PR	Not Published
R1 Agricultural - Front	8.0-16 4PR	Not Published

Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published

Loader Lift Height	104 in	105 in
Loader Breakout Force	3,660 lb	2,640 lb
Quick Attach Loader System	SSQA	Not Published
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,540 lb

Clutch	None (HST)	Not Published
No. of Speeds	3 Range	12x12 (mechanical shuttle) / 3-range (hydrostatic)
Transmission Type	HST (3-range)	Mechanical shuttle or hydrostatic
Max Travel Speed (Forward)	19.08 mph (range C)	Not Published
Max Travel Speed (Reverse)	19.08 mph (range C)	Not Published
Differential Lock & Limited Slip Options	Differential lock	Not Published

Brakes	Wet multi-disc	Not Published
Steering	Fully hydraulic power steering	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.7 in	Not Published
Overall Width	56.7 in	Not Published
Overall Length	134.88 in.	—
Ground Clearance	15 in	Not Published
Height to Top of ROPS	96.85 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	Not Published

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet
