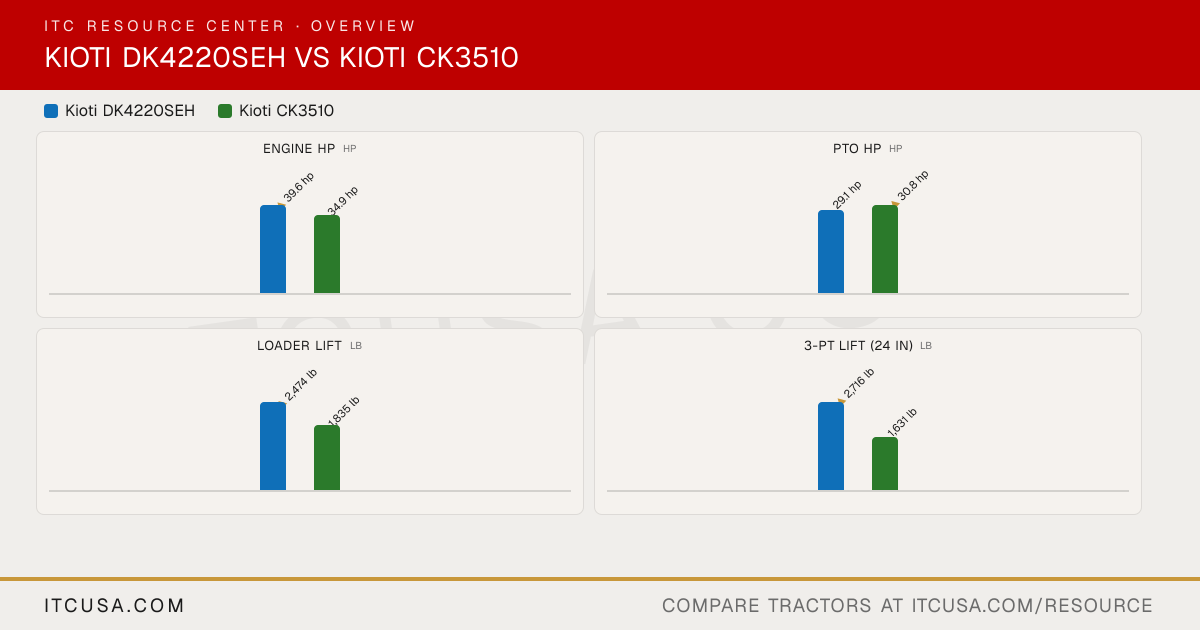

▶ EngineEngine Manufacturer KIOTI (Daedong) KIOTI (Daedong) Engine Model 3H-TH4D CK3510: 3H-TM4A; CK3510 HST: 3H-TH4A Engine Type 3-cylinder, liquid-cooled diesel 3 cylinder, in-line vertical, water-cooled 4-cycle diesel, CRDI No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 39.6 hp 34.9 hp PTO Power 29.1 hp CK3510: 31.8 hp; CK3510 HST: 30.8 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry element Not Published Fuel System Not Published Common rail direct injection Alternator Not Published 45 A, 12 V ▶ HydraulicsPump Type Gear Gear Implement Flow 9.62 gpm Not Published Steering Flow 6.87 gpm Not Published Total Hydraulic Flow 16.5 gpm 11.7 gpm Overall Hydraulic Pump Flow 16.5 gpm 11.7 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 0 (2 optional) No. of Optional Remote Valves Not Published 2 (4 ports) ▶ Fluid CapacityFuel Tank Capacity 12.7 gal 9.0 gal Coolant Capacity 2.1 gal Not Published Crankcase Capacity 1.95 gal Not Published Transmission / Hydraulic System Capacity 11.4 gal Not Published Front Axle Fluid Capacity 1.48 gal Not Published ▶ PTO & HitchPTO Type Independent Live PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) Optional, 2,000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,998 lb 1,631 lb at 24 in Hitch Lift Capacity (at 24”) 2,716 lb 1,631 lb Lift Control Type Position Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) CK3510: Manual; CK3510 HST: Hydrostatic No. of Speeds 3 ranges (hydrostatic, infinite speeds) CK3510: 9F/3R; CK3510 HST: Infinite, 3 range Max Travel Speed (Forward) 18.45 mph CK3510: 14.62 mph; CK3510 HST: 14.85 mph Max Travel Speed (Reverse) 12.92 mph CK3510: 9.55 mph; CK3510 HST: 13.37 mph Clutch None (hydrostatic transmission) CK3510: Dry dual stage; CK3510 HST: Dry single stage Differential Lock & Limited Slip Options Rear differential lock (standard) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Deluxe suspension seat Not Published Front Axle Type Mechanical 4WD 4WD, mechanical engagement (standard) Front Axle Rating Not Published Not Published Drawbar Capacity 1,655 lb (max. drawbar vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 125.5 in 120.9 in Overall Width 62.8 in 55.1 in Wheelbase 71.3 in 65.7 in Ground Clearance 14.5 in 13.4 in Min. Turn Radius without Brakes 102.8 in (with brake applied) 8.0 ft (with brake applied) Height to Top of ROPS 96.8 in 99.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 93.0 in 91.7 in ▶ WeightTractor Weight (Base) 3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB) CK3510: 2,679 lb; CK3510 HST: 2,734 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial, R14 Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5) R1 Agricultural - Front 8-16 7-16 R1 Agricultural - Rear 13.6-24 11.2-24 R3 Turf - Front 29-12.5-15 28x8.5-15/6 R3 Turf - Rear 21.5L-16.1 41x14-20/4 R4 Industrial - Front 10-16.5 27x8.5-15 R4 Industrial - Rear 14.9-24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach (QA) bucket, 66 in or 72 in Quick attach (QA) bucket, 60 in or 66 in Loader Model KL5520; KL5521 (Cab models) KL4010; KL4030 Loader Lift Height KL5520: 107.7 in; KL5521: 107.7 in 98.4 in (KL4010 and KL4030 loaders) Loader Lift Capacity (Full Height) KL5520: 2,474 lb; KL5521: 2,474 lb 1,835 lb (KL4010 and KL4030 loaders) Loader Breakout Force KL5520: 3,895 lb; KL5521: 3,895 lb 3,464 lb (KL4010 and KL4030 loaders) ▶ WarrantyWarranty Length & Coverage Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor ▶ ITC Company AccessoriesAccessories that fit
