Across 8 measurable specs, the Kioti DK4220SEH leads 7 categories to 1. Machine pages: Kioti CK3510 and Kioti DK4220SEH.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Kioti CK3510 | Kioti DK4220SEH |
|---|
| Engine HP (hp) | 34.9 hp | ▲ 39.6 hp |
| PTO HP (hp) | ▲ 30.8 hp | 29.1 hp |
| Loader Lift (lb) | 1,835 lb | ▲ 2,474 lb |
| 3-Pt Lift (24 in) (lb) | 1,631 lb | ▲ 2,716 lb |
| Lift Height (in) | 98.4 in | ▲ 107.7 in |
| Breakout Force (lbf) | 3,464 lbf | ▲ 3,895 lbf |
| Hydraulic Flow (gpm) | 11.7 gpm | ▲ 16.5 gpm |
| Travel Speed (mph) | 15.5 mph | ▲ 18.4 mph |

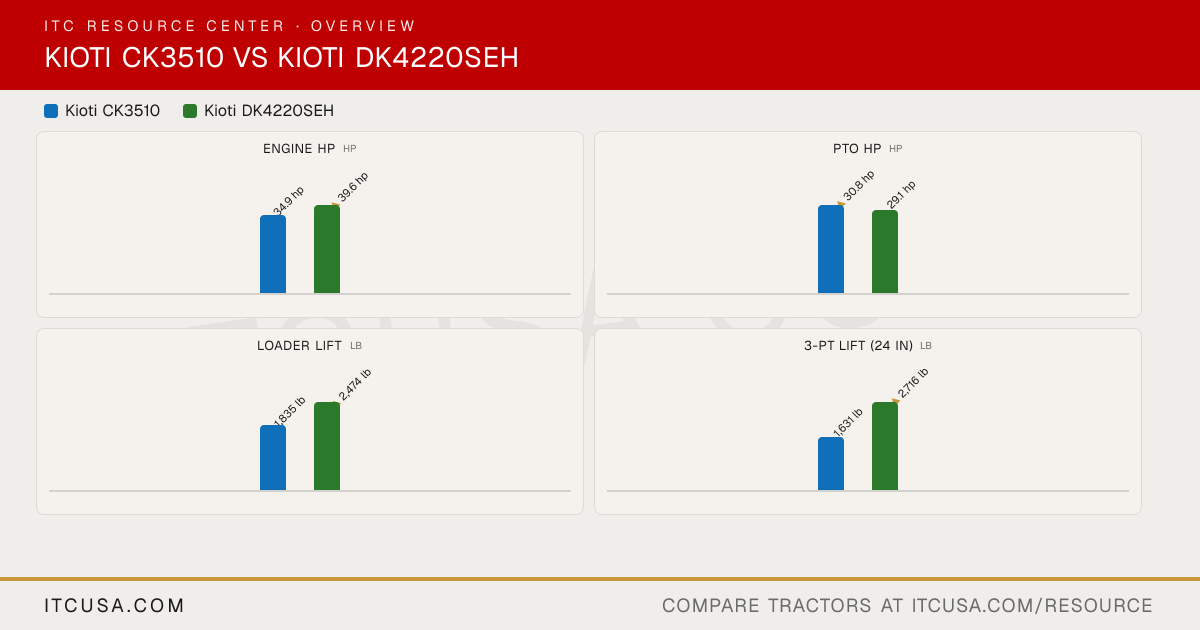

The headline numbers at a glance.
Kioti CK3510Kioti DK4220SEH
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | KiotiCK3510 | KiotiDK4220SEH |
|---|
|
|---|
| PTO Power | 30.8 hp | 29.1 hp |
|---|
| Alternator | 45 A, 12 V | Not Published |
|---|
| Air Cleaner | Not Published | Dry element |
|---|
| Engine Type | Liquid-cooled, diesel, inline | 3-Cyl Diesel (Naturally Aspirated) |
|---|
| Fuel System | Common rail direct injection | Not Published |
|---|
| Displacement | 111.4 in³ | 111.4 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Engine Manufacturer | KIOTI (Daedong) | KIOTI (Daedong) |
|---|
| Engine Power (Gross) | 34.9 hp | 39.6 hp |
|---|
| Engine Emissions Constraints | Not Published | Tier 4 |
|---|
|
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Warranty Length & Coverage | Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor | Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor |
|---|
|
|---|
| Pump Type | Not Published | Gear |
|---|
| Steering Flow | Not Published | 6.87 gpm |
|---|
| Implement Flow | Not Published | 9.62 gpm |
|---|
| Total Hydraulic Flow | 11.7 gpm | 16.49 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| Overall Hydraulic Pump Flow | 11.7 gpm | 16.49 gpm |
|---|
| No. of Optional Remote Valves | 2 (optional) | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | 2 |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| PTO Type | Live | Independent |
|---|
| Lift Control Type | Position control | Position |
|---|
| Hitch Lift Capacity | 1,631 lb at 24 in | 2,998 lbs @ lower link ball |
|---|
| Mid-PTO Availability | Optional | Optional (2,000 rpm) |
|---|
| Category, 3-Point Hitch | Category 1 | Category I |
|---|
| Hitch Lift Capacity (at 24”) | 1,631 lb | 2,716 lbs @ 24 in behind |
|---|
|
|---|
| R3 Turf - Rear | 41X14-20 | 5.7 gal-16.1 |
|---|
| R3 Turf - Front | 28X8.50-15 | 29X12.5-15 |
|---|
| Tire Size & Options | R1 Agricultural, R3 Turf, R4 Industrial | R1 Agricultural, R3 Turf, R4 Industrial |
|---|
| R4 Industrial - Rear | 15-19.5 | 14.9-24 |
|---|
| R4 Industrial - Front | 27X8.50-15 | 10-16.5 |
|---|
| R1 Agricultural - Rear | 11.2-24 | 13.6-24 |
|---|
| R1 Agricultural - Front | 7-16 | 8.0-16 |
|---|
|
|---|
| Coolant Capacity | Not Published | 2.1 gal |
|---|
| Crankcase Capacity | Not Published | 1.95 gal |
|---|
| Fuel Tank Capacity | 9.0 gal | 12.7 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 1.48 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 11.4 gal |
|---|
|
|---|
| Loader Lift Height | 98.4 in | 107.7 in |
|---|
| Loader Breakout Force | 3,464 lb | 3,895.0 lb |
|---|
| Quick Attach Loader System | Quick attach (QA) bucket | Quick attach (QA) bucket |
|---|
| Loader Lift Capacity (Full Height) | 1,835 lb | 2,474.0 lb |
|---|
|
|---|
| Clutch | Dry disc (TractorData) | None |
|---|
| No. of Speeds | Gear: 9F/3R; Hydro: Not Published | 3 ranges w/ infinite speeds |
|---|
| Transmission Type | 9-speed gear; hydrostatic | Hydrostatic |
|---|
| Max Travel Speed (Forward) | Gear: 14.6 mph; Hydro: 15.5 mph | 18.45 mph |
|---|
| Max Travel Speed (Reverse) | Gear: 9.6 mph; Hydro: 15.8 mph | 12.92 mph |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Differential lock: Rear standard |
|---|
|
|---|
| Brakes | Wet disc | Wet Disc Type |
|---|
| Steering | Power steering | Hydrostatic Power Steering |
|---|
| Frame Type | Not Published | Not Published |
|---|
| Front Axle Type | Not Published | Mechanical 4WD |
|---|
| Drawbar Capacity | Not Published | Max. Drawbar vertical load: 1,655 lbs; Max. Trailer loading weight: 9,480 lbs |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Seat Suspension & Adjustability | Not Published | Deluxe suspension seat |
|---|
|
|---|
| Wheelbase | 65.7 in | 71.3 in |
|---|
| Overall Width | R1: 55.1 in; R4: 63.1 in | 62.8 in |
|---|
| Ground Clearance | 13.4 in | 14.5 in |
|---|
| Height to Top of ROPS | 99.2 in | 96.8 in |
|---|
| Height to Top of Cab Model | 91.7 in | 93.0 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Overall Length with 3-Point Hitch | 120.9 in | 125.5 in |
|---|
|
|---|
| Accessories that fit | | |
|---|
Kioti CK3510 vs Kioti DK4220SEH: Quick Answers
- Which has more horsepower, the Kioti CK3510 or the Kioti DK4220SEH?
- The Kioti DK4220SEH leads on engine hp at 39.6 hp hp, compared to 34.9 hp hp for the Kioti CK3510.
- Which has more PTO horsepower, the Kioti CK3510 or the Kioti DK4220SEH?
- The Kioti CK3510 leads on pto hp at 30.8 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.
- Which has more loader lift capacity, the Kioti CK3510 or the Kioti DK4220SEH?
- The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 1,835 lb lb for the Kioti CK3510.
- Which has more three-point hitch lift capacity, the Kioti CK3510 or the Kioti DK4220SEH?
- The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 1,631 lb lb for the Kioti CK3510.
