Bad Boy Tractors 3026 vs Kioti CK3510

Across 9 measurable specs, the Kioti CK3510 leads 9 categories to 0. Machine pages: Bad Boy Tractors 3026 and Kioti CK3510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	KiotiCK3510

▶Engine
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Model	A1100N2	CK3510: 3H-TM4A; CK3510 HST: 3H-TH4A
Engine Type	3 cylinder, water-cooled diesel, natural aspiration, swirl chamber	3-cylinder, common-rail, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	71.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	25 hp	34.9 hp
PTO Power	18 hp	CK3510: 31.8 hp; CK3510 HST: 30.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Common rail direct injection
Alternator	50 A, 12 V	75 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Gear
Implement Flow	4.3 gpm	Not Published
Steering Flow	3.1 gpm	Not Published
Total Hydraulic Flow	7.4 gpm	11.7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	11.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0 (2 optional)
No. of Optional Remote Valves	1	2 (4 ports)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	9.0 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Live
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	1,631 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	CK3510: Manual; CK3510 HST: Hydrostatic
No. of Speeds	3 range (L/M/H)	CK3510: 9F/3R; CK3510 HST: Infinite, 3 range
Max Travel Speed (Forward)	14.8 mph	CK3510: 14.62 mph; CK3510 HST: 14.85 mph
Max Travel Speed (Reverse)	14.8 mph	CK3510: 9.55 mph; CK3510 HST: 13.37 mph
Clutch	Dry, single plate	CK3510: Dry dual stage; CK3510 HST: Dry single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	4WD, mechanical engagement (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	53.8 in	55.1 in
Wheelbase	65.7 in	65.7 in
Ground Clearance	16.4 in	13.4 in
Min. Turn Radius without Brakes	Not Published	8.0 ft (with brake applied)
Height to Top of ROPS	91.4 in	99.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	91.7 in
Overall Length	110 in	120.9 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	2,106 lb	CK3510: 2,679 lb; CK3510 HST: 2,734 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 front / 14x17.5 rear)	Front AG 7-16 (Turf 28x8.5-15/6, Industrial 27x8.5-15); Rear AG 11.2-24 (Turf 41x14-20/4, Industrial 15-19.5)
R1 Agricultural - Front	7-16 6PR	7-16
R1 Agricultural - Rear	11.2-20	11.2-24
R3 Turf - Front	Not Published	28x8.5-15/6
R3 Turf - Rear	Not Published	41x14-20/4
R4 Industrial - Front	25x8.50-14	27x8.5-15
R4 Industrial - Rear	14x17.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Quick attach (QA) bucket, 60 in or 66 in
Loader Model	BBL300	KL4010; KL4030
Loader Lift Height	86 in	98.4 in (KL4010 and KL4030 loaders)
Loader Lift Capacity (Full Height)	1,314 lb	1,835 lb (KL4010 and KL4030 loaders)
Loader Breakout Force	1,960 lbf	3,464 lb (KL4010 and KL4030 loaders)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti CK2610/20 CK3510/20 CK4010/20 Brush Screen Insert $250.00 Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

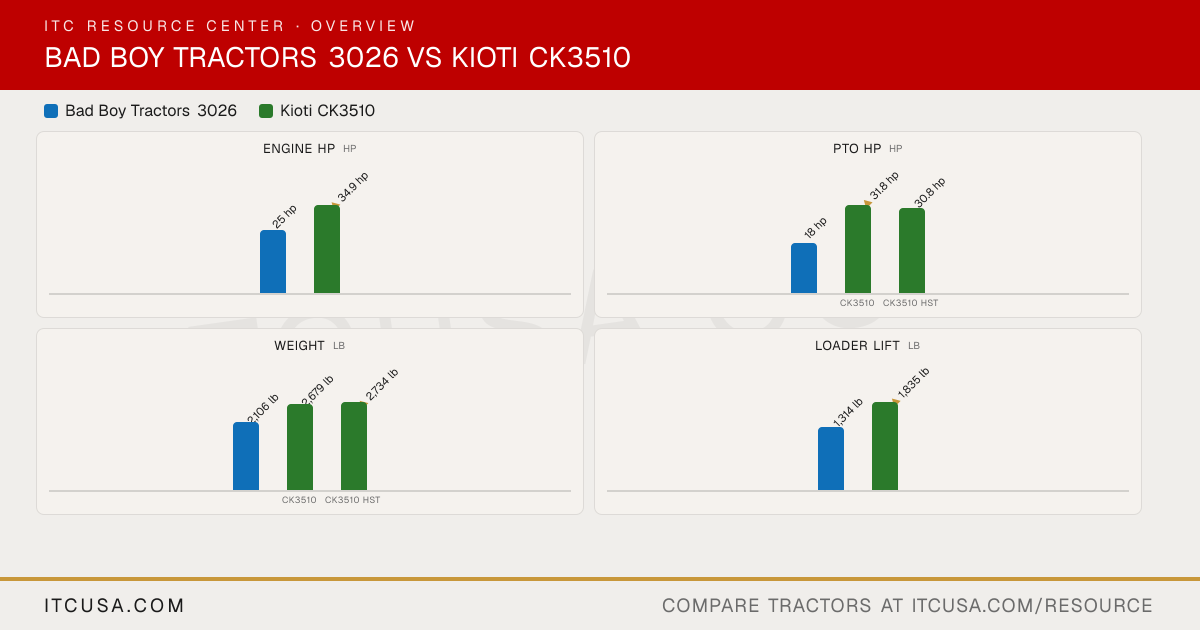

Bad Boy Tractors 3026 vs Kioti CK3510: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the Kioti CK3510?

The Kioti CK3510 leads on engine hp at 34.9 hp hp, compared to 25 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the Kioti CK3510?

The Kioti CK3510 leads on pto hp at 31.8 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the Kioti CK3510?

The Kioti CK3510 leads on weight at 2,734 lb lb, compared to 2,106 lb lb for the Bad Boy Tractors 3026.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the Kioti CK3510?

The Kioti CK3510 leads on loader lift at 1,835 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the Kioti CK3510?

The Kioti CK3510 leads on 3-pt lift (24 in) at 1,631 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
