Which has more horsepower, the Bad Boy Tractors 4035 or the Kioti CK3510?

They are effectively tied: both machines are rated at 34.9 hp hp for engine hp.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kioti CK3510?

The Kioti CK3510 leads on pto hp at 30.8 hp hp, compared to 30 hp hp for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kioti CK3510?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,835 lb lb for the Kioti CK3510.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kioti CK3510?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,631 lb lb for the Kioti CK3510.

Bad Boy Tractors 4035 vs Kioti CK3510

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Bad Boy Tractors 4035 leads 6 categories to 1 (1 tied). Machine pages: Bad Boy Tractors 4035 and Kioti CK3510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035	Kioti CK3510
Engine HP (hp)	34.9 hp	34.9 hp
PTO HP (hp)	30 hp	▲ 30.8 hp
Weight (lb)	3,496.5 lb	—
Loader Lift (lb)	▲ 2,200 lb	1,835 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	1,631 lb
Lift Height (in)	▲ 104 in	98.4 in
Breakout Force (lbf)	▲ 3,660 lbf	3,464 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	11.7 gpm
Travel Speed (mph)	▲ 19.1 mph	15.5 mph

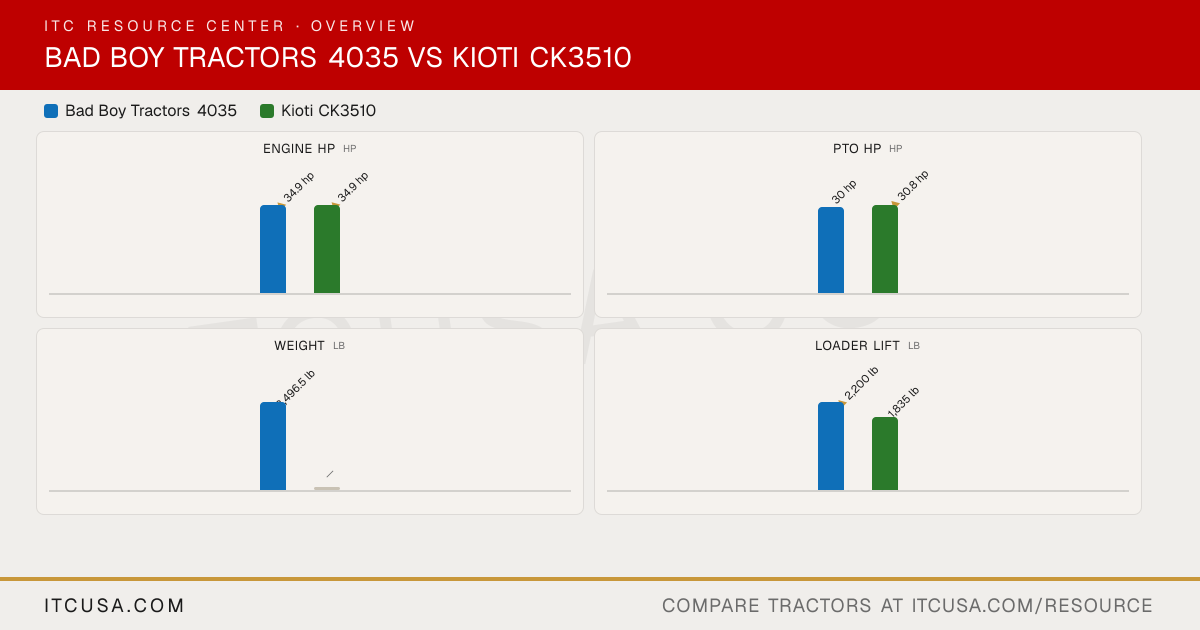

The headline numbers at a glance.

Bad Boy Tractors 4035Kioti CK3510

Engine HPhp

▲34.9 hp

PTO HPhp

30 hp

▲30.8 hp

Weightlb

3,496.5 lb

—

Loader Liftlb

▲2,200 lb

1,835 lb

3-Pt Lift (24 in)lb

▲2,425 lb

1,631 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KiotiCK3510


PTO Power	30 hp	30.8 hp
Alternator	50 A, 12 V	45 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Liquid-cooled, diesel, inline
Fuel System	Diesel fuel	Common rail direct injection
Displacement	104.7 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Liquid-cooled
Engine Manufacturer	A1700N4-BUTC_4	KIOTI (Daedong)
Engine Power (Gross)	34.9 hp	34.9 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published

Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Published

Warranty Length & Coverage	6-year powertrain warranty	Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor

Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	Not Published
Implement Flow	8.2 gpm	Not Published
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	11.7 gpm
Hydraulic System Type	Open Center	Open center
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	11.7 gpm
No. of Optional Remote Valves	Optional (up to 2)	2 (optional)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 RPM	540 rpm
PTO Type	Independent	Live
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	1,631 lb at 24 in
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Cat 1	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	1,631 lb

R3 Turf - Rear	Not Published	41X14-20
R3 Turf - Front	Not Published	28X8.50-15
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	43X16.00-20	15-19.5
R4 Industrial - Front	28X8.50-15	27X8.50-15
R1 Agricultural - Rear	12.4-24 6PR	11.2-24
R1 Agricultural - Front	8.0-16 4PR	7-16

Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	9.0 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published

Loader Lift Height	104 in	98.4 in
Loader Breakout Force	3,660 lb	3,464 lb
Quick Attach Loader System	SSQA	Quick attach (QA) bucket
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,835 lb

Clutch	None (HST)	Dry disc (TractorData)
No. of Speeds	3 Range	Gear: 9F/3R; Hydro: Not Published
Transmission Type	HST (3-range)	9-speed gear; hydrostatic
Max Travel Speed (Forward)	19.08 mph (range C)	Gear: 14.6 mph; Hydro: 15.5 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	Gear: 9.6 mph; Hydro: 15.8 mph
Differential Lock & Limited Slip Options	Differential lock	Mechanical rear differential lock

Brakes	Wet multi-disc	Wet disc
Steering	Fully hydraulic power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.7 in	65.7 in
Overall Width	56.7 in	R1: 55.1 in; R4: 63.1 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	13.4 in
Height to Top of ROPS	96.85 in	99.2 in
Height to Top of Cab Model	Not Applicable	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	120.9 in
