Bad Boy Tractors 4035 Cab vs Kioti DK4220SEH

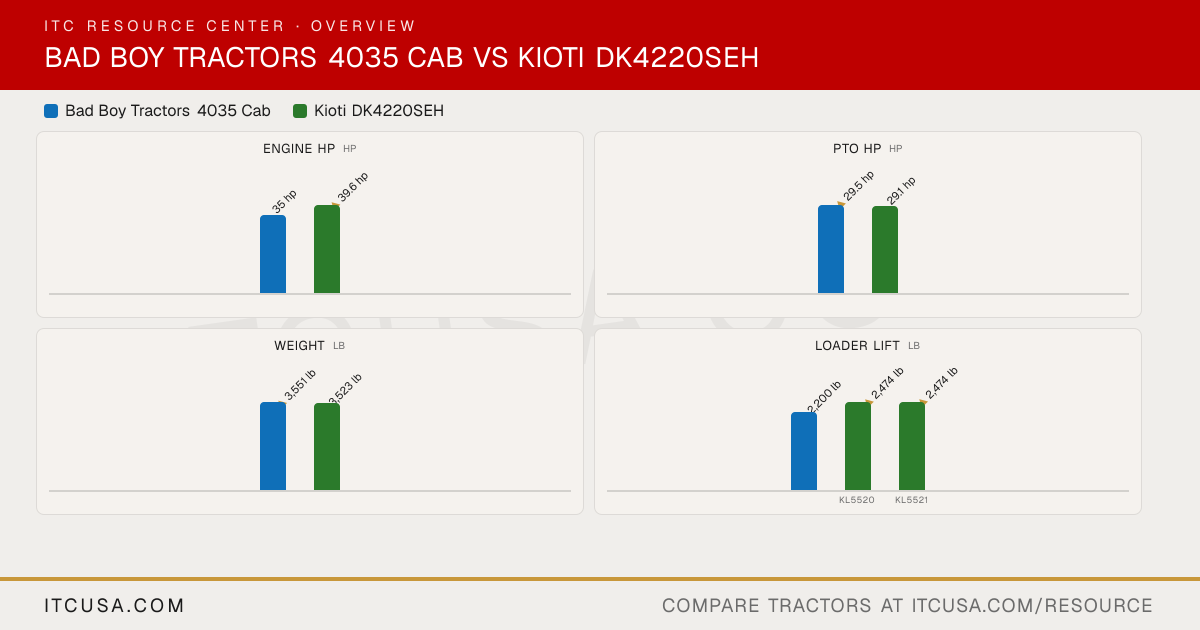

Across 9 measurable specs, the Kioti DK4220SEH leads 7 categories to 2. Machine pages: Bad Boy Tractors 4035 Cab and Kioti DK4220SEH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KiotiDK4220SEH

▶Engine
Engine Manufacturer	TYM	KIOTI (Daedong)
Engine Model	A1700N4-BUTC_4	3H-TH4D
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-Cyl Diesel (Naturally Aspirated)
No. of Cylinders	3	3
Displacement	104.7 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	39.6 hp
PTO Power	29.5 hp	29.1 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry element
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	9.62 gpm
Steering Flow	4.4 gpm	6.87 gpm
Total Hydraulic Flow	12.6 gpm	16.5 gpm
Overall Hydraulic Pump Flow	12.6 gpm	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 2	Not Published
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	12.7 gal
Coolant Capacity	1.32 gal	2.1 gal
Crankcase Capacity	1.14 gal	1.95 gal
Transmission / Hydraulic System Capacity	9.77 gal	11.4 gal
Front Axle Fluid Capacity	1.69 gal	1.48 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	3,306.9 lb	2,998 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,716 lb
Lift Control Type	Position control	Position
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	Hydrostatic
No. of Speeds	3 range (HST)	3 ranges w/ infinite speeds
Max Travel Speed (Forward)	18.21 mph	18.45 mph
Max Travel Speed (Reverse)	18.21 mph	12.92 mph
Clutch	None (HST)	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Hydrostatic Power Steering
Brakes	Wet, multi-disc	Wet Disc Type
Seat Suspension & Adjustability	Heated leather seat (cab)	Deluxe suspension seat
Front Axle Type	Selectable 4WD	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	125.5 in
Overall Width	56.3 in	62.8 in
Wheelbase	65.7 in	71.3 in
Ground Clearance	13.19 in	14.5 in
Min. Turn Radius without Brakes	Not Published	102.8 in (with brake applied)
Height to Top of ROPS	Not Published	96.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	93.0 in
▶Weight
Tractor Weight (Base)	3,551 lb	3,522 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	7-16	8-16
R1 Agricultural - Rear	11.2-24	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	28x8.50-15	10-16.5
R4 Industrial - Rear	43x16.00-20	14.9-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Quick attach (QA) bucket, 66 in / 72 in
Loader Model	BBL400	KL5520; KL5521
Loader Lift Height	104 in	107.7 in (KL5520 and KL5521)
Loader Lift Capacity (Full Height)	2,200 lb	2,474 lb (KL5520 and KL5521)
Loader Breakout Force	3,660 lb	3,895 lb (KL5520 and KL5521)
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	Tractors (Non-Commercial Application): 24 months, unlimited hours, parts & labor; Non-commercial powertrain (engine and driveline) on qualifying tractors: 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Bad Boy dealer near you→Find a KIOTI dealer near you→

Bad Boy Tractors 4035 Cab vs Kioti DK4220SEH: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on engine hp at 39.6 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kioti DK4220SEH?

The Bad Boy Tractors 4035 Cab leads on pto hp at 29.5 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kioti DK4220SEH?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,522 lb lb for the Kioti DK4220SEH.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035 Cab.
