Kioti HX1151 vs John Deere 6120M | Side-by-side comparison | ITC Resource Center
Compare Tractors

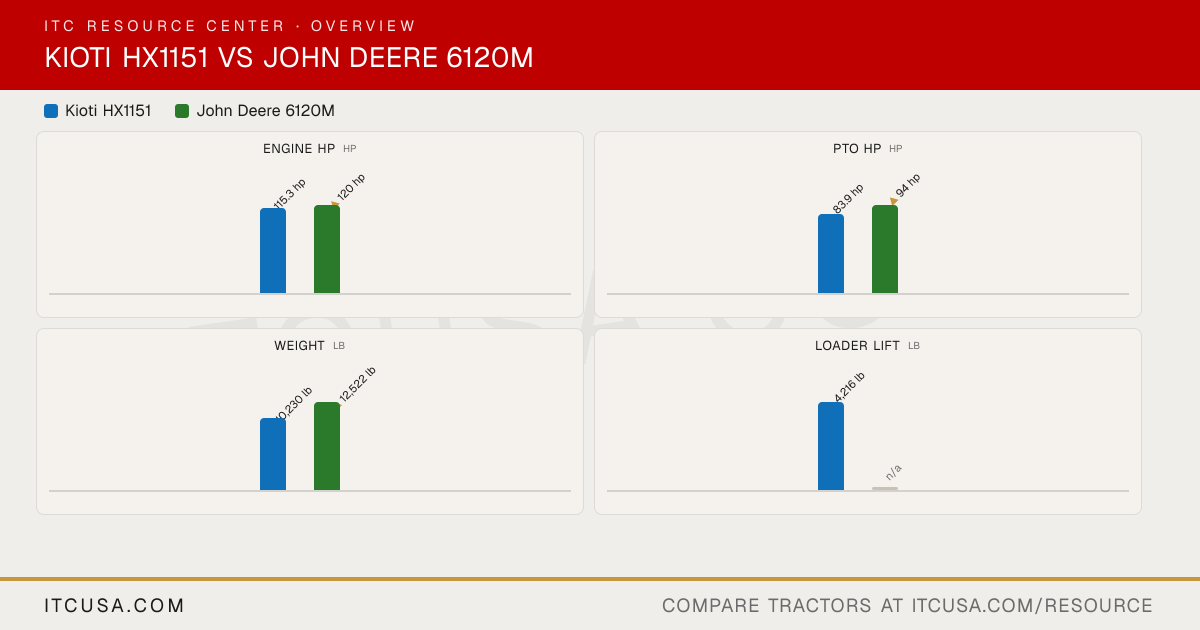

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
2-piece front axle (types 730/733/735): axle housing 1.69 gal (suspended axle) or 1.43 gal (axle without suspension); final drive per side 0.21 gal (without brake), 0.37 gal (with brake). 3-piece front axle version 1 (type 740 M40): axle housing 1.90 gal; final drive per side 0.21 gal (without brake), 0.37 gal (with brake). 3-piece front axle version 2 (types 730/733/735): axle housing 1.7 gal; final drive per side 0.21 gal (without brake), 0.47 gal (with brake)
PTO Type
Independent
Electro-hydraulically operated, oil cooled, multi-disc; standard 1.5 in 540/1000 reversible shaft
176.6 in (basic 242.5 lb front weight, cab + MFWD, to draft link in horizontal position)
Overall Width
88.6 in
100.4 in (maximum width for road travel)
Wheelbase
94.9 in
94.5 in
Ground Clearance
18.9 in
Front-wheel drive axle: 11.3-25.1 in depending on front tire SRI; differential housing with drawbar: 13.7-23.5 in depending on rear tire SRI (cab + MFWD)
Min. Turn Radius without Brakes
12.7 ft (with brake applied)
14 ft (4.36 m) (6110M & 6120M)
Height to Top of ROPS
Not Published
105.2-115.0 in depending on rear tire SRI (ground to extended ROPS, without beacon light, open operator's station)
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
111.9 in
105.4-115.3 in depending on rear tire SRI (ground to cab roof, without beacon light)
