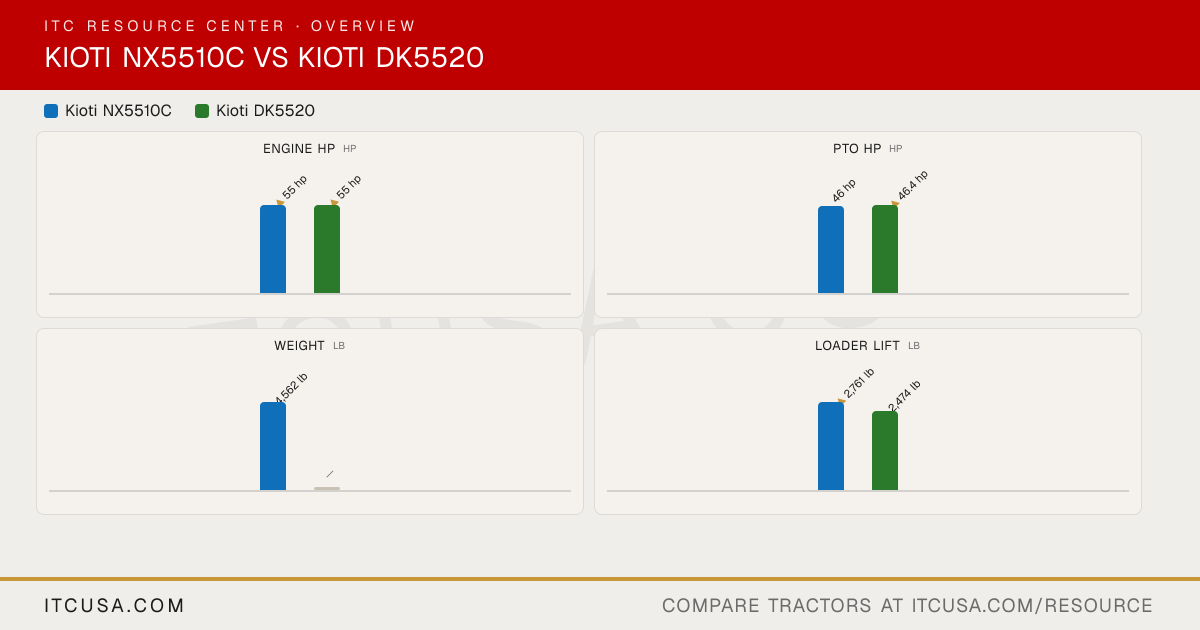

▶ EngineEngine Manufacturer KIOTI KIOTI Engine Model 3F183T 3HT-TM4B Engine Type 3-cylinder, in-line vertical, water-cooled, 4-cycle, turbocharged, common rail diesel 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 55 hp 55 hp PTO Power 46 hp 46.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type element Not Published Fuel System Common Rail Diesel (CRDI) Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Gear Gear Implement Flow Not Published 9.62 gpm Steering Flow Not Published 4.94 gpm Total Hydraulic Flow 16.5 gpm 14.56 gpm Overall Hydraulic Pump Flow 16.5 gpm 14.56 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 None (2 optional) No. of Optional Remote Valves 1 2 ▶ Fluid CapacityFuel Tank Capacity 14.8 gal 11.9 gal Coolant Capacity 2.0 gal 0.89 gal Crankcase Capacity 1.58 gal 1.95 gal Transmission / Hydraulic System Capacity 14.53 gal 11.4 gal Front Axle Fluid Capacity 1.8 gal 1.48 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional (2,000 rpm) No mid PTO (N/A) Category, 3-Point Hitch Category I Category II Hitch Lift Capacity 3,538 lb 2,998 lb Hitch Lift Capacity (at 24”) 3,177 lb 2,716 lb Lift Control Type Position with Draft Control Position ▶ Transmission & DrivetrainTransmission Type Synchro Shuttle Synchronized shuttle No. of Speeds 24x24 8F/8R Max Travel Speed (Forward) 17.35 mph 16.71 mph Max Travel Speed (Reverse) 15.42 mph 16.28 mph Clutch Dry Type Single Stage Dry single stage Differential Lock & Limited Slip Options Differential Lock: Rear (Standard) Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power Steering Hydrostatic power steering Brakes Wet Multi Disc Wet multi-disc Seat Suspension & Adjustability Adjustable Air-Ride Seat Deluxe suspension seat Front Axle Type Not Published Mechanical 4WD Front Axle Rating Not Published Not Published Drawbar Capacity 1,655 lb (max. drawbar vertical load) 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Width 65.7 in 62.8 in Wheelbase 75.6 in 71.3 in Ground Clearance 15.7 in 14.5 in Min. Turn Radius without Brakes 10.0 ft 102.7 in (with brake applied) Height to Top of ROPS Not Published 96.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 94.1 in Not Published Overall Length 139.6 in (with 3-point hitch) 124.8 in ▶ WeightTractor Weight (Base) 4,562 lb (with AG tires) 3,373 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf, Industrial Agricultural, Turf, Industrial, R14 R1 Agricultural - Front 9.5-16 8-16 R1 Agricultural - Rear 16.9-24 13.6-24 R3 Turf - Front 29-12.5-15 29-12.5-15 R3 Turf - Rear 21.5L-16.1 21.5L-16.1 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 17.5-24 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator Quick attach (QA) bucket, 66 in or 72 in Loader Model KL6010 KL5520 Loader Lift Height KL6010: 108.3 in (to pivot pin) KL5520: 107.7 in (at pivot pin) Loader Lift Capacity (Full Height) KL6010: 2,761 lb (at pivot pin, max height) KL5520: 2,474 lb (at pivot pin) Loader Breakout Force KL6010: 3,727 lb (at pivot pin) KL5520: 3,895 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Non-commercial: basic 2 years, powertrain 72 months, unlimited hours, parts and labor Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 72 months, unlimited hours ▶ ITC Company AccessoriesAccessories that fit
