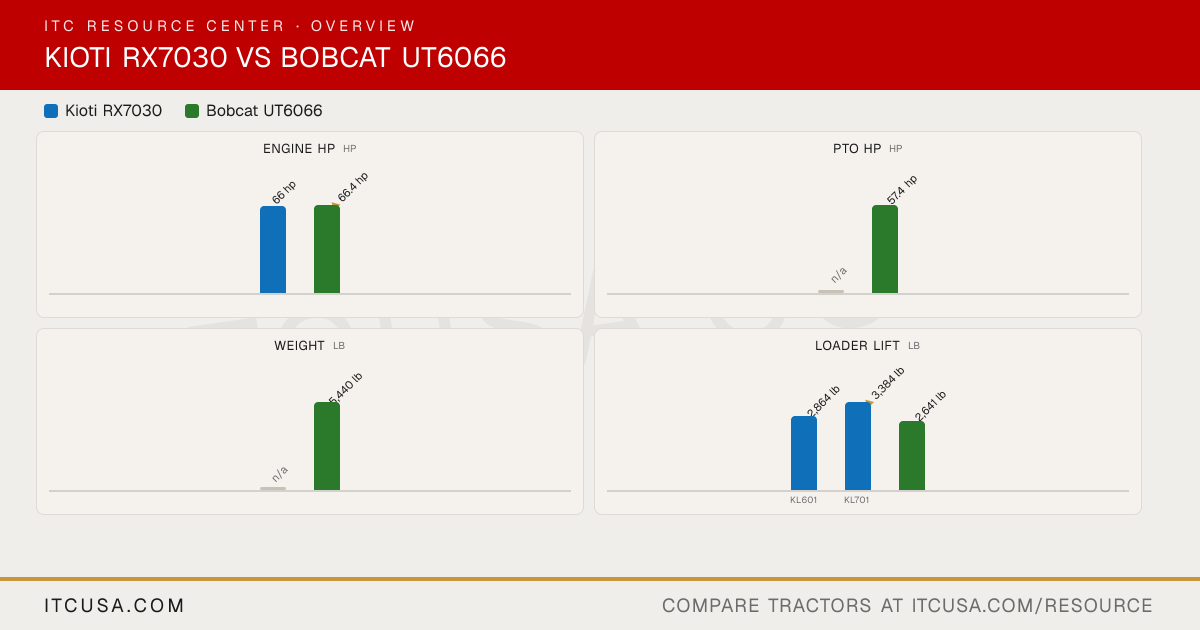

▶ EngineEngine Manufacturer Daedong Daedong Engine Model 4F243DTP-A 4HT-TP4A Engine Type 4-cylinder, liquid-cooled turbocharged diesel Turbocharged diesel No. of Cylinders 4 4 Displacement 148.6 in³ 148.6 in³ Rated Engine Speed 2500 rpm 2600 rpm Engine Power (Gross) 66 hp 66.4 hp PTO Power Not Published 57.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Not Published Air Cleaner Not Published Not Published Fuel System Not Published Common rail Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Not Published Implement Flow 11 gpm 11.0 gpm Steering Flow 6.9 gpm 6.9 gpm Total Hydraulic Flow 17.9 gpm 17.9 gpm Overall Hydraulic Pump Flow 17.9 gpm 17.9 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves Not Published 2 ▶ Fluid CapacityFuel Tank Capacity Not Published 22.5 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 540E rpm 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 4,575 lb 3594 lb Lift Control Type Position and draft control Position with draft control ▶ Transmission & DrivetrainTransmission Type Power shuttle 3-range powershuttle with electronic clutch No. of Speeds 24F/24R 12 forward, 12 reverse Max Travel Speed (Forward) Not Published 19.8 mph Max Travel Speed (Reverse) Not Published 19.5 mph Clutch Hydraulic wet disc Electronic clutch Differential Lock & Limited Slip Options Rear differential lock (mechanical) Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering with tilt wheel Brakes Wet disc Wet multi-disc Seat Suspension & Adjustability Not Published Suspension seat, fully adjustable (standard) Front Axle Type 4WD Four-wheel drive (standard) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.8 in 148.8 in Overall Width Not Published 77.2 in Wheelbase Not Published 82.7 in Ground Clearance 16.5 in 12.3 in Min. Turn Radius without Brakes Not Published 147.0 in Height to Top of ROPS 106.3 in 102.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103.5 in Not Published ▶ WeightTractor Weight (Base) Not Published 5440 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (standard): 11.2-20 front, 14.9-30 rear Industrial (standard), Agricultural, Multi-Use R1 Agricultural - Front 11.2-20 9.5-24 R1 Agricultural - Rear 14.9-30 16.9-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 18.4-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Bob-Tach Loader Model KL601; KL701 FL10 Loader Lift Height KL601: 114.2 in; KL701: 133.9 in 129.3 in Loader Lift Capacity (Full Height) KL601: 2,864 lb; KL701: 3,384 lb 2641 lb Loader Breakout Force KL601: 4,577 lb; KL701: 5,359 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published 24 months or 1,500 hours (whichever occurs first); powertrain 36 months or 2,000 hours
