Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaB2301HSD

—

KiotiCX2510

Comparison loaded for 2 tractors.

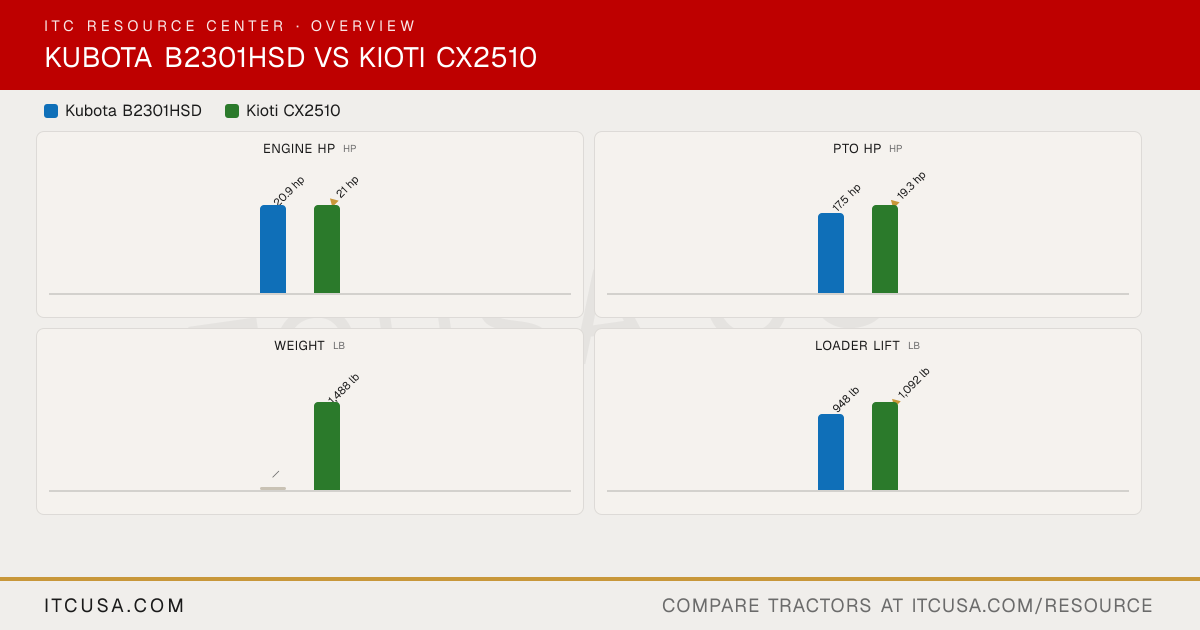

The headline numbers at a glance.

Kubota B2301HSDKioti CX2510

Engine HPhp

20.9 hp

▲21 hp

PTO HPhp

17.5 hp

▲19.3 hp

Weightlb

—

1,488 lb

Loader Liftlb

948 lb

▲1,092 lb

3-Pt Lift (24 in)lb

▲1,411 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaB2301HSD	KiotiCX2510


PTO Power	17.5 hp	19.3 hp
Alternator	Not Published	—
Air Cleaner	Dual paper element	—
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	S204.2 gal-F
Fuel System	Not Published	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)
Displacement	61.1 in³	69 in³
No. of Cylinders	3	3
Rated Engine Speed	2800 rpm	3000 rpm
Cooling System Type	Pressurized radiator	Liquid cooled
Engine Manufacturer	Kubota	Daedong Industrial Co., LTD
Engine Power (Gross)	20.9 hp	21 hp
Engine Emissions Constraints	Not Published	—

Weight with ROPS and Loader	Not Published	2,308 lb
Weight with Cab and Loader	Not Applicable	2,804 lb
Tractor Weight (Base)	—	1,488 lbs with ROPS

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6 year powertrain warranty

Pump Type	Dual pump	Variable displacement pump
Steering Flow	Not Published	4.4 qts 1.1 gal
Implement Flow	Not Published	6.86 gpm
Total Hydraulic Flow	8.3 gpm	11.3 gpm
Hydraulic System Type	Open center	open center
Rear Remote Hydraulic Flow	Not Published	NOT FOUND
Overall Hydraulic Pump Flow	8.3 gpm	11.3 gpm
No. of Optional Remote Valves	Not Published	1
No. of Standard Remote Valves	Not Published	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)
System Operating Pressure	—	Not specified in document

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Transmission (CX2510); Live (CX2510 HST/CAB)
Lift Control Type	Position control valve	Position
Hitch Lift Capacity	1808 lb	1,203 lb.
Mid-PTO Availability	2500 rpm	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	1411 lb	700 lbs

R3 Turf - Rear	Not Published	33×12.5-16.5
R3 Turf - Front	Not Published	23×8.5-12
Tire Size & Options	R1 Agricultural	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)
R4 Industrial - Rear	Not Published	12-16.5
R4 Industrial - Front	Not Published	23×8.5-12
R1 Agricultural - Rear	9.5-16	11.2-16
R1 Agricultural - Front	8.0-12	7.0-12

Coolant Capacity	4.0 qt	1.0 U.S. gal
Crankcase Capacity	3.3 qt	0.8 U.S. gal
Fuel Tank Capacity	6.1 gal	6.60 gal
Front Axle Fluid Capacity	Not Published	—
Transmission / Hydraulic System Capacity	4.0 gal	3.4 U.S. gal

Loader Lift Height	78.5 in	87.8 in.
Loader Breakout Force	2146 lb	1,843 lbs.
Quick Attach Loader System	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))	Quick attach bucket, 50 in.
Loader Lift Capacity (Full Height)	948 lb	1,092 lbs.

Clutch	N/A	Dry single
No. of Speeds	3 ranges	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]
Transmission Type	Hydrostatic transmission	Manual [CX2510] / Hydrostatic [CX2510 HST]
Max Travel Speed (Forward)	11.9 mph	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]
Max Travel Speed (Reverse)	8.9 mph	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]
Differential Lock & Limited Slip Options	Differential lock standard	Rear Standard

Brakes	Multi-plate wet disc	Wet Disc Type
Steering	Hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	—
Front Axle Type	Not Published	Four-wheel drive
Drawbar Capacity	Not Published	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	High-back seat designed to absorb shock; armrests standard (HST models)	Adjustable suspension seat with dual armrests and seat belt

Wheelbase	61.4 in	59.8 in.
Overall Width	45.3 in	49.4 in.
Ground Clearance	12.0 in	13.4 in.
Height to Top of ROPS	83.9 in	82.8 in.
Height to Top of Cab Model	Not Applicable	86.6 in.
Height to Top of ROPS (folded)	Not Published	82.8 in.
Min. Turn Radius without Brakes	Not Published	9 ft (2.75 m)
Overall Length with 3-Point Hitch	Not Published	109.1 in. [CX2510/HST]; 111 in. [CAB]
Overall Length	—	110.25 in with weights; 99.33 in without weights
