Which has more horsepower, the Kioti CX2510 or the Kubota B2301HSD?

The Kioti CX2510 leads on engine hp at 21 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.

Which has more PTO horsepower, the Kioti CX2510 or the Kubota B2301HSD?

The Kioti CX2510 leads on pto hp at 19.3 hp hp, compared to 17.5 hp hp for the Kubota B2301HSD.

Which has more loader lift capacity, the Kioti CX2510 or the Kubota B2301HSD?

The Kioti CX2510 leads on loader lift at 1,092 lb lb, compared to 948 lb lb for the Kubota B2301HSD.

Which has more three-point hitch lift capacity, the Kioti CX2510 or the Kubota B2301HSD?

The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 700 lb lb for the Kioti CX2510.

Kioti CX2510 vs Kubota B2301HSD

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Kioti CX2510 leads 5 categories to 3. Machine pages: Kioti CX2510 and Kubota B2301HSD.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kioti CX2510	Kubota B2301HSD
Engine HP (hp)	▲ 21 hp	20.9 hp
PTO HP (hp)	▲ 19.3 hp	17.5 hp
Weight (lb)	1,488 lb	—
Loader Lift (lb)	▲ 1,092 lb	948 lb
3-Pt Lift (24 in) (lb)	700 lb	▲ 1,411 lb
Lift Height (in)	▲ 87.8 in	78.5 in
Breakout Force (lbf)	1,843 lbf	▲ 2,146 lbf
Hydraulic Flow (gpm)	▲ 11.3 gpm	8.3 gpm
Travel Speed (mph)	0.8 mph	▲ 11.9 mph

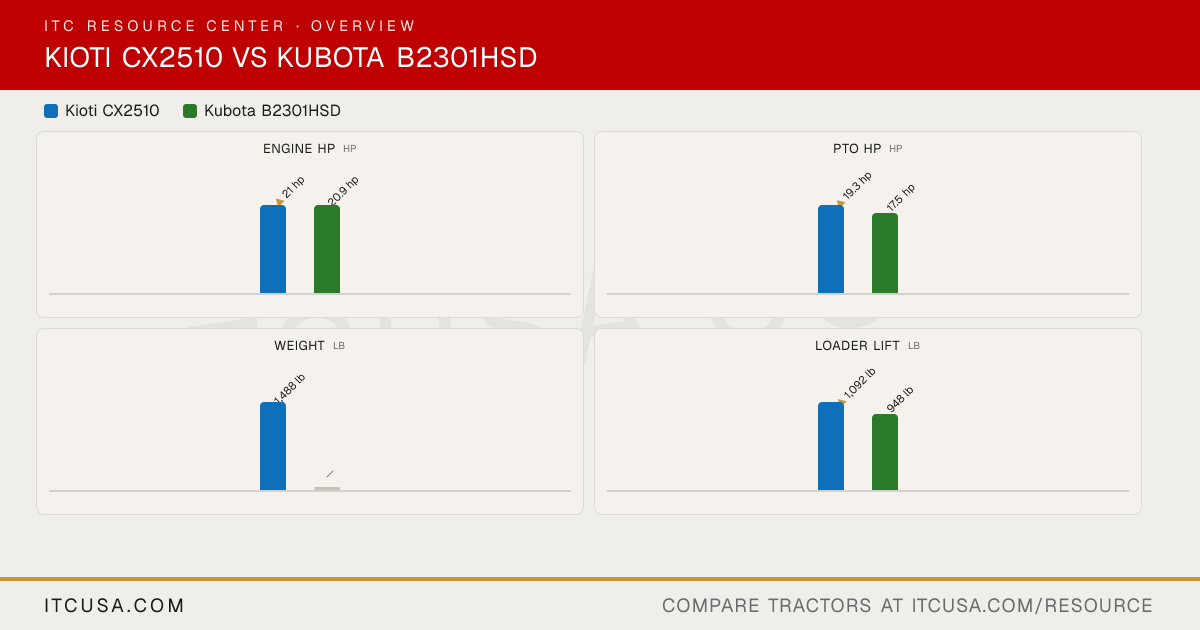

The headline numbers at a glance.

Kioti CX2510Kubota B2301HSD

Engine HPhp

▲21 hp

20.9 hp

PTO HPhp

▲19.3 hp

17.5 hp

Weightlb

1,488 lb

—

Loader Liftlb

▲1,092 lb

948 lb

3-Pt Lift (24 in)lb

700 lb

▲1,411 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KiotiCX2510	KubotaB2301HSD


PTO Power	19.3 hp	17.5 hp
Engine Type	S204.2 gal-F	E-TVCS, liquid cooled, 3-cylinder, diesel
Fuel System	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)	Not Published
Displacement	69 in³	61.1 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2800 rpm
Cooling System Type	Liquid cooled	Pressurized radiator
Engine Manufacturer	Daedong Industrial Co., LTD	Kubota
Engine Power (Gross)	21 hp	20.9 hp
Alternator	—	Not Published
Air Cleaner	—	Dual paper element
Engine Emissions Constraints	—	Not Published

Tractor Weight (Base)	1,488 lbs with ROPS	—
Weight with Cab and Loader	2,804 lb	Not Applicable
Weight with ROPS and Loader	2,308 lb	Not Published

Warranty Length & Coverage	6 year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Variable displacement pump	Dual pump
Steering Flow	4.4 qts 1.1 gal	Not Published
Implement Flow	6.86 gpm	Not Published
Total Hydraulic Flow	11.3 gpm	8.3 gpm
Hydraulic System Type	open center	Open center
System Operating Pressure	Not specified in document	—
Rear Remote Hydraulic Flow	NOT FOUND	Not Published
Overall Hydraulic Pump Flow	11.3 gpm	8.3 gpm
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Transmission (CX2510); Live (CX2510 HST/CAB)	Independent
Lift Control Type	Position	Position control valve
Hitch Lift Capacity	1,203 lb.	1808 lb
Mid-PTO Availability	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)	2500 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity (at 24”)	700 lbs	1411 lb

R3 Turf - Rear	33×12.5-16.5	Not Published
R3 Turf - Front	23×8.5-12	Not Published
Tire Size & Options	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)	R1 Agricultural
R4 Industrial - Rear	12-16.5	Not Published
R4 Industrial - Front	23×8.5-12	Not Published
R1 Agricultural - Rear	11.2-16	9.5-16
R1 Agricultural - Front	7.0-12	8.0-12

Coolant Capacity	1.0 U.S. gal	4.0 qt
Crankcase Capacity	0.8 U.S. gal	3.3 qt
Fuel Tank Capacity	6.60 gal	6.1 gal
Transmission / Hydraulic System Capacity	3.4 U.S. gal	4.0 gal
Front Axle Fluid Capacity	—	Not Published

Loader Lift Height	87.8 in.	78.5 in
Loader Breakout Force	1,843 lbs.	2146 lb
Quick Attach Loader System	Quick attach bucket, 50 in.	Swift-Tach Loader (LA435 - 2-Lever Quick Coupler (Optional))
Loader Lift Capacity (Full Height)	1,092 lbs.	948 lb

Clutch	Dry single	N/A
No. of Speeds	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]	3 ranges
Transmission Type	Manual [CX2510] / Hydrostatic [CX2510 HST]	Hydrostatic transmission
Max Travel Speed (Forward)	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]	11.9 mph
Max Travel Speed (Reverse)	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]	8.9 mph
Differential Lock & Limited Slip Options	Rear Standard	Differential lock standard

Brakes	Wet Disc Type	Multi-plate wet disc
Steering	Hydrostatic Power Steering	Hydraulic power steering
Front Axle Type	Four-wheel drive	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat with dual armrests and seat belt	High-back seat designed to absorb shock; armrests standard (HST models)
Frame Type	—	Not Published
Drawbar Capacity	—	Not Published
Front Axle Rating	—	Not Published

Wheelbase	59.8 in.	61.4 in
Overall Width	49.4 in.	45.3 in
Overall Length	110.25 in with weights; 99.33 in without weights	—
Ground Clearance	13.4 in.	12.0 in
Height to Top of ROPS	82.8 in.	83.9 in
Height to Top of Cab Model	86.6 in.	Not Applicable
Height to Top of ROPS (folded)	82.8 in.	Not Published
Min. Turn Radius without Brakes	9 ft (2.75 m)	Not Published
Overall Length with 3-Point Hitch	109.1 in. [CX2510/HST]; 111 in. [CAB]	Not Published

Kioti CX2510 vs Kubota B2301HSD: Quick Answers

Which has more horsepower, the Kioti CX2510 or the Kubota B2301HSD?: The Kioti CX2510 leads on engine hp at 21 hp hp, compared to 20.9 hp hp for the Kubota B2301HSD.
Which has more PTO horsepower, the Kioti CX2510 or the Kubota B2301HSD?: The Kioti CX2510 leads on pto hp at 19.3 hp hp, compared to 17.5 hp hp for the Kubota B2301HSD.
Which has more loader lift capacity, the Kioti CX2510 or the Kubota B2301HSD?: The Kioti CX2510 leads on loader lift at 1,092 lb lb, compared to 948 lb lb for the Kubota B2301HSD.
Which has more three-point hitch lift capacity, the Kioti CX2510 or the Kubota B2301HSD?: The Kubota B2301HSD leads on 3-pt lift (24 in) at 1,411 lb lb, compared to 700 lb lb for the Kioti CX2510.
