Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CX2510?

The Bad Boy Tractors 4035 Cab leads on engine hp at 24.5 hp hp, compared to 21 hp hp for the Kioti CX2510.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Kioti CX2510?

The Bad Boy Tractors 4035 Cab leads on pto hp at 39.6 hp hp, compared to 19.3 hp hp for the Kioti CX2510.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Kioti CX2510?

The Bad Boy Tractors 4035 Cab leads on weight at 3,496.5 lb lb, compared to 1,488 lb lb for the Kioti CX2510.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CX2510?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 1,092 lb lb for the Kioti CX2510.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Kioti CX2510?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 700 lb lb for the Kioti CX2510.

Bad Boy Tractors 4035 Cab vs Kioti CX2510

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 9 categories to 0. Machine pages: Bad Boy Tractors 4035 Cab and Kioti CX2510.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 4035 Cab	Kioti CX2510
Engine HP (hp)	▲ 24.5 hp	21 hp
PTO HP (hp)	▲ 39.6 hp	19.3 hp
Weight (lb)	▲ 3,496.5 lb	1,488 lb
Loader Lift (lb)	▲ 2,200 lb	1,092 lb
3-Pt Lift (24 in) (lb)	▲ 2,425 lb	700 lb
Lift Height (in)	▲ 104 in	87.8 in
Breakout Force (lbf)	▲ 3,660 lbf	1,843 lbf
Hydraulic Flow (gpm)	▲ 12.6 gpm	11.3 gpm
Travel Speed (mph)	▲ 18.2 mph	0.8 mph

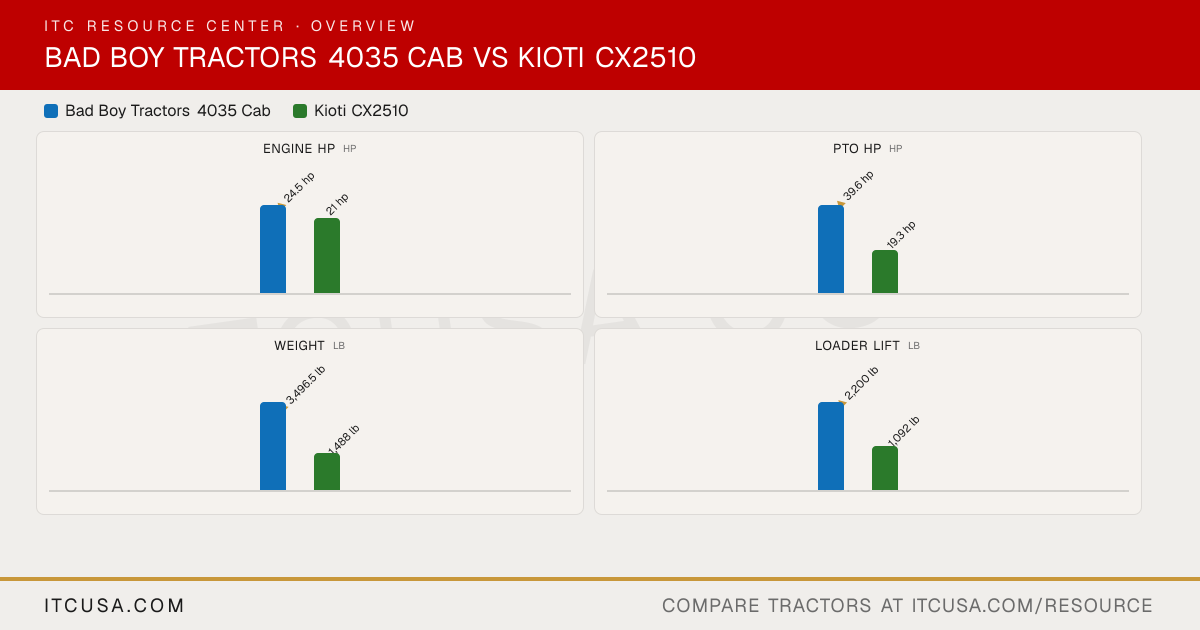

The headline numbers at a glance.

Bad Boy Tractors 4035 CabKioti CX2510

Engine HPhp

▲24.5 hp

21 hp

PTO HPhp

▲39.6 hp

19.3 hp

Weightlb

▲3,496.5 lb

1,488 lb

Loader Liftlb

▲2,200 lb

1,092 lb

3-Pt Lift (24 in)lb

▲2,425 lb

700 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	KiotiCX2510


PTO Power	39.6 hp	19.3 hp
Alternator	50 A, 12 V	—
Air Cleaner	Not Published	—
Engine Type	Vertical, water cooled 4-cycle, diesel engine	S204.2 gal-F
Fuel System	Diesel fuel	Diesel fuel (ultra-low sulfur diesel, sulfur content: 15 ppm or less)
Displacement	104.6 in³	69 in³
No. of Cylinders	3	3
Rated Engine Speed	2100 rpm	3000 rpm
Cooling System Type	Pressurized Radiator	Liquid cooled
Engine Manufacturer	Not specified in source	Daedong Industrial Co., LTD
Engine Power (Gross)	24.5 hp	21 hp
Engine Emissions Constraints	Not Published	—

Tractor Weight (Base)	4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs)	1,488 lbs with ROPS
Weight with ROPS and Loader	Not Applicable	2,308 lb
Weight with Cab and Loader	3,551 lb (tractor only)	2,804 lb

Warranty Length & Coverage	6-year powertrain warranty	6 year powertrain warranty

Pump Type	Not Published	Variable displacement pump
Steering Flow	4.4 gpm	4.4 qts 1.1 gal
Implement Flow	8.2 gpm	6.86 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	11.3 gpm
Hydraulic System Type	Not Published	open center
System Operating Pressure	396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief)	Not specified in document
Rear Remote Hydraulic Flow	Not Published	NOT FOUND
Overall Hydraulic Pump Flow	12.6 gpm	11.3 gpm
No. of Optional Remote Valves	Optional (Up to 2)	1
No. of Standard Remote Valves	Not Published	1 Optional (CX2510/CX2510 HST); 1 Standard (CX2510 HST CAB)

PTO Rear	540 rpm	540 rpm
PTO Type	Independent	Transmission (CX2510); Live (CX2510 HST/CAB)
Lift Control Type	Position control	Position
Hitch Lift Capacity	3,306.9 lb	1,203 lb.
Mid-PTO Availability	Not Published	2,000 rpm (Option on CX2510/CX2510H); 2,000 rpm (Standard on CX2510 HST CAB)
Category, 3-Point Hitch	Cat 1	Category I
Hitch Lift Capacity (at 24”)	2,425 lb	700 lbs

R3 Turf - Rear	Not Published	33×12.5-16.5
R3 Turf - Front	Not Published	23×8.5-12
Tire Size & Options	R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20	Front: 7.0-12 (AG), 23×8.5-12 (Turf/Industrial); Rear: 11.2-16 (AG), 33×12.5-16.5 (Turf), 12-16.5 (Industrial)
R4 Industrial - Rear	43X16.00-20	12-16.5
R4 Industrial - Front	28X8.50-15	23×8.5-12
R1 Agricultural - Rear	11.2-24 8PR	11.2-16
R1 Agricultural - Front	7-16 6PR	7.0-12

Coolant Capacity	5.0 ℓ (1.32 u.s. gal)	1.0 U.S. gal
Crankcase Capacity	4.3 ℓ (1.14 u.s. gal)	0.8 U.S. gal
Fuel Tank Capacity	27 ℓ (7.13 u.s. gal)	6.60 gal
Front Axle Fluid Capacity	Not Published	—
Transmission / Hydraulic System Capacity	HST: 9.77 gal	3.4 U.S. gal

Loader Lift Height	104 in	87.8 in.
Loader Breakout Force	3,660 lb	1,843 lbs.
Quick Attach Loader System	SSQA	Quick attach bucket, 50 in.
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1,092 lbs.

Clutch	None (HST)	Dry single
No. of Speeds	3 Range	6F/2R [CX2510] / Infinite, 2 range [CX2510 HST]
Transmission Type	HST (Hydrostatic Transmission) with range shift	Manual [CX2510] / Hydrostatic [CX2510 HST]
Max Travel Speed (Forward)	18.21 mph (range C)	0.75-10.8 mph (1.22-11.8 mph) [Manual]; 0-10.7 mph (0-13.5 mph) [HST]
Max Travel Speed (Reverse)	18.21 mph	0.92-4.2 mph (1.51-4.6 mph) [Manual]; 0-7.46 mph (0-9.5 mph) [HST]
Differential Lock & Limited Slip Options	Differential lock	Rear Standard

Brakes	Wet multi-disc	Wet Disc Type
Steering	Fully hydraulic power steering	Hydrostatic Power Steering
Frame Type	Not Published	—
Front Axle Type	Not Published	Four-wheel drive
Drawbar Capacity	Not Published	—
Front Axle Rating	Not Published	—
Seat Suspension & Adjustability	Not Published	Adjustable suspension seat with dual armrests and seat belt

Wheelbase	65.79 in	59.8 in.
Overall Width	ROPS: 57.13 in, Cabin: 55.63 in	49.4 in.
Overall Length	134.88 in	110.25 in with weights; 99.33 in without weights
Ground Clearance	ROPS: 13.19 in, Cabin: 13.50 in	13.4 in.
Height to Top of ROPS	ROPS: 104.06 in, Cabin: 88.9 in	82.8 in.
Height to Top of Cab Model	86 in	86.6 in.
Height to Top of ROPS (folded)	Not Applicable	82.8 in.
Min. Turn Radius without Brakes	Not Published	9 ft (2.75 m)
Overall Length with 3-Point Hitch	134.88 in	109.1 in. [CX2510/HST]; 111 in. [CAB]
