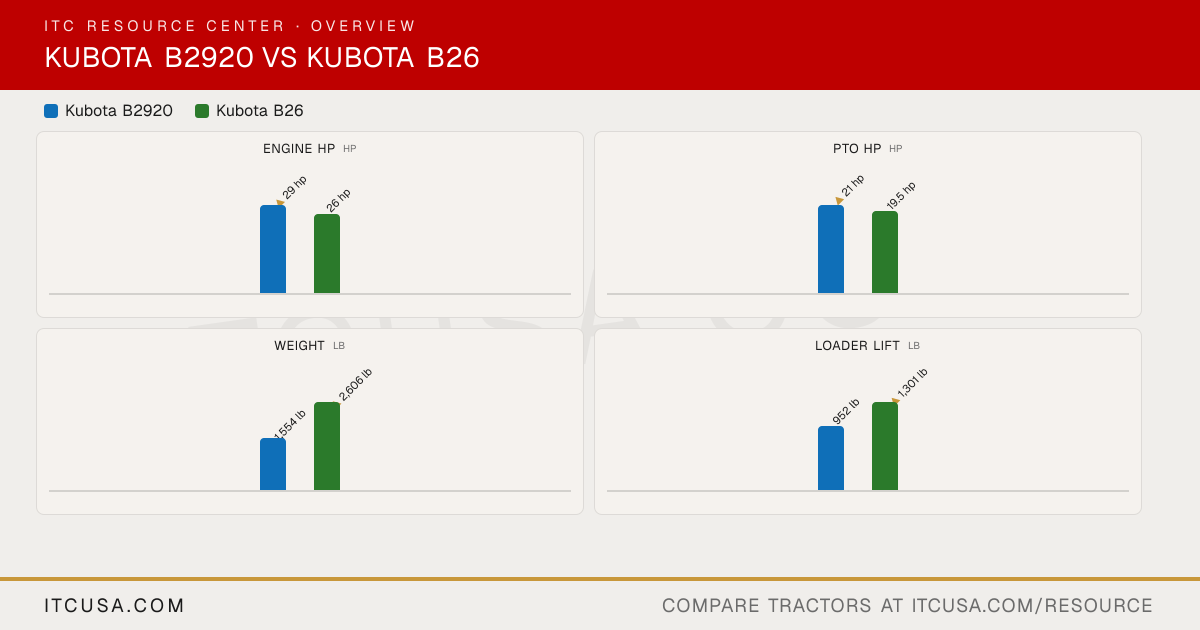

▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1305-E3-D22 D1105-E4-TLB-1 Engine Type E-TVCS, liquid-cooled, 3-cylinder diesel E-TVCS, 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 77.0 in³ 68.5 in³ Rated Engine Speed 2800 rpm 2800 rpm Engine Power (Gross) 29 hp 26 hp PTO Power 21 hp 19.5 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled, pressurized radiator Liquid-cooled Air Cleaner Not Published Single element Fuel System Indirect injection (E-TVCS) Indirect injection (E-TVCS) Alternator 14.5 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Dual pump (3-point + power steering) Not Published Implement Flow 4.7 gpm 7.0 gpm Steering Flow 3.6 gpm 4.2 gpm Total Hydraulic Flow 8.3 gpm (4.7 + 3.6, computed) 11.1 gpm Overall Hydraulic Pump Flow Not Published 11.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 or 2 Not Published No. of Optional Remote Valves Not Published Up to 3 ▶ Fluid CapacityFuel Tank Capacity 6.9 gal (6.9 U.S. gal, all models) 8.1 gal Coolant Capacity 4.1 qt 4.7 qt Crankcase Capacity 3.7 qt 3.2 qt Transmission / Hydraulic System Capacity 4.0 gal 6.9 gal Front Axle Fluid Capacity Not Published 4.7 qt ▶ PTO & HitchPTO Type Live Independent PTO Rear 540/960 rpm 540 rpm Mid-PTO Availability Optional mid-PTO, 2500 rpm (USA No. 5, Kubota 10-tooth) Not Published Category, 3-Point Hitch Category I Category I (optional) Hitch Lift Capacity 1356 lb 2139 lb Hitch Lift Capacity (at 24”) 1058 lb 1676 lb Lift Control Type Position control valve, quarter inching valve Position control ▶ Transmission & DrivetrainTransmission Type Main-hydrostatic transmission, 3-range HST Plus hydrostatic transmission, 3-range No. of Speeds 3-range (3 forward, 3 reverse) 3-range (infinite) Max Travel Speed (Forward) 12.6 mph 11.1 mph Max Travel Speed (Reverse) 10.0 mph 9.8 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Rear differential lock standard Rear axle differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (sunshade optional) Four-post ROPS/FOPS standard Steering Integral type power steering Hydrostatic power steering Brakes Wet disk type Wet disc Seat Suspension & Adjustability Not Published Reversible seat; tilt steering standard Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 95.1 in (w/o 3P) (without 3-point hitch) 100.7 in (w/o 3P) (without 3-point hitch) Overall Width 49.0 in 53.7 in Wheelbase 61.5 in 62.2 in Ground Clearance 12.8 in 13.8 in Min. Turn Radius without Brakes 6.9 ft (w/brake) (with brake applied) 8.2 ft Height to Top of ROPS 85.0 in 89.5 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1554 lb 2606 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard farm 7-12 front, 11.2-16 rear Industrial (R4): 23x8.5-14 R4 front, 12.4-16 R4 rear; turf 24x8.50-14 front, 13.6-16 rear R1 Agricultural - Front 7-12 Not Published R1 Agricultural - Rear 11.2-16 Not Published R3 Turf - Front Not Published 24x8.50-14 R3 Turf - Rear Not Published 13.6-16 R4 Industrial - Front 23x8.50-12 23x8.50-14 R4 R4 Industrial - Rear 12-16.5 12.4-16 R4 ▶ Loader & AttachmentsQuick Attach Loader System Not Published TL500: 2-lever quick coupler standard Loader Model LA364 TL500 Loader Lift Height LA364: 78.6 in TL500: 94.5 in Loader Lift Capacity (Full Height) LA364: 952 lb TL500: 1301 lb Loader Breakout Force LA364: 2144 lbf TL500: 2343 lbf ▶ WarrantyWarranty Length & Coverage Not Published Not Published
