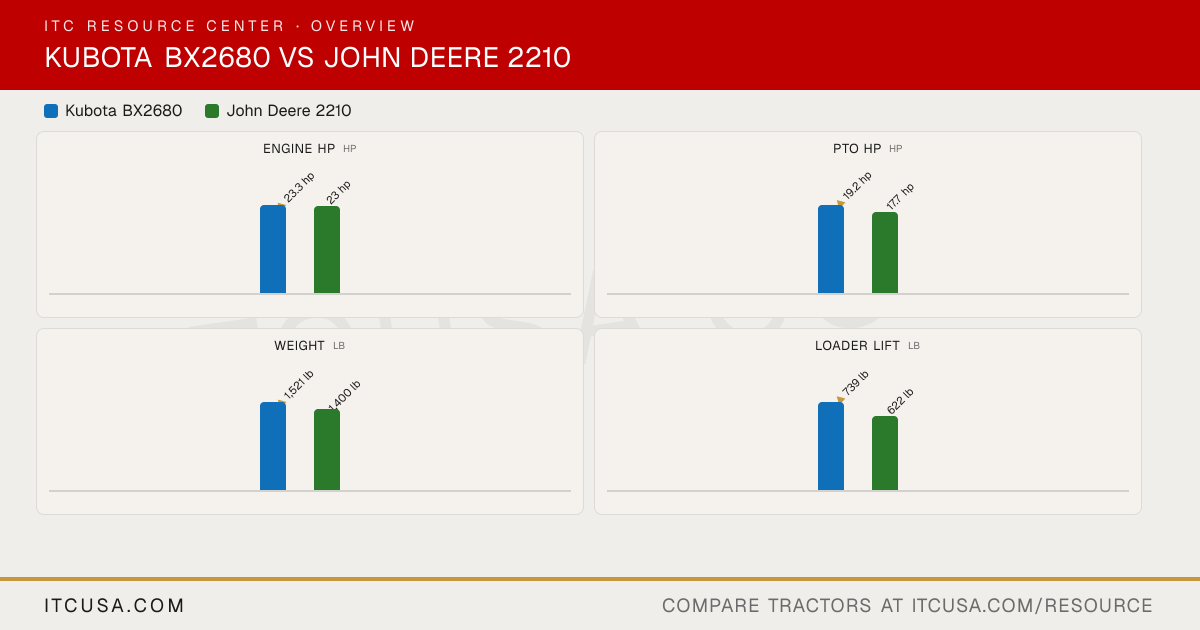

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1005 3TNE74 Engine Type Liquid-cooled, 4-cycle diesel 3-cylinder liquid-cooled diesel, indirect injection No. of Cylinders 3 3 Displacement 61.1 in³ 61.4 in³ Rated Engine Speed 3200 rpm 3000 rpm Engine Power (Gross) 23.3 hp 23 hp PTO Power 19.2 hp 17.7 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water with pressurized radiator, reverse air-flow design Liquid-cooled Air Cleaner Dry element Dry type with safety element Fuel System Direct injection Indirect injection, in-line fuel pump with solenoid shutoff Alternator 40 A, 12 V 20 A ▶ HydraulicsPump Type Open center tandem pump gear type Not Published Implement Flow 5.2 gpm 3 gpm Steering Flow 1.0 gpm 2.5 gpm Total Hydraulic Flow 6.2 gpm 5.5 gpm Overall Hydraulic Pump Flow 6.2 gpm 5.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None (2-valve rear remote coupler optional) Not Published No. of Optional Remote Valves 2 (optional; ISO 7241-1 series A or B) Not Published ▶ Fluid CapacityFuel Tank Capacity 6.6 gal 5.0 gal Coolant Capacity 3.5 qt 3.2 qt Crankcase Capacity 4.2 qt 2.2 qt Transmission / Hydraulic System Capacity 3.0 gal 3.4 gal Front Axle Fluid Capacity 3.8 qt 2.6 qt ▶ PTO & HitchPTO Type Live independent PTO (with hydraulic clutch) Independent, wet disk clutch PTO Rear STD (540 rpm) 540 rpm Mid-PTO Availability STD (2500 rpm) Standard, 2100 rpm Category, 3-Point Hitch SAE Category I Category 1 Hitch Lift Capacity 1,213 lb Not Published Hitch Lift Capacity (at 24”) 680 lb 701 lb Lift Control Type Quarter-inching valve Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission 2-range hydrostatic No. of Speeds 2 Range (Low-High) Infinite forward and reverse, 2 ranges Max Travel Speed (Forward) 8.4 mph 8.4 mph Max Travel Speed (Reverse) 6.5 mph 6.3 mph Clutch None (HST) Not Published Differential Lock & Limited Slip Options Rear differential lock standard Not Published ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS Two-post fixed ROPS; four-wheel drive Steering Hydrostatic type power steering Power steering Brakes Mechanical, wet disc type Wet disk Seat Suspension & Adjustability High-back seat with armrests; fore/aft slide and backrest-tilt adjustment Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing MFWD, standard, all ranges, on-the-go engagement Front Axle Rating Not Published 3,120 lb Drawbar Capacity Max. drawbar load @ hitch: 550 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 45.1 in 47.2 in Wheelbase 55.1 in 57.1 in Ground Clearance 6.5 in 7.7 in (front axle) Min. Turn Radius without Brakes 7.5 ft 88.6 in (MFWD off) Height to Top of ROPS 83.1 in 77.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 95.5 in (with 3-point hitch) 104.3 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,521 lb (with ROPS) 1,400 lb (with all fluids) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial 18x8.5-10 front and 26x12.00-12 rear; R1 standard, R3 optional R1 Agricultural - Front 18X8.5-10 18x8.5-10 R1 Agricultural - Rear 26X12-12 26x12.00-12 R3 Turf - Front 18X8.5-10 18x8.5-10 R3 Turf - Rear 26X12-12 26x12.00-12 R4 Industrial - Front 18X8.5-10 18x8.50-10 R4 Industrial - Rear 26X12-12 26x12.00-12 ▶ Loader & AttachmentsQuick Attach Loader System Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket) Not Published Loader Model LA344S (standard, quick attach); LA344 (pin-on option) 210 Loader Lift Height 71.0 in (at pivot pin) 210: 68.5 in (at pivot pin) Loader Lift Capacity (Full Height) 739 lb (LA344 pin-on); 613 lb (LA344S quick attach) 210: 622 lb (to max height at pivot point) Loader Breakout Force 1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach) 210: 1,577 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
