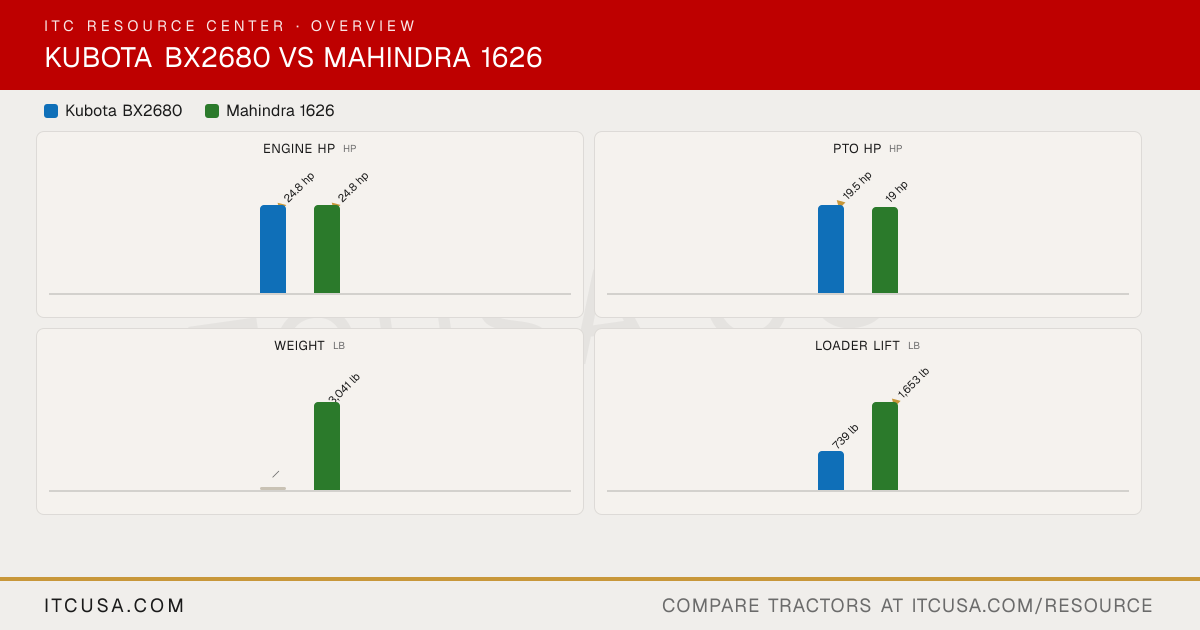

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Water with pressurized radiator, reverse air-flow design
Water-cooled
Engine Manufacturer
Kubota
Mitsubishi
Engine Power (Gross)
24.8 hp
24.8 hp @ 500 rpm
Engine Emissions Constraints
Not Published
DOC / No DPF
Weight with ROPS and Loader
Not Published
3041 lb
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
7-Year Limited Powertrain Warranty
Pump Type
Open center tandem pump gear type
Not Published
Steering Flow
1.0 gpm
3.3 gpm
Implement Flow
5.2 gpm
7.5 gpm
Total Hydraulic Flow
6.2 gpm
10.8 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
6.2 gpm
10.8 gpm
No. of Optional Remote Valves
2 (optional; ISO 7241-1 series A or B)
1
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
STD (540 rpm)
540 rpm @ 2376 rpm
PTO Type
Live independent PTO (with hydraulic clutch)
Live
Lift Control Type
Not Published
Position Control
Hitch Lift Capacity
Not Published
2646 lb
Mid-PTO Availability
STD (2500 rpm)
Optional; 2000 @ 2526 rpm
Category, 3-Point Hitch
SAE Category I Optional
CAT I with Telescoping Stabilizers
Hitch Lift Capacity (at 24”)
680 lb
1720 lb
R3 Turf - Rear
26X12-12
13.6X16
R3 Turf - Front
18X8.5-10
25X8.5-14
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agriculture, R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
15X19.5
R4 Industrial - Front
18X8.5-10
27X8.5-15
R1 Agricultural - Rear
26X12-12
11.2X24
R1 Agricultural - Front
18X8.5-10
7X16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
6.6 gal
7.1 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
71.0 in
84 in
Loader Breakout Force
1,286 lbf (bucket pivot pin)
2557 lb
Quick Attach Loader System
Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket)
429.5 gal: Front loader with skid-steer couplers for superfast hookups.
Loader Lift Capacity (Full Height)
739 lb
1653 lb
Clutch
Dry type single plate - Main clutch 9.45 in.
Dry-Single
No. of Speeds
2 Range (Low-High)
Infinite / 3 Ranges
Transmission Type
Hydrostatic transmission
HST
Max Travel Speed (Forward)
8.1 mph
13.3 mph
Max Travel Speed (Reverse)
6.2 mph
Not Published
Differential Lock & Limited Slip Options
Rear differential lock standard
Not Published
Brakes
Mechanical, wet disc type
Wet Disc
Steering
Integral power steering
Hydrostatic Power Steering
Frame Type
Not Published
Not Published
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
