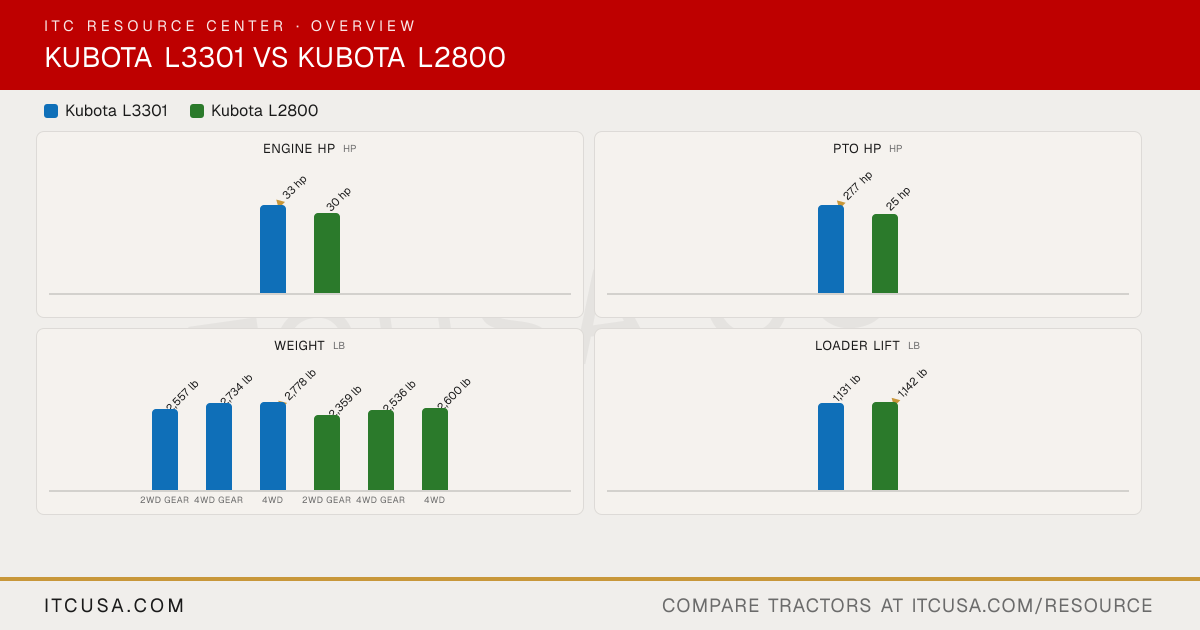

▶ EngineEngine Manufacturer Kubota Kubota Engine Model F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2 Not Published Engine Type 3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel Not Published No. of Cylinders 3 3 Displacement 111.4 in³ 91.5 in³ Rated Engine Speed 2700 rpm 2800 rpm Engine Power (Gross) 33 hp 30 hp PTO Power F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled, water with pressurized radiator Liquid-cooled Air Cleaner Dry paper single element Not Published Fuel System Common-rail, direct injection, electronic control Indirect injection Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Open center tandem pump, gear type Not Published Implement Flow 6.3 gpm 6.5 gpm Steering Flow 3.8 gpm 4.0 gpm Total Hydraulic Flow 10.1 gpm 10.5 gpm (6.5 + 4.0, computed) Overall Hydraulic Pump Flow 10.1 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3: self-canceling detent valve or float detent valve Up to 3 ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 9.0 gal Coolant Capacity 6.3 qt Not Published Crankcase Capacity 7.1 qt Not Published Transmission / Hydraulic System Capacity F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity 4.8 qt 4.8 qt ▶ PTO & HitchPTO Type F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running F (2WD gear), DT (4WD gear): transmission-driven with overrunning clutch; HST (4WD): live-continuous with overrunning clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability No mid-PTO offered Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,874 lb (at lift points) 1,998 lb Hitch Lift Capacity (at 24”) 1,433 lb 1,435 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission Not Published No. of Speeds F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range Max Travel Speed (Forward) F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph Max Travel Speed (Reverse) F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph Clutch Dry type single stage F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage Differential Lock & Limited Slip Options Rear differential lock standard Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (factory certified) with retractable seat belt Foldable ROPS (standard on all models) Steering Integral power steering Integral type power steering Brakes Mechanical wet disc type, pedals can be locked together Wet disc type Seat Suspension & Adjustability Not Published Not Published Front Axle Type F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing Not Published Front Axle Rating 2,865 lb (at 41.3 in tread, 2WD and 4WD models) Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 51.4 in Wheelbase 63.3 in 63.3 in Ground Clearance F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in Min. Turn Radius without Brakes F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied) Height to Top of ROPS 97.1 in 85.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch) F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch) ▶ WeightTractor Weight (Base) F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb F (2WD gear): 2,359 lb; DT (4WD gear): 2,536 lb; HST (4WD): 2,600 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear R1 Agricultural - Front F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 2WD: 23x8.50-12; 4WD: 25x8.50-14 R3 Turf - Rear 13.6-16 13.6-16 R4 Industrial - Front 27x8.5-15 (4WD) 27x8.50-15 (4WD) R4 Industrial - Rear 15-19.5 (4WD) 15-19.5 R4 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LA525: 2-lever quick coupler, tool-free attach and detach Not Published Loader Model LA525 LA463 Loader Lift Height LA525: 94.3 in (at pivot pin) LA463: 95.3 in (at pivot pin) Loader Lift Capacity (Full Height) LA525: 1,131 lb (at pivot pin, maximum height) LA463: 1,142 lb (at pivot pin) Loader Breakout Force LA525: 2,462 lbf (at bucket pivot pin) LA463: 1,858 lbf (at 19.7 in) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage 24 months or 1500 hours (general) Not Published
