Kubota L2800 vs Kubota L3301

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kubota L2800 leads 5 categories to 4. Machine pages: Kubota L2800 and Kubota L3301.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L2800	Kubota L3301
Engine HP (hp)	30 hp	▲ 33 hp
PTO HP (hp)	25 hp	▲ 27.7 hp
Weight (lb)	2,600 lb	▲ 2,778 lb
Loader Lift (lb)	▲ 1,142 lb	1,131 lb
3-Pt Lift (24 in) (lb)	▲ 1,435 lb	1,433 lb
Lift Height (in)	▲ 95.3 in	94.3 in
Breakout Force (lbf)	1,858 lbf	▲ 2,462 lbf
Hydraulic Flow (gpm)	▲ 10.5 gpm	10.1 gpm
Travel Speed (mph)	▲ 13.7 mph	13.2 mph

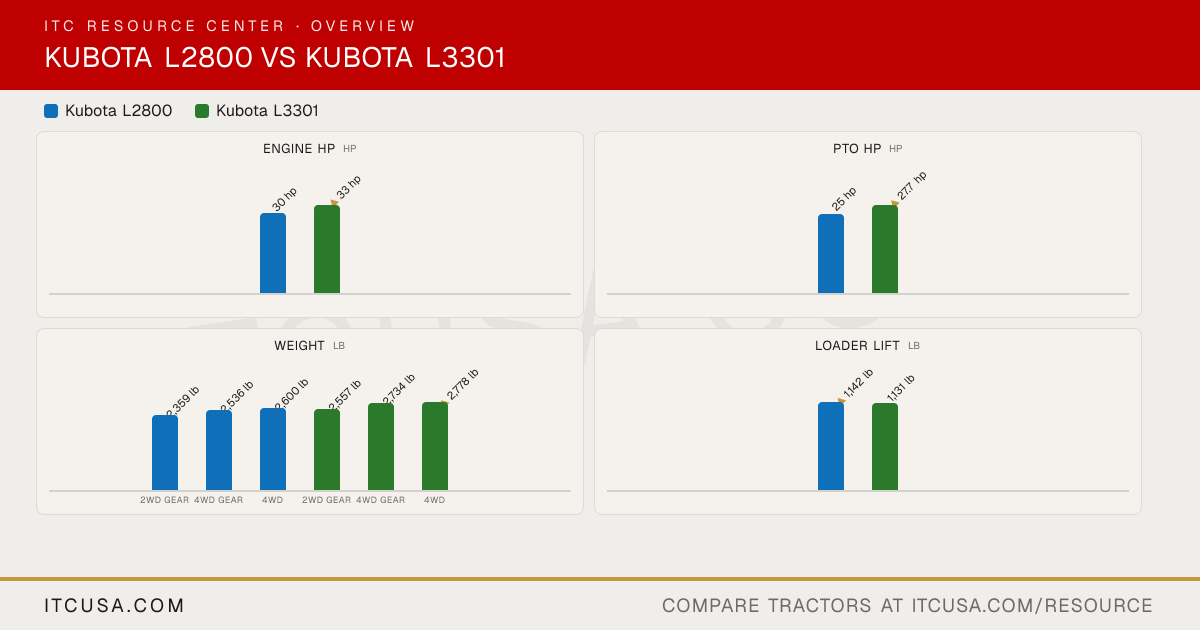

The headline numbers at a glance.

Kubota L2800Kubota L3301

Engine HPhp

30 hp

▲33 hp

PTO HPhp

25 hp

▲27.7 hp

Weightlb

2,359 lb

2,536 lb

2,600 lb

2,557 lb

2,734 lb

▲2,778 lb

2WD gear4WD gear4WD2WD gear4WD gear4WD

Loader Liftlb

▲1,142 lb

1,131 lb

3-Pt Lift (24 in)lb

▲1,435 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL2800	KubotaL3301


Engine Manufacturer	Kubota	Kubota
Engine Model	Not Published	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2
Engine Type	Not Published	3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	91.5 in³	111.4 in³
Rated Engine Speed	2800 rpm	2700 rpm
Engine Power (Gross)	30 hp	33 hp
PTO Power	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp	F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled, water with pressurized radiator
Air Cleaner	Not Published	Dry paper single element
Fuel System	Indirect injection	Common-rail, direct injection, electronic control
Alternator	40 A, 12 V	40 A, 12 V

Pump Type	Not Published	Open center tandem pump, gear type
Implement Flow	6.5 gpm	6.3 gpm
Steering Flow	4.0 gpm	3.8 gpm
Total Hydraulic Flow	10.5 gpm (6.5 + 4.0, computed)	10.1 gpm
Overall Hydraulic Pump Flow	Not Published	10.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3	Up to 3: self-canceling detent valve or float detent valve

Fuel Tank Capacity	9.0 gal	11.1 gal
Coolant Capacity	Not Published	6.3 qt
Crankcase Capacity	Not Published	7.1 qt
Transmission / Hydraulic System Capacity	F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal
Front Axle Fluid Capacity	4.8 qt	4.8 qt

PTO Type	F (2WD gear), DT (4WD gear): transmission-driven with overrunning clutch; HST (4WD): live-continuous with overrunning clutch	F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	No mid-PTO offered
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,998 lb	1,874 lb (at lift points)
Hitch Lift Capacity (at 24”)	1,435 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Not Published	F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph
Clutch	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage	Dry type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard

Frame Type	Foldable ROPS (standard on all models)	Two-post foldable ROPS (factory certified) with retractable seat belt
Steering	Integral type power steering	Integral power steering
Brakes	Wet disc type	Mechanical wet disc type, pedals can be locked together
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Not Published	F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing
Front Axle Rating	Not Published	2,865 lb (at 41.3 in tread, 2WD and 4WD models)
Drawbar Capacity	Not Published	730 lb

Overall Width	51.4 in	55.1 in
Wheelbase	63.3 in	63.3 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in
Min. Turn Radius without Brakes	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied)	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft
Height to Top of ROPS	85.0 in	97.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch)	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch)

Tractor Weight (Base)	F (2WD gear): 2,359 lb; DT (4WD gear): 2,536 lb; HST (4WD): 2,600 lb	F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)
R1 Agricultural - Front	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	2WD: 23x8.50-12; 4WD: 25x8.50-14	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27x8.50-15 (4WD)	27x8.5-15 (4WD)
R4 Industrial - Rear	15-19.5 R4 (4WD)	15-19.5 (4WD)

Quick Attach Loader System	Not Published	LA525: 2-lever quick coupler, tool-free attach and detach
Loader Model	LA463	LA525
Loader Lift Height	LA463: 95.3 in (at pivot pin)	LA525: 94.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	LA463: 1,142 lb (at pivot pin)	LA525: 1,131 lb (at pivot pin, maximum height)
Loader Breakout Force	LA463: 1,858 lbf (at 19.7 in) (19.7 in forward of pivot pin)	LA525: 2,462 lbf (at bucket pivot pin)

Warranty Length & Coverage	Not Published	24 months or 1500 hours (general)

Find a Kubota dealer near you

Kubota L2800 vs Kubota L3301: Quick Answers

Which has more horsepower, the Kubota L2800 or the Kubota L3301?: The Kubota L3301 leads on engine hp at 33 hp hp, compared to 30 hp hp for the Kubota L2800.
Which has more PTO horsepower, the Kubota L2800 or the Kubota L3301?: The Kubota L3301 leads on pto hp at 27.7 hp hp, compared to 25 hp hp for the Kubota L2800.
Which is heavier, the Kubota L2800 or the Kubota L3301?: The Kubota L3301 leads on weight at 2,778 lb lb, compared to 2,600 lb lb for the Kubota L2800.
Which has more loader lift capacity, the Kubota L2800 or the Kubota L3301?: The Kubota L2800 leads on loader lift at 1,142 lb lb, compared to 1,131 lb lb for the Kubota L3301.
Which has more three-point hitch lift capacity, the Kubota L2800 or the Kubota L3301?: The Kubota L2800 leads on 3-pt lift (24 in) at 1,435 lb lb, compared to 1,433 lb lb for the Kubota L3301.
