Bad Boy Tractors 4025 vs Kubota L2800

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 6 categories to 2. Machine pages: Bad Boy Tractors 4025 and Kubota L2800.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

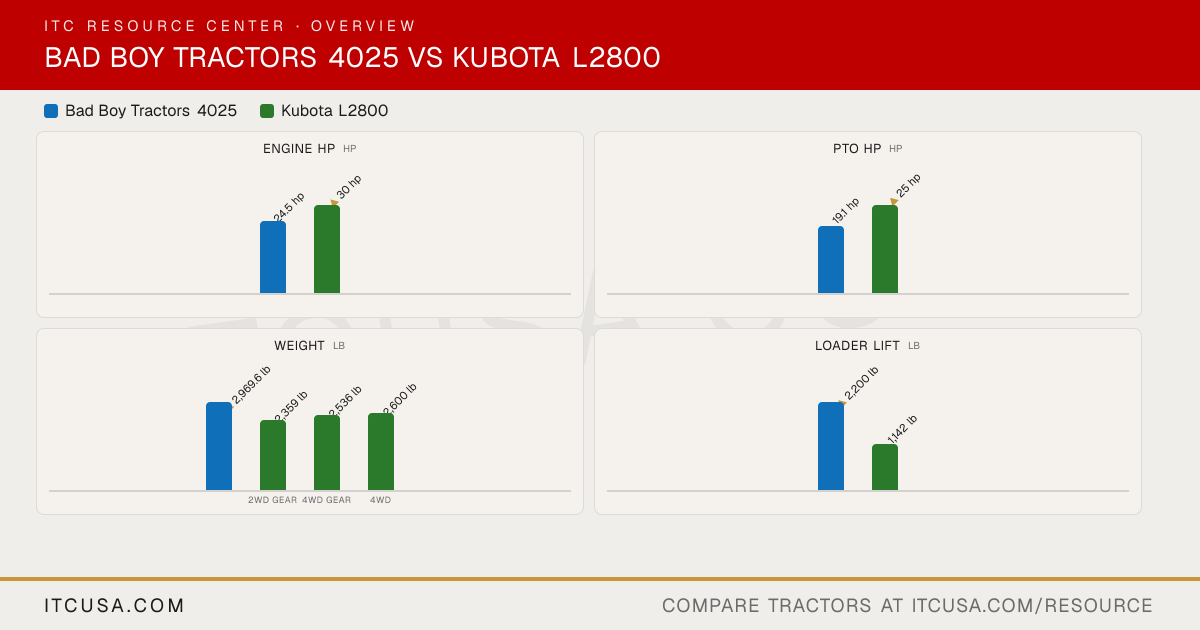

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	KubotaL2800

▶Engine
Engine Manufacturer	TYM	Kubota
Engine Model	A1700N6-BUTR_3	Not Published
Engine Type	Vertical, 4-stroke, water-cooled diesel	Not Published
No. of Cylinders	3	3
Displacement	104.7 in³	91.5 in³
Rated Engine Speed	2100 rpm	2800 rpm
Engine Power (Gross)	24.5 hp	30 hp
PTO Power	19.1 hp	F (2WD gear), DT (4WD gear): 25 hp; HST (4WD): 23.5 hp
Engine Emissions Constraints	Not Published	Tier 2
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry	Not Published
Fuel System	Not Published	Indirect injection (E-TVCS)
Alternator	50 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Not Published
Implement Flow	7.5 gpm	6.5 gpm
Steering Flow	4 gpm	4.0 gpm
Total Hydraulic Flow	11.5 gpm	10.5 gpm (6.5 + 4.0, computed)
Overall Hydraulic Pump Flow	11.5 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	2	Up to 3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	9.0 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	Manual: 8.98 gal; HST: 9.77 gal	7.3 gal
Front Axle Fluid Capacity	Not Published	4.8 qt
▶PTO & Hitch
PTO Type	Independent	F (2WD gear), DT (4WD gear): transmission-driven, live-continuous running; HST (4WD): live-continuous with overrunning clutch
PTO Rear	533 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	1998 lb
Hitch Lift Capacity (at 24”)	2,425 lb	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Not Published
No. of Speeds	3 range (A/B/C)	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range
Max Travel Speed (Forward)	Not Published	F (2WD gear), DT (4WD gear): 13.7 mph; HST (4WD): 14.7 mph
Max Travel Speed (Reverse)	Not Published	F (2WD gear), DT (4WD gear): 4.9 mph; HST (4WD): 13.2 mph
Clutch	None (HST)	F (2WD gear), DT (4WD gear): dry-type single stage; HST (4WD): dry-type single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock standard
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Two-post ROPS (foldable ROPS optional)
Steering	Fully hydraulic power steering	Integral type power steering
Brakes	Wet multi-disc	Wet disc type
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (w/o 3P) (without 3-point hitch)
Overall Width	56.7 in	51.4 in
Wheelbase	65.7 in	F (2WD): 63.4 in; DT (4WD), HST (4WD): 63.3 in
Ground Clearance	15 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	Not Published	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (w/brake) (with brake applied)
Height to Top of ROPS	96.85 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,969.6 lb	F (2WD gear): 2359 lb; DT (4WD gear): 2536 lb; HST (4WD): 2600 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (8.0-16 / 12.4-24 standard), R4 Industrial (25x8.50-14 / 15-19.5)	F (2WD gear): 5-15 front, 11.2-24 rear; DT (4WD gear), HST (4WD): 7-16 front, 11.2-24 rear
R1 Agricultural - Front	8.0-16	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16
R1 Agricultural - Rear	12.4-24	11.2-24
R3 Turf - Front	Not Published	2WD: 23x8.50-12; 4WD: 25x8.50-14
R3 Turf - Rear	Not Published	13.6-16
R4 Industrial - Front	25x8.50-14	27x8.50-15 (4WD)
R4 Industrial - Rear	15-19.5	15-19.5 R4 (4WD)
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	LA463
Loader Lift Height	104 in	LA463: 95.3 in
Loader Lift Capacity (Full Height)	2,200 lb	LA463: 1142 lb
Loader Breakout Force	3,660 lbf	LA463: 1858 lbf (at 19.7 in) (19.7 in forward of pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Kubota dealer near you→

Bad Boy Tractors 4025 vs Kubota L2800: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the Kubota L2800?

The Kubota L2800 leads on engine hp at 30 hp hp, compared to 24.5 hp hp for the Bad Boy Tractors 4025.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the Kubota L2800?

The Kubota L2800 leads on pto hp at 25 hp hp, compared to 19.1 hp hp for the Bad Boy Tractors 4025.

Which is heavier, the Bad Boy Tractors 4025 or the Kubota L2800?

The Bad Boy Tractors 4025 leads on weight at 2,969.6 lb lb, compared to 2,600 lb lb for the Kubota L2800.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the Kubota L2800?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 1,142 lb lb for the Kubota L2800.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the Kubota L2800?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,435 lb lb for the Kubota L2800.
