Kubota L3302 vs John Deere 3035D | Side-by-side comparison | ITC Resource Center
Compare Tractors

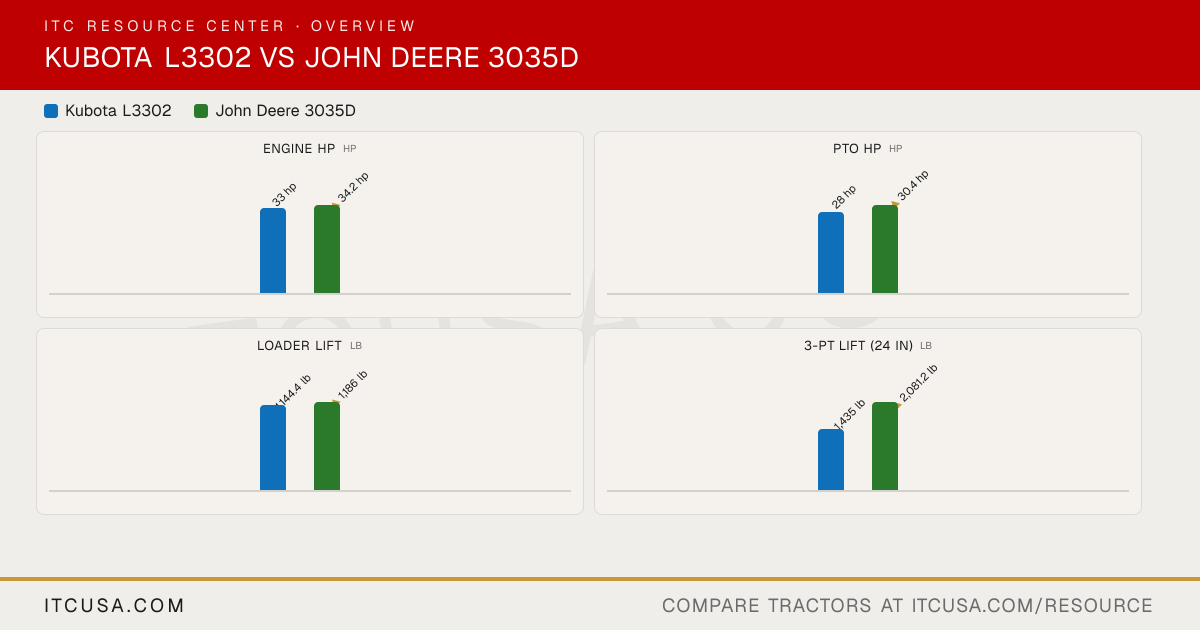

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow
6.3 gpm
4.8 gpm
Steering Flow
3.8 gpm
3.6 gpm
Total Hydraulic Flow
10.1 gpm (6.3 + 3.8, computed)
Not Published
Overall Hydraulic Pump Flow
10.1 gpm (6.3 + 3.8, computed)
10.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Up to two (optional)
Fuel Tank Capacity
11.1 gal
10.0 gal
Coolant Capacity
6.3 qt
1.2 gal
Crankcase Capacity
7.1 qt
1.1 gal
Transmission / Hydraulic System Capacity
6.9 gal
9.2 gal
Front Axle Fluid Capacity
4.8 qt
1.0 gal
PTO Type
Live independent PTO with hydraulic clutch
Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)
PTO Rear
540 rpm
540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
1998 lb
Not Published
Hitch Lift Capacity (at 24”)
1435 lb
2081.2 lb
Lift Control Type
Position control
Position control
Transmission Type
Hydrostatic transmission (3-range)
8F/8R synchromesh shuttle shift gear transmission
No. of Speeds
3-range
8F/8R
Max Travel Speed (Forward)
14.1 mph
Not Published
Max Travel Speed (Reverse)
12.7 mph
Not Published
Clutch
Not Applicable
Single dry traction clutch
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Differential lock: Yes; limited slip: Not Published
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Power steering
Brakes
Mechanical, wet disc type
Wet disk
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Cast-iron front axle
MFWD (4WD)
Front Axle Rating
Not Published
1940 lb
Drawbar Capacity
730 lb
1102 lb
Overall Length with 3-Point Hitch
108.5 in (without 3-point hitch)
111.2 in
Overall Width
55.1 in
57.3 in
Wheelbase
63.4 in
62.6 in
Ground Clearance
13.4 in
13.0 in
Min. Turn Radius without Brakes
8.2 ft (with brake applied)
6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS
91.7 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
2778 lb
3166 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
7.2-16
7-14
R1 Agricultural - Rear
11.2-24
11.2-24
R3 Turf - Front
25X8.50-14
27X8.5-15
R3 Turf - Rear
13.6-16
41X14-20
R4 Industrial - Front
27X8.50-15
25X8.5-14
R4 Industrial - Rear
15-19.5
15-19.5
Quick Attach Loader System
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Quick-change attachment carrier
Loader Model
LA526
D160
Loader Lift Height
94.8 in
84.0 in
Loader Lift Capacity (Full Height)
1144.4 lb
1,186 lb
Loader Breakout Force
Not Published
1,704 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
