John Deere 3035D vs Kubota L3302

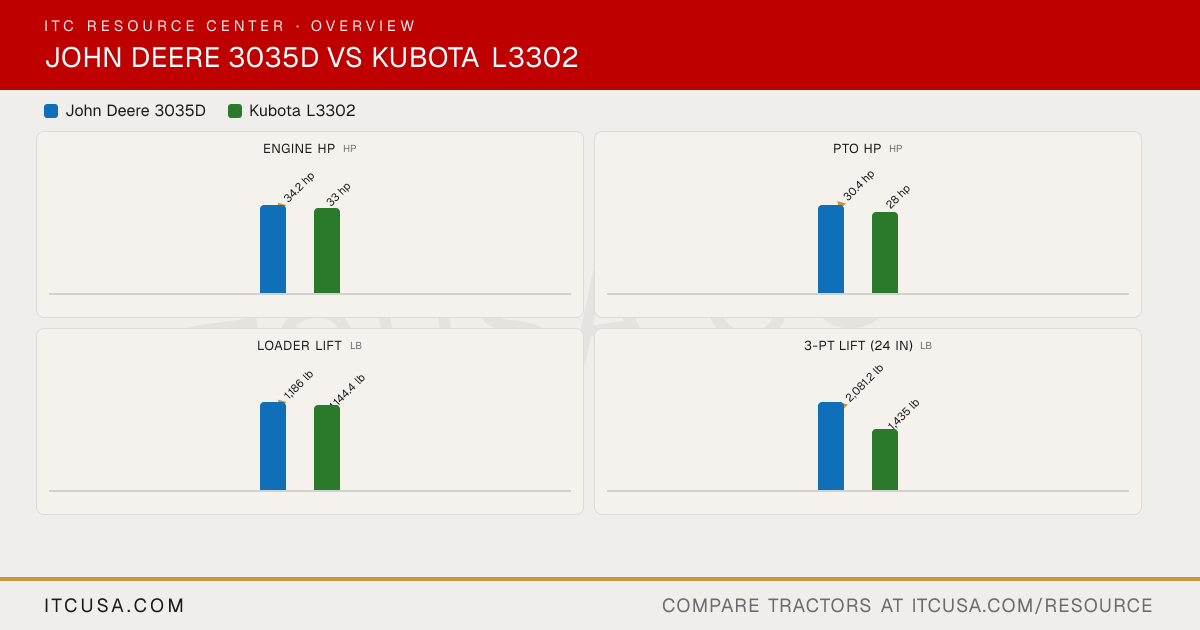

Across 7 measurable specs, the John Deere 3035D leads 6 categories to 1. Machine pages: John Deere 3035D and Kubota L3302.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3035D	KubotaL3302

▶Engine
Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNV88C-KJPT	D1803-CR-E5
Engine Type	4-cycle, inline, water-cooled diesel, naturally aspirated	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	100.1 in³	111.4 in³
Rated Engine Speed	2800 rpm	2700 rpm
Engine Power (Gross)	34.2 hp	33 hp
PTO Power	30.4 hp	26.1 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Liquid	Water-cooled
Air Cleaner	Dual element	Dry type, single element
Fuel System	Direct injection	Direct injection
Alternator	55 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Two single-section external gear pumps, one each side of engine timing-gear cover	Not Published
Implement Flow	4.8 gpm	6.3 gpm
Steering Flow	3.6 gpm	3.8 gpm
Total Hydraulic Flow	Not Published	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	10.3 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to two (optional)	Not Published
▶Fluid Capacity
Fuel Tank Capacity	10.0 gal	11.1 gal
Coolant Capacity	1.2 gal	6.3 qt
Crankcase Capacity	1.1 gal	7.1 qt
Transmission / Hydraulic System Capacity	9.2 gal	6.9 gal
Front Axle Fluid Capacity	1.0 gal	4.8 qt
▶PTO & Hitch
PTO Type	Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)	Live independent PTO with hydraulic clutch
PTO Rear	540 rpm at 2800 rpm engine (rated)	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	Not Published	1998 lb
Hitch Lift Capacity (at 24”)	2081.2 lb	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	8F/8R synchromesh shuttle shift gear transmission	Hydrostatic transmission (3-range)
No. of Speeds	8F/8R	3-range
Max Travel Speed (Forward)	Not Published	14.1 mph
Max Travel Speed (Reverse)	Not Published	12.7 mph
Clutch	Single dry traction clutch	Not Applicable
Differential Lock & Limited Slip Options	Differential lock: Yes; limited slip: Not Published	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Integral type power steering
Brakes	Wet disk	Mechanical, wet disc type
Seat Suspension & Adjustability	Not Published	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	MFWD (4WD)	Cast-iron front axle
Front Axle Rating	1940 lb	Not Published
Drawbar Capacity	1102 lb	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	111.2 in	108.5 in (without 3-point hitch)
Overall Width	57.3 in	55.1 in
Wheelbase	62.6 in	63.4 in
Ground Clearance	13.0 in	13.4 in
Min. Turn Radius without Brakes	6.9 ft (with brakes) (with brake applied)	8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	3166 lb	2778 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-14	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.5-15	25X8.50-14
R3 Turf - Rear	41X14-20	13.6-16
R4 Industrial - Front	25X8.5-14	27X8.50-15
R4 Industrial - Rear	15-19.5	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quick-change attachment carrier	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	D160	LA526
Loader Lift Height	84.0 in	94.8 in
Loader Lift Capacity (Full Height)	1,186 lb	1144.4 lb
Loader Breakout Force	1,704 lb	Not Published
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a John Deere dealer near you→Find a Kubota dealer near you→

John Deere 3035D vs Kubota L3302: Quick Answers

Which has more horsepower, the John Deere 3035D or the Kubota L3302?

The John Deere 3035D leads on engine hp at 34.2 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the John Deere 3035D or the Kubota L3302?

The John Deere 3035D leads on pto hp at 30.4 hp hp, compared to 26.1 hp hp for the Kubota L3302.

Which is heavier, the John Deere 3035D or the Kubota L3302?

The John Deere 3035D leads on weight at 3,166 lb lb, compared to 2,778 lb lb for the Kubota L3302.

Which has more loader lift capacity, the John Deere 3035D or the Kubota L3302?

The John Deere 3035D leads on loader lift at 1,186 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the John Deere 3035D or the Kubota L3302?

The John Deere 3035D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 1,435 lb lb for the Kubota L3302.
