Bad Boy Tractors 4035 vs Kubota L3302

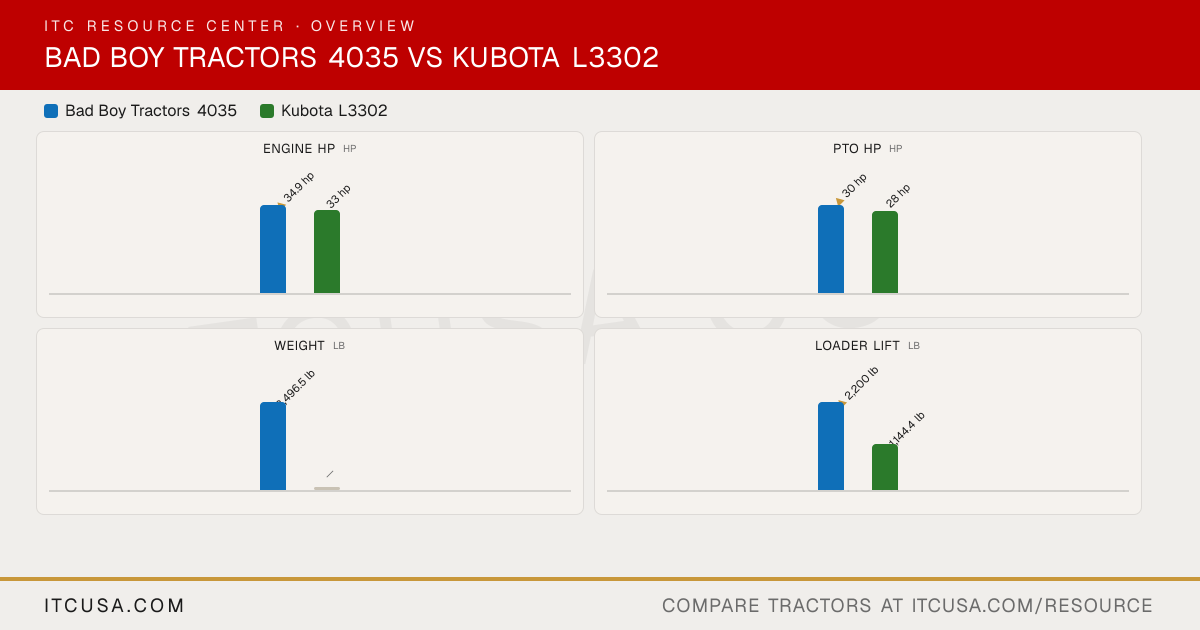

Across 7 measurable specs, the Bad Boy Tractors 4035 leads 7 categories to 0. Machine pages: Bad Boy Tractors 4035 and Kubota L3302.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	KubotaL3302

▶Engine
PTO Power	30 hp	28 hp
Alternator	50 A, 12 V	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	3 Cylinder, Water-Cooled, Diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System	Diesel fuel	Direct injection
Displacement	104.7 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Water cooled	Water-cooled
Engine Manufacturer	A1700N4-BUTC_4	Kubota
Engine Power (Gross)	34.9 hp	33 hp
Engine Emissions Constraints	EPA Final Tier4	Not Published
▶Weight
Tractor Weight (Base)	3,496.5 lb (3,497 lbs) for ROPS MODEL; 3,728 lb (3,728 lbs) for CABIN MODEL	—
Weight with ROPS and Loader	3163 lbs	Not Published
Weight with Cab and Loader	3,728 lbs	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year powertrain warranty	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶Hydraulics
Pump Type	Not Published	Not Published
Steering Flow	4.4 gpm	3.8 gpm
Implement Flow	8.2 gpm	6.3 gpm
Total Hydraulic Flow	12.6 gpm (4.4+8.2)	10.1 gpm
Hydraulic System Type	Open Center	Not Published
System Operating Pressure	180 - 407.9 lbf/cm² for control valve	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.6 gpm	10.1 gpm
No. of Optional Remote Valves	Optional (up to 2)	Not Published
No. of Standard Remote Valves	Not Published	Not Published
▶PTO & Hitch
PTO Rear	540 RPM	540 rpm
PTO Type	Independent	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch
Lift Control Type	Position Control	Position control
Hitch Lift Capacity	3,306.9 lb	1998 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Cat 1	SAE Category I
Hitch Lift Capacity (at 24”)	2,425 lb	1435 lb
▶Tire Options
R3 Turf - Rear	Not Published	13.6-16
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	Std (manual): 8.0-16 / 12.4-24; IND (website): 28X8.50-15 / 43X16.00-20	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	43X16.00-20	15-19.5
R4 Industrial - Front	28X8.50-15	27X8.50-15
R1 Agricultural - Rear	12.4-24 6PR	11.2-24
R1 Agricultural - Front	8.0-16 4PR	7.2-16
▶Fluid Capacity
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Fuel Tank Capacity	7.13 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	9.77 u.s. gal (37 ℓ) HST	Not Published
▶Loader & Attachments
Loader Lift Height	104 in	94.3 in
Loader Breakout Force	3,660 lb	Not Published
Quick Attach Loader System	SSQA	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	1144.4 lb
▶Transmission & Drivetrain
Clutch	None (HST)	DT (4WD): Dry type single stage; HST (4WD): Not Applicable
No. of Speeds	3 Range	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Transmission Type	HST (3-range)	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	19.08 mph (range C)	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	19.08 mph (range C)	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph
Differential Lock & Limited Slip Options	Differential lock	Not Published
▶Chassis, Steering & Controls
Brakes	Wet multi-disc	Mechanical, wet disc type
Steering	Fully hydraulic power steering	Integral type power steering
Frame Type	Not Published	Not Published
Front Axle Type	Cast Iron	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published
▶Dimensions & Maneuverability
Wheelbase	65.7 in	63.4 in
Overall Width	56.7 in	55.1 in
Overall Length	134.88 in.	—
Ground Clearance	15 in	13.4 in
Height to Top of ROPS	96.85 in	91.7 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	134.88 in	108.5 in
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Bad Boy Tractors 4035 vs Kubota L3302: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the Kubota L3302?

The Bad Boy Tractors 4035 leads on engine hp at 34.9 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the Kubota L3302?

The Bad Boy Tractors 4035 leads on pto hp at 30 hp hp, compared to 28 hp hp for the Kubota L3302.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the Kubota L3302?

The Bad Boy Tractors 4035 leads on loader lift at 2,200 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the Kubota L3302?

The Bad Boy Tractors 4035 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,435 lb lb for the Kubota L3302.
