Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaL3560LE

—

KubotaL3302

Comparison loaded for 2 tractors.

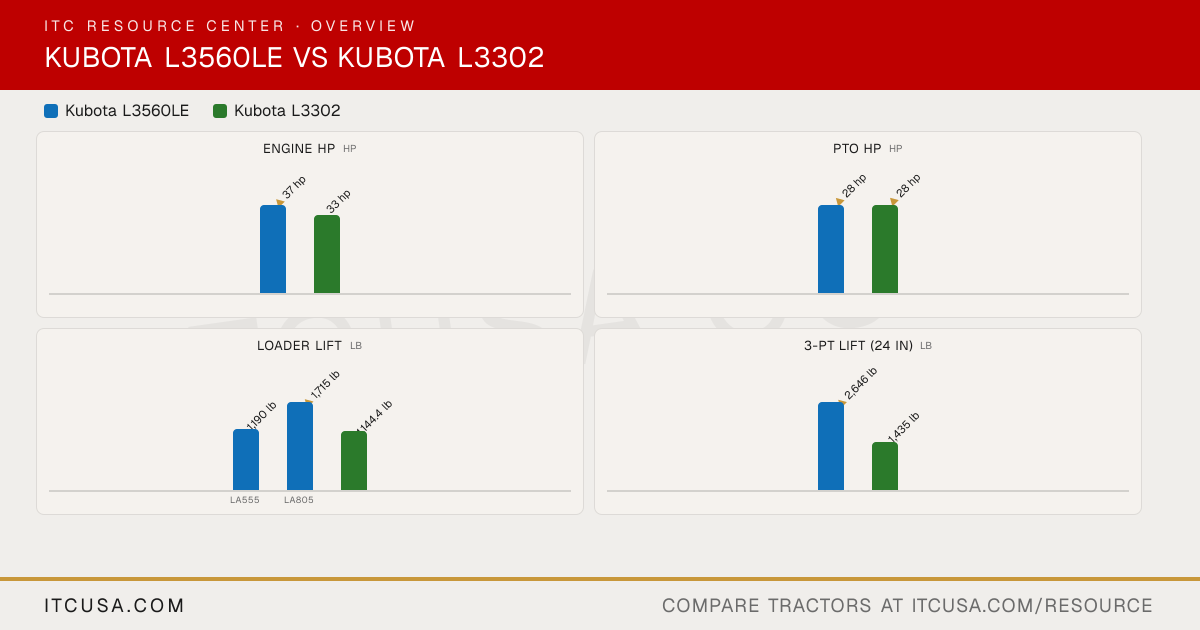

The headline numbers at a glance.

Kubota L3560LEKubota L3302

Engine HPhp

▲37 hp

33 hp

PTO HPhp

▲28 hp

Weightlb

—

Loader Liftlb

1,190 lb

▲1,715 lb

1,144.4 lb

LA555LA805

3-Pt Lift (24 in)lb

▲2,646 lb

1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560LE	KubotaL3302


PTO Power	28 hp	28 hp
Alternator	40 A, 12 V	Not Published
Air Cleaner	Dry paper, dual element	Not Published
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System	Electronic CRS (Common Rail System)	Direct injection
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Water-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	37 hp	33 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Not Published
Steering Flow	4.7 gpm	3.8 gpm
Implement Flow	8.1 gpm	6.3 gpm
Total Hydraulic Flow	12.8 gpm	10.1 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.8 gpm	10.1 gpm
No. of Optional Remote Valves	Optional, up to 3	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	1 speed: 540 rpm	540 rpm
PTO Type	Independent	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	1998 lb
Mid-PTO Availability	Optional	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity (at 24”)	2,646 lb	1435 lb

R3 Turf - Rear	Not Published	13.6-16
R3 Turf - Front	Not Published	25X8.50-14
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	Not Published	15-19.5
R4 Industrial - Front	Not Published	27X8.50-15
R1 Agricultural - Rear	12.4-24	11.2-24
R1 Agricultural - Front	7.0-16	7.2-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	94.3 in
Loader Breakout Force	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)	Not Published
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	1144.4 lb

Clutch	N/A	DT (4WD): Dry type single stage; HST (4WD): Not Applicable
No. of Speeds	3 ranges	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Transmission Type	Hydrostatic (HST Plus)	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	16.5 mph	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	14.9 mph	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc type	Mechanical, wet disc type
Steering	Hydrostatic power steering	Integral type power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	71.1 in	63.4 in
Overall Width	59.8 in	55.1 in
Ground Clearance	13.5 in	13.4 in
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.2 in; HSTC-LE (4WD, CAB): Not Applicable	91.7 in
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	Not Applicable
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 90.6 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	Not Published
Overall Length with 3-Point Hitch	Not Published	108.5 in
