Which has more horsepower, the Kubota L3302 or the Kubota L3560LE?

The Kubota L3560LE leads on engine hp at 37 hp hp, compared to 33 hp hp for the Kubota L3302.

Which has more PTO horsepower, the Kubota L3302 or the Kubota L3560LE?

They are effectively tied: both machines are rated at 28 hp hp for pto hp.

Which has more loader lift capacity, the Kubota L3302 or the Kubota L3560LE?

The Kubota L3560LE leads on loader lift at 1,715 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.

Which has more three-point hitch lift capacity, the Kubota L3302 or the Kubota L3560LE?

The Kubota L3560LE leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,435 lb lb for the Kubota L3302.

Kubota L3302 vs Kubota L3560LE

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Kubota L3560LE leads 6 categories to 0 (1 tied). Machine pages: Kubota L3302 and Kubota L3560LE.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Kubota L3302	Kubota L3560LE
Engine HP (hp)	33 hp	▲ 37 hp
PTO HP (hp)	28 hp	28 hp
Loader Lift (lb)	1,144.4 lb	▲ 1,715 lb
3-Pt Lift (24 in) (lb)	1,435 lb	▲ 2,646 lb
Lift Height (in)	94.3 in	▲ 104.7 in
Breakout Force (lbf)	—	2,549 lbf
Hydraulic Flow (gpm)	10.1 gpm	▲ 12.8 gpm
Travel Speed (mph)	13.2 mph	▲ 16.5 mph

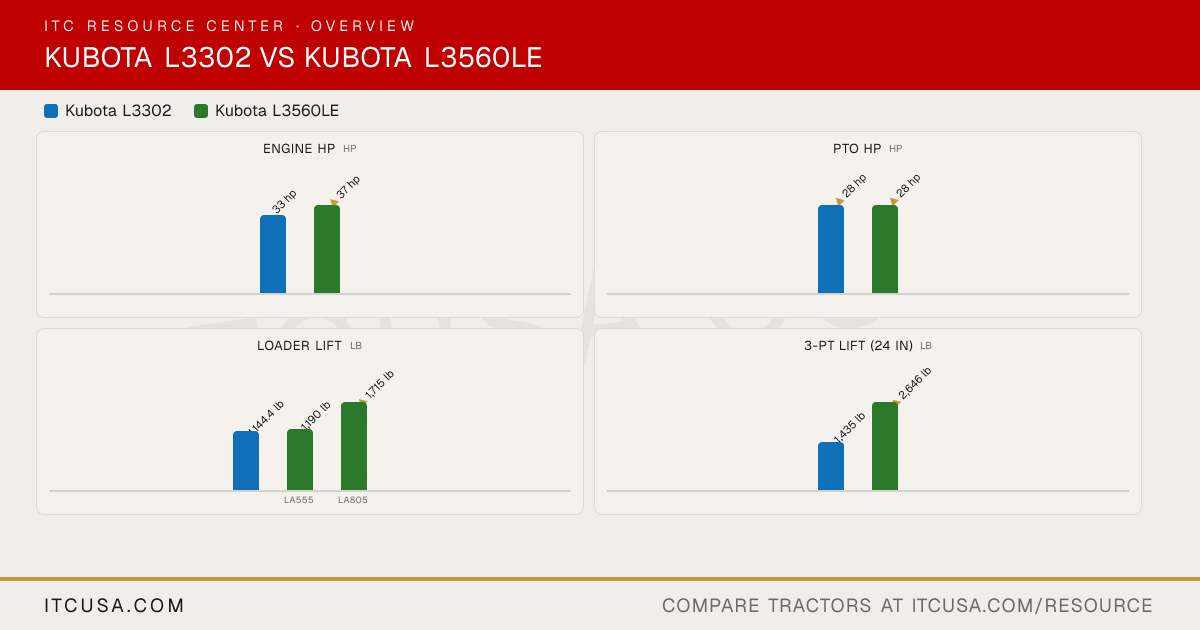

The headline numbers at a glance.

Kubota L3302Kubota L3560LE

Engine HPhp

33 hp

▲37 hp

PTO HPhp

▲28 hp

Weightlb

—

Loader Liftlb

1,144.4 lb

1,190 lb

▲1,715 lb

LA555LA805

3-Pt Lift (24 in)lb

1,435 lb

▲2,646 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3302	KubotaL3560LE


PTO Power	28 hp	28 hp
Alternator	Not Published	40 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Direct injection	Electronic CRS (Common Rail System)
Displacement	111.4 in³	111.4 in³
No. of Cylinders	3	3
Rated Engine Speed	2700 rpm	2600 rpm
Cooling System Type	Water-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	33 hp	37 hp
Engine Emissions Constraints	Not Published	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Not Published
Steering Flow	3.8 gpm	4.7 gpm
Implement Flow	6.3 gpm	8.1 gpm
Total Hydraulic Flow	10.1 gpm	12.8 gpm
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	10.1 gpm	12.8 gpm
No. of Optional Remote Valves	Not Published	Optional, up to 3
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	1 speed: 540 rpm
PTO Type	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	1998 lb	Not Published
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	SAE Category I	Category I
Hitch Lift Capacity (at 24”)	1435 lb	2,646 lb

R3 Turf - Rear	13.6-16	Not Published
R3 Turf - Front	25X8.50-14	Not Published
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear	15-19.5	Not Published
R4 Industrial - Front	27X8.50-15	Not Published
R1 Agricultural - Rear	11.2-24	12.4-24
R1 Agricultural - Front	7.2-16	7.0-16

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	94.3 in	LA555: 96.4 in; LA805: 104.7 in
Loader Breakout Force	Not Published	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)
Quick Attach Loader System	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	1144.4 lb	LA555: 1190 lb; LA805: 1715 lb

Clutch	DT (4WD): Dry type single stage; HST (4WD): Not Applicable	N/A
No. of Speeds	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	3 ranges
Transmission Type	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	Hydrostatic (HST Plus)
Max Travel Speed (Forward)	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph	16.5 mph
Max Travel Speed (Reverse)	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph	14.9 mph
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Mechanical, wet disc type	Wet disc type
Steering	Integral type power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	63.4 in	71.1 in
Overall Width	55.1 in	59.8 in
Ground Clearance	13.4 in	13.5 in
Height to Top of ROPS	91.7 in	HST-LE (4WD, ROPS): 97.2 in; HSTC-LE (4WD, CAB): Not Applicable
Height to Top of Cab Model	Not Applicable	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published
Height to Top of ROPS (folded)	Not Published	HST-LE (4WD, ROPS): 90.6 in; HSTC-LE (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	Not Published	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	108.5 in	Not Published

Kubota L3302 vs Kubota L3560LE: Quick Answers

Which has more horsepower, the Kubota L3302 or the Kubota L3560LE?: The Kubota L3560LE leads on engine hp at 37 hp hp, compared to 33 hp hp for the Kubota L3302.
Which has more PTO horsepower, the Kubota L3302 or the Kubota L3560LE?: They are effectively tied: both machines are rated at 28 hp hp for pto hp.
Which has more loader lift capacity, the Kubota L3302 or the Kubota L3560LE?: The Kubota L3560LE leads on loader lift at 1,715 lb lb, compared to 1,144.4 lb lb for the Kubota L3302.
Which has more three-point hitch lift capacity, the Kubota L3302 or the Kubota L3560LE?: The Kubota L3560LE leads on 3-pt lift (24 in) at 2,646 lb lb, compared to 1,435 lb lb for the Kubota L3302.
