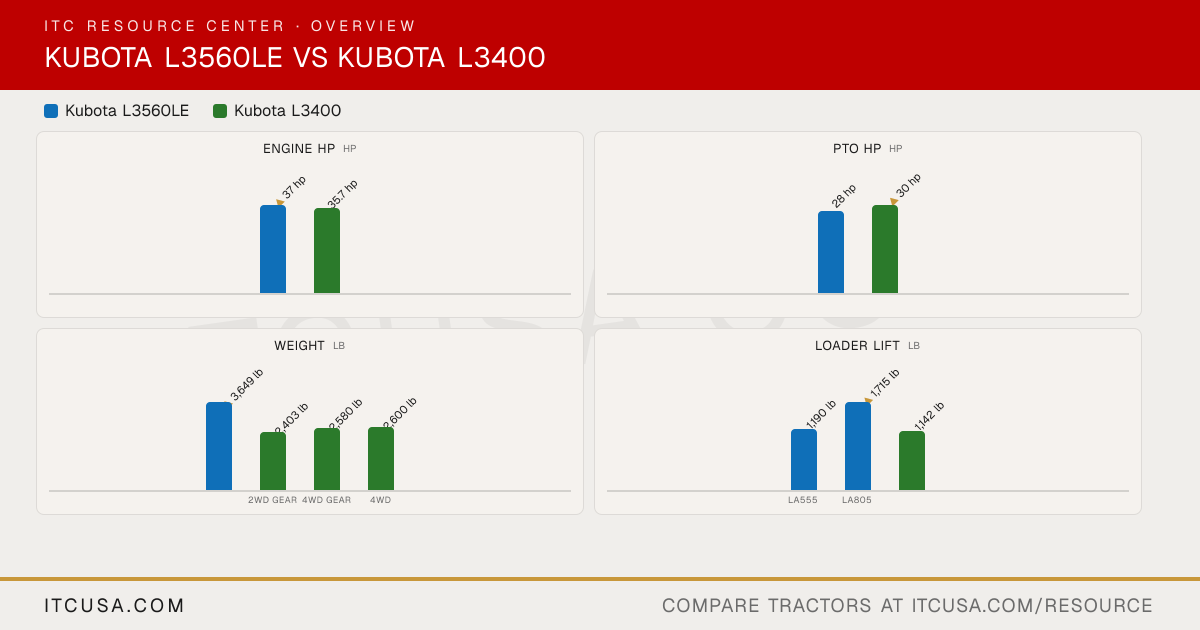

▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1803-CR-E4-GL2 Not Published Engine Type Naturally aspirated, multi-valve, liquid-cooled diesel Indirect injection, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2700 rpm Engine Power (Gross) 37 hp 35.7 hp PTO Power 28 hp F (2WD gear), DT (4WD gear): 30 hp; HST (4WD): 28.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element Not Published Fuel System Electronic CRS (Common Rail System) Indirect injection Alternator ROPS: 40 A, 12 V; Cab: 60 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Not Published Implement Flow 8.1 gpm 6.3 gpm Steering Flow 4.7 gpm 3.8 gpm Total Hydraulic Flow 12.8 gpm 10.1 gpm (6.3 + 3.8, computed) Overall Hydraulic Pump Flow 12.8 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) Not Published No. of Optional Remote Valves Optional, up to 3 Up to 3 ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 9.0 gal Coolant Capacity 7.9 qt Not Published Crankcase Capacity 7.1 qt Not Published Transmission / Hydraulic System Capacity 11.1 gal F (2WD): 7.1 gal; DT (4WD): 7.3 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity 6.9 qt 4.8 qt ▶ PTO & HitchPTO Type Independent F (2WD gear), DT (4WD gear): live-continuous running; HST (4WD): live-continuous with overrunning clutch PTO Rear 1 speed: 540 rpm 540 rpm Mid-PTO Availability Optional Not Published Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,748 lb 1,998 lb Hitch Lift Capacity (at 24”) 2,646 lb 1,435 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST Plus) F (2WD gear), DT (4WD gear): sliding gear and constant mesh, 8F/4R; HST (4WD): hydrostatic transmission, 3-range No. of Speeds 3 ranges F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range Max Travel Speed (Forward) 16.5 mph F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph Max Travel Speed (Reverse) 14.9 mph F (2WD gear), DT (4WD gear): 4.7 mph; HST (4WD): 12.7 mph Clutch N/A F (2WD gear), DT (4WD gear): dry-type, dual-stage; HST (4WD): dry-type, single-stage Differential Lock & Limited Slip Options Rear differential lock, standard Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Foldable ROPS (standard on all models) Steering Hydrostatic power steering Integral type power steering Brakes Wet disc type Wet disc type Seat Suspension & Adjustability Deluxe suspension seat (standard); Air-Ride seat (optional) Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing 4WD: Bevel gear front axle Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 59.8 in 51.4 in Wheelbase 71.1 in 63.3 in Ground Clearance 13.5 in F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (with brake applied) Height to Top of ROPS 97.2 in 85.0 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 90.6 in (HSTC-LE cab) Not Published Overall Length 115.0 in (without 3-point hitch) F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,649 lb F (2WD gear): 2,403 lb; DT (4WD gear): 2,580 lb; HST (4WD): 2,600 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf or Industrial tires (options) AG standard; turf and industrial optional R1 Agricultural - Front 7.0-16 F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16 R1 Agricultural - Rear 12.4-24 11.2-24 R3 Turf - Front 27x10.50-15 25x8.50-14 (4WD) R3 Turf - Rear 41x18LL-16.1 13.6-16 R4 Industrial - Front 10-16.5 27x8.50-15 (4WD) R4 Industrial - Rear 420/70-24 15-19.5 R4 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LA555: 2-lever mechanical quick coupler (standard); LA805: 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) LA463: quick attach/detach loader (mounting pins and hose couplers from the seat); skid steer-type quick coupler optional Loader Model LA555 or LA805 LA463 Loader Lift Height LA555: 96.4 in; LA805: 104.7 in LA463: 95.3 in (at pivot pin) Loader Lift Capacity (Full Height) LA555: 1,190 lb; LA805: 1,715 lb (at pivot pin) LA463: 1,142 lb (at pivot pin) Loader Breakout Force LA555: 2,030 lb; LA805: 2,549 lb Not Published ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
