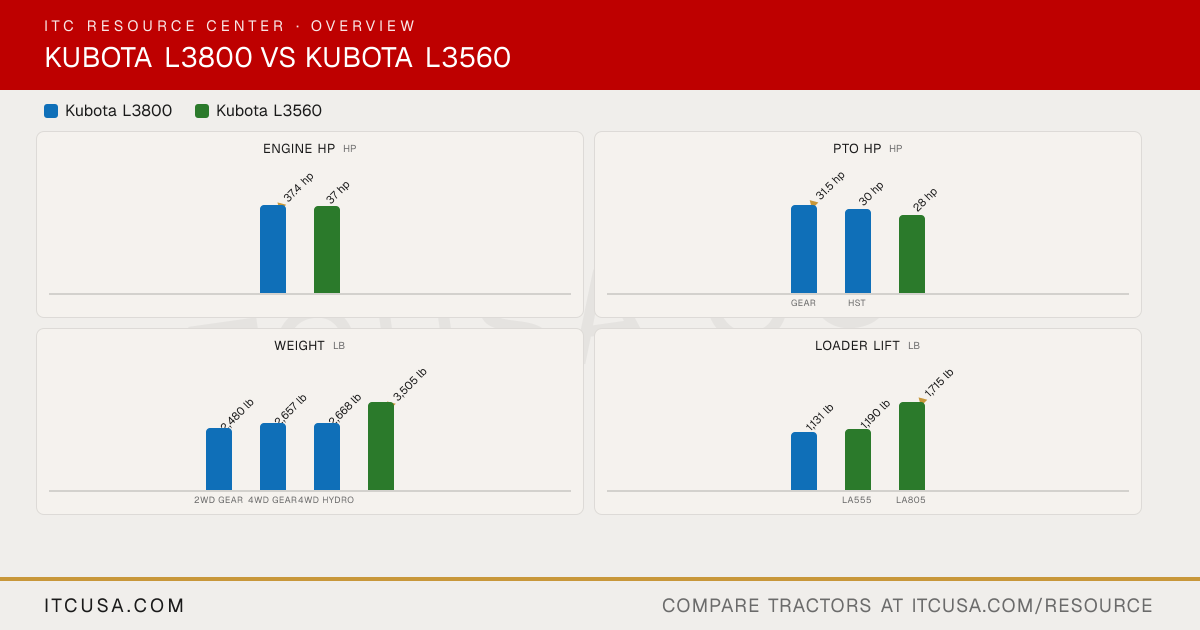

▶ EngineEngine Manufacturer Kubota Kubota Engine Model D1803 D1803-CR-E4-GL2 Engine Type Diesel, 3-cylinder, liquid-cooled Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 37.4 hp 37 hp PTO Power Gear: 31.5 hp; HST: 30 hp 28 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry paper, dual element Fuel System Not Published Electronic CRS (Common Rail System) Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Tandem pump - gear type Implement Flow 6.3 gpm 8.1 gpm Steering Flow Not Published 4.7 gpm Total Hydraulic Flow Not Published 12.8 gpm Overall Hydraulic Pump Flow Not Published 12.8 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None standard (up to 3 optional) No. of Optional Remote Valves Not Published Optional, up to 3 (double-acting valve or float detent valve options, any position) ▶ Fluid CapacityFuel Tank Capacity 10 gal 13.5 gal Coolant Capacity Not Published 7.9 qt Crankcase Capacity Not Published 7.1 qt Transmission / Hydraulic System Capacity Gear: 7.1 gal; HST: 6.2 gal 11.1 gal Front Axle Fluid Capacity Not Published 6.9 qt ▶ PTO & HitchPTO Type Not Published Live independent (hydraulic clutch) PTO Rear 540 rpm 540 rpm @ 2476 engine rpm Mid-PTO Availability Not Published Optional Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity Not Published 3,750 lb Hitch Lift Capacity (at 24”) Not Published 2646 lb Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type Gear: 8-speed constant mesh; HST: hydrostatic Hydrostatic No. of Speeds Gear: 8F/4R; HST: infinite (3-range) 3-Range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) Not Published 16.5 mph Max Travel Speed (Reverse) Not Published 14.9 mph Clutch Not Published Not Published Differential Lock & Limited Slip Options Rear differential lock standard Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc Wet disc type, mechanically activated Seat Suspension & Adjustability Not Published Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Front Axle Type Bevel gear front axle 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD: 110.6 in; 4WD: 106.3 in 115.0 in (without 3-point hitch) Overall Width 55.1 in 59.8 in Wheelbase 63.3 in 71.1 in Ground Clearance 2WD: 13.6 in; 4WD: 13.4 in 13.5 in Min. Turn Radius without Brakes Not Published 8.9 ft (with brake applied) Height to Top of ROPS 91.7 in 97.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2WD gear: 2480 lb; 4WD gear: 2657 lb; 4WD hydro: 2668 lb 3505 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 2WD: 5.00-15 front; 4WD: 7.2-16 front; 11.2-24 rear R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front 2WD: 5.00-15; 4WD: 7.2-16 7.0-16 R1 Agricultural - Rear 11.2-24 12.4-24 R3 Turf - Front 2WD: 23x8.50-12; 4WD: 25x8.50-14 27x10.50-15 R3 Turf - Rear 13.6-16 41x18LL-16.1 R4 Industrial - Front 27x8.50-15 (4WD) 10-16.5 R4 Industrial - Rear 15-19.5 420/70-24 ▶ Loader & AttachmentsQuick Attach Loader System LA524 quick attach loader LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Loader Model LA524 LA555 or LA805 Loader Lift Height LA524: 94.3 in LA555: 96.4 in; LA805: 104.7 in Loader Lift Capacity (Full Height) LA524: 1131 lb (at pin) LA555: 1190 lb; LA805: 1715 lb Loader Breakout Force LA524: 2462 lbf (at pin) LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
